roman_tyk

Teoretycznie w VCDS w basic settings A5 sa ustawienia offsetu do kalibracji matrixow, ale z urzadzenia trzeba zmierzyc katy zeby je potem wpisac. Jutro dzwonie do innej firmy. Koszt we Wroclawiu za te usluge to okolo 500zl. Poprzedni fachowcy zwrocili pieniadze. dzieki wszystkim za uwage

dzwonilem do nich, powiedizeli ze ich urzadzenie do tej kamery pokazywalo tylko "statyczna kalibracje" i taka zrobili... dziwne bo vcds posiada w basic setting calibration target do matrixow i offsety. mozliwe ze moja kamera jednak nie obsluguje matrixow?

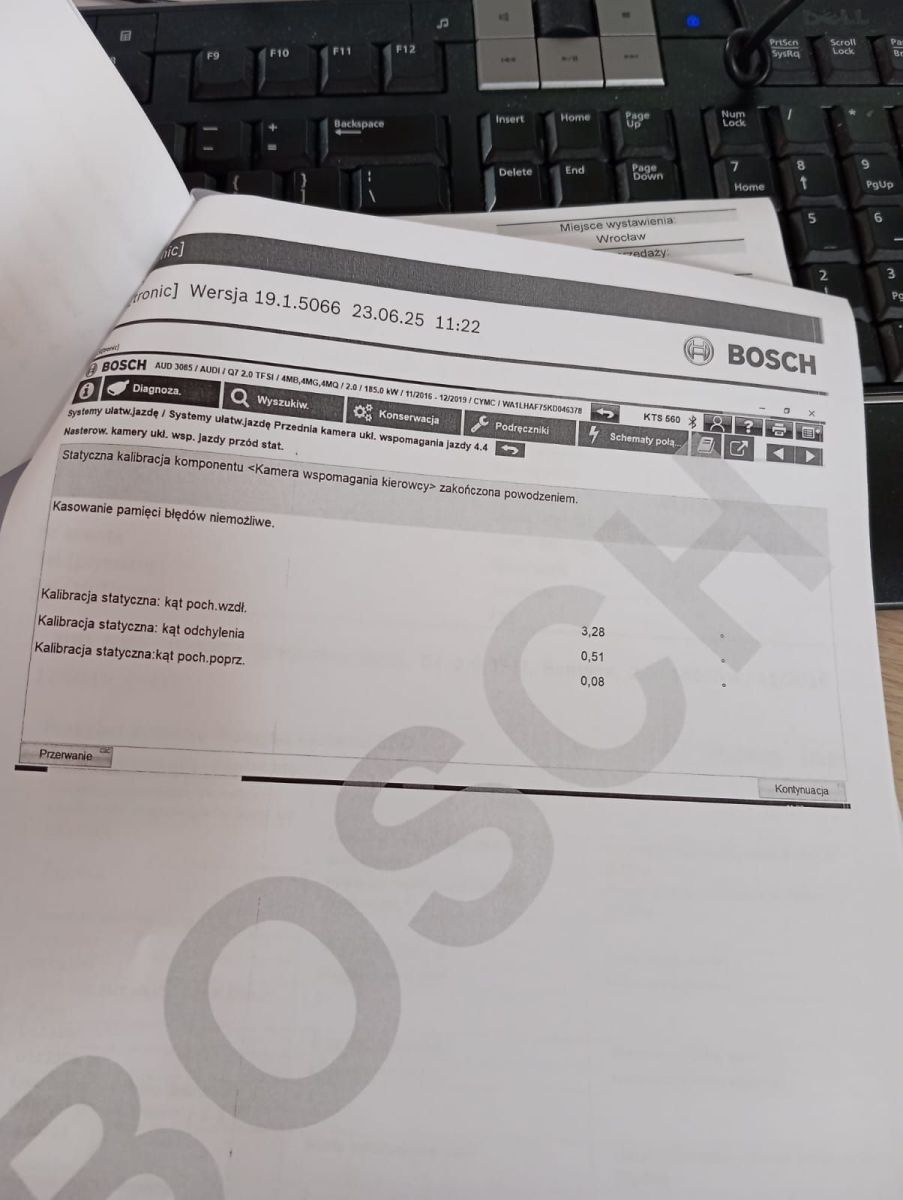

dali taki dokument, ale jak pisze katy dotycza kalibracji statycznej kamery

tak samo audi q7 4m. Wszedlem w basic w grupie A5 i tam sa opcje Matrix light calibration / offset calibration itd Monday,23,June,2025,11:39:21:16365 VCDS -- Windows Based VAG/VAS Emulator Running on Windows 7 x86 VCDS Version: 24.7.1.0 HEX-V2 CB: 0.4656.4 Data version: 20240919 DS356.3 www.Ross-Tech.com VIN: WA1LHAF75KD046378 License Plate: Chassis Type: F7-AU73 (80A) Scan: 01 02 03 08 09 15 16 17 19 28 29 36 39 3C 42 44 46 47 50 52 5F 6C 6D 75 81 A5 BB BC CA CF D6 D7 VIN: WA1LHAF75KD046378 Mileage: 92555km-57511miles 01-Engine -- Status: OK 0000 02-Auto Trans -- Status: OK 0000 03-ABS Brakes -- Status: OK 0000 08-Auto HVAC -- Status: OK 0000 09-Cent. Elect. -- Status: Malfunction 0010 15-Airbags -- Status: OK 0000 16-Steering wheel -- Status: OK 0000 17-Instruments -- Status: OK 0000 19-CAN Gateway -- Status: OK 0000 28-HVAC, Rear -- Status: OK 0000 29-Left Light -- Status: OK 0000 36-Seat Mem. Drvr -- Status: OK 0000 39-Right Light -- Status: OK 0000 3C-Lane Change -- Status: OK 0000 42-Door Elect, Driver -- Status: Malfunction 0010 44-Steering Assist -- Status: OK 0000 46-Central Conv. -- Status: Malfunction 0010 47-Sound System -- Status: OK 0000 50-Seat Adj. 3rd row -- Status: OK 0000 52-Door Elect, Pass. -- Status: OK 0000 5F-Information Electr. -- Status: Malfunction 0010 6C-Back-up Cam. -- Status: OK 0000 6D-Trunk Elect. -- Status: OK 0000 75-Telematics -- Status: Malfunction 0010 81-Gear Shift -- Status: OK 0000 A5-Frt Sens. Drv. Assist -- Status: Malfunction 0010 BB-Door Rear Drv -- Status: OK 0000 BC-Door Rear Pass -- Status: OK 0000 CA-Sunroof -- Status: OK 0000 CF-Lane Chge Asst 2 -- Status: OK 0000 D6-Light Ctrl Left 2 -- Status: OK 0000 D7-Light Ctrl Right 2 -- Status: OK 0000 ------------------------------------------------------------------------------- Address 01: Engine (J623-CYMC) Labels:. 06K-907-425-V2.clb Part No SW: 4M0 906 259 L HW: 06L 907 425 C Component: R4 2.0l TFSI H15 0002 Revision: --H15--- CVN: 0B0F3F35 Coding: 2A2A00322526010E34280000000000000000000000000000 Shop #: WSC 31414 790 00001 ASAM Dataset: EV_ECM20TFS0204M0906259L 001003 ROD: EV_ECM20TFS0204M0906259L.rod VCID: 3C2134ED16E8593A433-8068 VINID: 9D105C61158715B5001060C72019C03BE4 No fault code found. Readiness: 0000 0000 ------------------------------------------------------------------------------- Address 02: Auto Trans (J217) Labels:| 0BK-927-156.clb Part No SW: 4M0 927 158 K HW: 0D5 927 156 H Component: 0D5 20TSIUSA H05 1004 Revision: --H05--- CVN: 33D8EFA8 Coding: 100000 Shop #: WSC 31414 790 00001 ASAM Dataset: EV_TCMALX52011 002010 ROD: EV_TCMALX52011.rod VCID: 3C2134ED16E8593A433-8068 No fault code found. ------------------------------------------------------------------------------- Address 03: ABS Brakes (J104) Labels: 4M0-907-379-V1.clb Part No SW: 4M0 907 379 T HW: 4M0 907 379 T Component: ESP9 Premium H14 0861 Dataset Number: 4M0909504R 0003 CVN: 0C38D2B4 Coding: 28AA409C30A60A9C91A1589800855292E5369A14020C50891A004A49A76C59 Shop #: WSC 31414 790 00001 ASAM Dataset: EV_ESP9BOSCHCMP 004011 ROD: EV_ESP9BOSCHCMP_004_AU73.rod VCID: 48C9583D5230059AD7B-801C No fault code found. ------------------------------------------------------------------------------- Address 08: Auto HVAC (E87) Labels:* None Part No SW: 4M0 820 043 AB HW: 4M0 820 043 AB Component: Klima Zone 4 H52 0112 Coding: 640809015548001110680280800000000000000000000000000000000000 Shop #: WSC 31414 790 00001 ASAM Dataset: EV_AirCondiFrontBHTCAU736 001013 ROD: EV_AirCondiFrontBHTCAU736.rod VCID: 6597B189C5E238F2CCD-8030 Fresh air blower control module (front): Subsystem 1 - Part No SW: 4M1 820 021 C HW: 4M1 820 021 C Component: J126 FLuftV H09 0004 Serial number: 00000000000003714593 Humidity sensor: exterior: Subsystem 2 - Part No SW: 4H0 907 658 A HW: 4H0 907 658 A Component: AQ_Hum_Sensor H02 0007 Serial number: F8E05DA900PAG0MUFU02 No fault code found. ------------------------------------------------------------------------------- Address 09: Cent. Elect. (J519) Labels:* Redir Fail! Part No SW: 8W0 907 063 DG HW: 8W0 907 063 BG Component: BCM1 MLBevo H13 0313 Dataset Number: 4M0909514AC 0062 Coding: 07500363C0280CCD0517871558AE9CB911033D01900000000000000020001A0108430222025709 Shop #: WSC 31414 790 00001 ASAM Dataset: EV_BCM1BOSCHAU736 019008 ROD: EV_BCM1BOSCHAU736_019.rod VCID: 03538F112B96E6C2429-8056 Wiper motor control module: Subsystem 1 - Part No SW: 4M8 955 119 HW: 4N1 955 119 Component: J400FRWISCH 052 0997 Serial number: 904753F0301907401599 Coding: 7DC727 Rain/Light Recognition Sensor: Subsystem 2 - Part No SW: 81A 955 547 A HW: 81A 955 547 Component: G397_RLFS H06 0002 Serial number: 21911085X81A955547A0 Coding: 02006E Light switch: Subsystem 3 - Part No SW: 4M0 941 531 AG HW: 4M0 941 531 AG Component: E1 - LDS H06 0008 Serial number: 28 04 2019 01969184 Garage door opener control module: Subsystem 4 - Part No SW: 4N0 907 410 B HW: 4M0 907 410 A Component: USHL5 H10 0100 Serial number: 0000009600368Z014W02 Coding: 350000 Garage door opener control head: Subsystem 5 - Part No SW: 4M0 959 719 A HW: 4M0 959 719 A Component: GTO BF H01 0010 Serial number: 20190502145115 00878 Automatic dimming interior mirror: Subsystem 6 - Part No SW: 8W0 857 511 B HW: 8W0 857 511 B Component: Y7_Innenspieg H01 0002 Serial number: GX1CE113021923610539 Coding: 010000 Interior Light Module: Subsystem 7 - Part No SW: 4M0 947 135 EF HW: 4M0 947 135 EF Component: Dachmodul H42 0415 Serial number: Q00754900 Coding: 0D0305 Adjustable Steering Column Control Module: Subsystem 8 - Part No SW: 80A 907 705 HW: 80A 907 705 Component: J866-EVLS-SG H03 0100 Serial number: WA137465000067374162 Coding: 0A0100 Control head for driving and comfort functions: Subsystem 9 - Part No SW: 4M0 925 301 K HW: 4M0 925 301 K Component: SL-Q7NF/AU736 H10 0013 Serial number: 00000000000000264014 Blower 1 for left front backrest: Subsystem 10 - Part No SW: 4N0 963 575 A HW: 4N0 963 575 A Component: V512 LLR1SLvL H01 0012 Serial number: Q98BJ12663532 Blower 1 for left front seat cushion: Subsystem 11 - Part No SW: 4N0 963 575 A HW: 4N0 963 575 A Component: V514 LLR1SKvL H01 0012 Serial number: Q98BJ12764158 Blower 1 for right front backrest: Subsystem 12 - Part No SW: 4N0 963 575 A HW: 4N0 963 575 A Component: V516 LLR1SLvR H01 0012 Serial number: Q98BJ134A0262 Blower 1 for right front seat cushion: Subsystem 13 - Part No SW: 4N0 963 575 A HW: 4N0 963 575 A Component: V518 LLR1SKvR H01 0012 Serial number: Q98BJ12764092 2 Faults Found: 67735 - Databus U1123 00 [00001001] - Received Error Message [MxB not available] Confirmed - Tested Since Memory Clear Freeze Frame: Fault Priority: 6 Fault Frequency: 1 Reset counter: 116 Mileage: 91705 km Date: 2025.05.21 Time: 12:34:06 average_Voltage_terminals: 11.50 V Outside air temperature sensor-Resistance: 0.00 kOhm Outside air temperature sensor-Outside air temperature on CAN: 20.00 °C interior_temperature: 22.50 °C Vehicle speed: 0.00 km/h Terminal activation-Terminal 75 status: On Terminal activation-Terminal 15 status signal: On Terminal activation-Terminal 15 via CAN: On Terminal activation-Term 75: qualification: OFF 67737 - Databus U1123 00 [00001001] - Received Error Message [MXB_error-lamp_requested] Confirmed - Tested Since Memory Clear Freeze Frame: Fault Priority: 6 Fault Frequency: 1 Reset counter: 146 Mileage: 92555 km Date: 2025.06.23 Time: 11:33:19 average_Voltage_terminals: 12.20 V Outside air temperature sensor-Resistance: 0.00 kOhm Outside air temperature sensor-Outside air temperature on CAN: 29.50 °C interior_temperature: 27.50 °C Vehicle speed: 0.00 km/h Terminal activation-Terminal 75 status: On Terminal activation-Terminal 15 status signal: On Terminal activation-Terminal 15 via CAN: On Terminal activation-Term 75: qualification: OFF ------------------------------------------------------------------------------- Address 15: Airbags (J234) Labels:| 80A-959-655.clb Part No SW: 4M0 959 655 L HW: 4M0 959 655 L Component: Airbag10.44 H02 0109 Serial number: 003YS001CCX. Dataset Number: 4M0909602AM 0002 Coding: AECCFCC000800000A0F00033D24C00000000 Shop #: WSC 31414 790 00001 ASAM Dataset: EV_AirbaAU10BPAAU736 006016 ROD: EV_AirbaAU10BPAAU736_006.rod VCID: 44D14C0D6E1821FA3B3-8010 Left seat belt tensioner: Subsystem 1 - Part No SW: 4M0 980 945 HW: 4M0 980 945 Component: BeltPretRevFL 205 2040 Serial number: 4M0857705AA147T01309 Coding: 88001B Right seat belt tensioner: Subsystem 2 - Part No SW: 4M0 980 946 HW: 4M0 980 946 Component: BeltPretRevFR 205 2040 Serial number: 4M0857706AA147T01466 Coding: 88001B Seat occupied recognition passenger side: Subsystem 3 - Part No SW: 4M0 959 339 HW: 4M0 959 339 Component: BF-Gewichtss. H11 0022 Serial number: IBH0000J19000BNKLN01 Crash sensor for side airbag: driver side: Subsystem 4 - Part No SW: ----------- HW: 442 061 104 19 Component: SideSensor_Df 1E2 0887 Serial number: 3577Y00A72FFCA64F19X Coding: 2D2D2D Front Passenger's Side Airbag Crash Sensor: Subsystem 5 - Part No SW: ----------- HW: 442 061 104 19 Component: SideSensor_Pf 1E2 0887 Serial number: 3587Y00A92FFCA61242G Coding: 2D2D2D Rear Side Airbag Crash Sensor (on driver's side): Subsystem 6 - Part No SW: ----------- HW: 442 0B1 005 19 Component: SideSensor_Dr 1C7 0148 Serial number: 3517700B3301B094834. Coding: 2D2D2D Passenger side rear thorax airbag crash sensor: Subsystem 7 - Part No SW: ----------- HW: 442 0B1 005 19 Component: SideSensor_Pr 1C7 0148 Serial number: 3527700B1301B09481C% Coding: 2D2D2D Crash sensor for front airbag: driver side: Subsystem 8 - Part No SW: ----------- HW: 442 0C2 906 17 Component: FrontSensor_D 1C5 014A Serial number: 3557500A526FD7B5429S Coding: 2D2D2D Crash sensor for front airbag: front passenger side: Subsystem 9 - Part No SW: ----------- HW: 442 0C2 906 17 Component: FrontSensor_P 1C5 014A Serial number: 3567500A526FD7B1513J Coding: 2D2D2D No fault code found. ------------------------------------------------------------------------------- Address 16: Steering wheel (J527) Labels: 4M0-907-129.clb Part No SW: 4N0 907 129 K HW: 4N0 907 129 K Component: Lenks.Modul H03 0005 ASAM Dataset: EV_SMLSKLOAU736 007012 ROD: EV_SMLSKLOAU736_007_AU49.rod VCID: 392F2DF919DA6C12585-806C No fault code found. ------------------------------------------------------------------------------- Address 17: Instruments (J285) Labels:* Redir Fail!-SRI2 Part No SW: 4M0 920 890 D HW: 4M0 920 890 D Component: FBenUSA H20 0416 Coding: 09E600C12888CF05022369601800000008000000 Shop #: WSC 31414 790 00001 ASAM Dataset: EV_DashBoardAU736 001032 ROD: EV_DashBoardAU736_AU73.rod (VIN: N/A) VCID: 313F15D9C1AAA452E05-8064 No fault code found. ------------------------------------------------------------------------------- Address 19: CAN Gateway (J533) Labels:* None Part No SW: 80A 907 468 C HW: 80A 907 468 A Component: Gateway H05 0207 Serial number: 1HF08057555701 Dataset Number: 4M0909515Q 0093 Coding: 030100010000064029070000005900324C1A0007100000000175078E10000000 Shop #: WSC 31414 790 00001 GVL: 01503C040800000040DC08008002C800100C2000000000000000000000000100 ASAM Dataset: EV_Gatew31xAU65x 003170 ROD: EV_Gatew31xAU65x_AU49.rod VCID: 2E050EA5D094BBAAFD7-807A Multifunction steering wheel control module: Subsystem 1 - Part No SW: 4M0 951 523 A HW: 4M0 951 523 A Component: J453 MFL H06 0004 Serial number: 20190513152630 31538 Battery Monitoring Control Module: Subsystem 2 - Part No SW: 8S0 915 181 C HW: 8S0 915 181 C Component: J367-BDMHella H10 9070 Serial number: 5294121505 No fault code found. ------------------------------------------------------------------------------- Address 28: HVAC, Rear (E265) Labels:* None Part No SW: 4M0 919 158 D HW: 4M0 919 158 D Component: Klima Zone 2 H52 0103 Coding: 000000000000000100800080000000000000000000000000000000000000 Shop #: WSC 31414 790 00001 ASAM Dataset: EV_AirCondiFondBHTCAU736 001013 ROD: EV_AirCondiFondBHTCAU736.rod VCID: 363526C528C4836AB57-8062 No fault code found. ------------------------------------------------------------------------------- Address 29: Left Light (J1018) Labels: 4M0-907-397.clb Part No SW: 4M0 907 397 AB HW: 4M0 907 397 B Component: LCM_MLBevoH05 0024 ASAM Dataset: EV_LCMLeftHELLAAU736 001012 ROD: EV_LCMLeftHELLAAU736_VW48.rod VCID: 77ABEBC16F4EBA626E1-8022 No fault code found. ------------------------------------------------------------------------------- Address 36: Seat Mem. Drvr (J136) Labels:* None Part No SW: 4M4 959 760 HW: 4M4 959 760 Component: MEM-FS 009 0044 Serial number: 00000377136339 Dataset Number: 4M0909856D 0024 Coding: 005C1B000000B0010000010101010000000000000000000000000000000000 Shop #: WSC 31414 790 00001 ASAM Dataset: EV_SCMDriveSideCONTIAU736 006009 ROD: EV_SCMDriveSideCONTIAU736_AU49.rod VCID: 79AFEDF9595AAC12185-802C No fault code found. ------------------------------------------------------------------------------- Address 39: Right Light (J1023) Labels: 4M0-907-397.clb Part No SW: 4M0 907 397 AB HW: 4M0 907 397 B Component: LCM_MLBevoH05 0024 ASAM Dataset: EV_LCMRightHELLAAU736 001012 ROD: EV_LCMLeftHELLAAU736_VW48.rod VCID: 77ABEBC16F4EBA626E1-8022 No fault code found. ------------------------------------------------------------------------------- Address 3C: Lane Change (J769) Labels:| 4M0-907-566.clb Part No SW: 4M0 907 566 E HW: 4M0 907 566 Component: MRR1Rear H22 0430 Revision: -------- Dataset Number: 4M0909535L 0016 Coding: 0E8002 Shop #: WSC 31414 790 00001 ASAM Dataset: EV_RearRadarS1BoschAU736 001022 ROD: EV_RearRadarS1BoschAU736.rod VCID: 372B2BC12FCE7A62AE1-8062 No fault code found. ------------------------------------------------------------------------------- Address 42: Door Elect, Driver (J386) Labels:* None Part No SW: 4M0 959 793 H HW: 4M0 959 793 F Component: TSG FS 009 0130 Serial number: 0000374889777 Dataset Number: 4M0909872J 0036 Coding: 005F8B005E00108000012030 Shop #: WSC 31414 790 00001 ASAM Dataset: EV_DCU2DriveSideMAXHCONT 001005 ROD: EV_DCU2DriveSideMAXHCONT_AU37.rod VCID: 43D34F116B1626C2029-8016 1 Fault Found: 196660 - Motor for Window Regulator B1487 54 [00001001] - Missing Calibration / Basic Setting Confirmed - Tested Since Memory Clear Freeze Frame: Fault Priority: 5 Fault Frequency: 1 Reset counter: 116 Mileage: 91705 km Date: 2025.05.21 Time: 12:35:16 ------------------------------------------------------------------------------- Address 44: Steering Assist (J500) Labels:* None Part No SW: 4N0 909 144 E HW: 4N0 909 144 C Component: EPS_MLBEVO2BS H22 0505 Dataset Number: 4M0909852AA 0006 Coding: 90000001000100 Shop #: WSC 31414 790 00001 ASAM Dataset: EV_EPSVWBSAU426 010017 ROD: EV_EPSVWBSAU426_010.rod VCID: 323D1AD5C4AC9F4A99F-8066 No fault code found. ------------------------------------------------------------------------------- Address 46: Central Conv. (J393) Labels:* None Part No SW: 8W0 907 064 GD HW: 8W0 907 064 DD Component: BCM2 MLBevo 025 0424 Dataset Number: 4M0909501Q 0072 Coding: 01341E00492100C0650BA0006C01180203024000810004502F0400000F04803F001E0001000010 Shop #: WSC 31414 790 00001 ASAM Dataset: EV_BCM2HellaAU736 016016 ROD: EV_BCM2HellaAU736_016_AU49.rod VCID: 04518C0D2E98E1FA7B3-8050 ID - sensor: Subsystem 1 - Part No SW: 4M0 959 754 BA HW: 4M0 959 754 BA Component: ID-Geber H40 0105 Serial number: 3619000070634002 Coding: 000000 Alarm horn: Subsystem 2 - Part No SW: 5Q0 951 605 B HW: 5Q0 951 605 B Component: Sirene, DWA 004 0007 Serial number: 00000000000000426969 Rear lid opener control module: Subsystem 3 - Part No SW: 3AA 962 243 F HW: 3AA 962 243 F Component: GEB.F.Heckoef H16 0816 Serial number: 94397252 2 Faults Found: 65605 - Databus U1121 00 [00001000] - Missing Message [Brake control module: ESP_21: no signal/communication] Intermittent - Confirmed - Tested Since Memory Clear Freeze Frame: Fault Priority: 4 Fault Frequency: 1 Reset counter: 156 Mileage: 91705 km Date: 2025.05.21 Time: 13:13:08 Supply voltages-Terminal 30 power supply: 11.984 V Supply voltages-Supply voltage Terminal 30 - 2: 11.970 V Supply voltages-Supply voltage Terminal 30 - 3: 11.957 V general_additional_freeze_frame-Ambient_temperature_not_filtered: -50.0 °C general_additional_freeze_frame-coprocessor_spi_status: 00000000 general_additional_freeze_frame-dataflash_status: 00000000 general_additional_freeze_frame-interior_temperature: -50.0 °C general_additional_freeze_frame-Operating_Status: 00000000 00000000 general_additional_freeze_frame-production_mode: not active general_additional_freeze_frame-reset_cause: 00000000 general_additional_freeze_frame-Reset_counter: 0 general_additional_freeze_frame-Stall_current_cutoff_level: Deactivation stage 0 general_additional_freeze_frame-Stall_Current_Measuring_Mode: not active general_additional_freeze_frame-subnetwork_status: 00000000 00000000 general_additional_freeze_frame-terminal_control_intern_status: 40 04 42 10 04 80 general_additional_freeze_frame-Transport_Mode: not active general_additional_freeze_frame-Vehicle speed: Not available can_lin_communication_freeze_frame: 00000000 00000000 00000000 00000000 65729 - Databus U1121 00 [00001000] - Missing Message [Brake control module: ESP_05: no signal/communication] Intermittent - Confirmed - Tested Since Memory Clear Freeze Frame: Fault Priority: 4 Fault Frequency: 2 Reset counter: 156 Mileage: 91705 km Date: 2025.05.21 Time: 13:13:08 Supply voltages-Terminal 30 power supply: 11.984 V Supply voltages-Supply voltage Terminal 30 - 2: 11.970 V Supply voltages-Supply voltage Terminal 30 - 3: 11.957 V general_additional_freeze_frame-Ambient_temperature_not_filtered: -50.0 °C general_additional_freeze_frame-coprocessor_spi_status: 00000000 general_additional_freeze_frame-dataflash_status: 00000000 general_additional_freeze_frame-interior_temperature: -50.0 °C general_additional_freeze_frame-Operating_Status: 00000000 00000000 general_additional_freeze_frame-production_mode: not active general_additional_freeze_frame-reset_cause: 00000000 general_additional_freeze_frame-Reset_counter: 0 general_additional_freeze_frame-Stall_current_cutoff_level: Deactivation stage 0 general_additional_freeze_frame-Stall_Current_Measuring_Mode: not active general_additional_freeze_frame-subnetwork_status: 00000000 00000000 general_additional_freeze_frame-terminal_control_intern_status: 40 04 42 10 04 80 general_additional_freeze_frame-Transport_Mode: not active general_additional_freeze_frame-Vehicle speed: Not available can_lin_communication_freeze_frame: 00000000 00000000 00000000 00000000 ------------------------------------------------------------------------------- Address 47: Sound System (J525) Labels:* None Part No SW: 4M0 035 223 C HW: 4M0 035 223 Component: MIB2_amp_PD H03 0440 Serial number: 00000000158701 Dataset Number: 4M1909510E 0012 Coding: 0135060A008AF53AAF0000010000 Shop #: WSC 31414 790 00001 ASAM Dataset: EV_AMPMst16C4Gen2BOSE 001001 ROD: EV_AMPMst16C4Gen2BOSE_AU73.rod VCID: 2313EF918B5606C2629-8076 No fault code found. ------------------------------------------------------------------------------- Address 50: Seat Adj. 3rd row (J857) Labels:* None Part No SW: 4M1 959 760 G HW: 4M1 959 760 G Component: MEM-SR3 008 0016 Serial number: 00000377178440 Dataset Number: 4M0909467C 0016 Coding: FF041020F1000000000F000000000900000021210900000000000000440000 Shop #: WSC 31414 790 00001 ASAM Dataset: EV_SCM3rdRowCONTIAU736 005007 ROD: EV_SCM3rdRowCONTIAU736_AU73.rod VCID: 3D2739E90DF2503274D-8068 No fault code found. ------------------------------------------------------------------------------- Address 52: Door Elect, Pass. (J387) Labels:* None Part No SW: 4M0 959 792 H HW: 4M0 959 792 F Component: TSG BFS 009 0130 Serial number: 0000374321829 Dataset Number: 4M0909873J 0036 Coding: 005F8B005E00108000012030 Shop #: WSC 31414 790 00001 ASAM Dataset: EV_DCU2PasseSideMAXHCONT 001005 ROD: EV_DCU2PasseSideMAXHCONT_AU37.rod VCID: 42DD4A15740C2FCA09F-8016 No fault code found. ------------------------------------------------------------------------------- Address 5F: Information Electr. (J794) Labels:* 4M0-035-MIB-HGH2.clb Part No SW: 4M1 035 880 C HW: 4M1 035 880 Component: MU-P-LNS-US 035 1316 Serial number: A724E0KB110359 Dataset Number: 4M0909545R 0050 Coding: 013706020000000051220002041A00332F001BE401700904FE Shop #: WSC 31414 790 00001 ASAM Dataset: EV_MUHig6C3Gen2HBAS 001115 ROD: EV_MUHig6C3Gen2HBAS_AU49.rod VCID: 2D0709A9DD92C0B2C4D-8078 Data carrier: Subsystem 1 - Part No SW: V03 959 802 DK HW: ----------- Component: NAR 2018/2019 --- 0066 Serial number: -------------------- Multimedia System 1: Subsystem 2 - Part No SW: 4M0 919 605 HW: 4M0 919 605 Component: AU536_DU_HIGH H43 0008 Serial number: AUZ8Z9KJ4091G5 Multimedia system control head: Subsystem 3 - Part No SW: 4M0 919 615 M HW: 4M0 919 615 M Component: ControlUnit_P H15 0306 Serial number: 18051900000000000488 Compact disc data bank: Subsystem 4 - Part No SW: V03 959 800 EG HW: ----------- Component: Gracenote2 --- 3013 Serial number: -------------------- 2 Faults Found: 3086 - Antenna for Telephone Mount B1564 01 [00001000] - Electrical Failure Intermittent - Confirmed - Tested Since Memory Clear Freeze Frame: Fault Priority: 4 Fault Frequency: 62 Reset counter: 185 Mileage: 91705 km Date: 2025.06.03 Time: 04:35:08 Voltage terminal 30: 11.3 V Status of telephone-Antenna diagnostic: OK Status of telephone-Telephone baseplate diagnostic: not connected Status of telephone-Handset in handset holder (cradle): not selected Status of telephone-Handset holder (cradle): not connected 7219 - Function Restricted due to Missing Message(s) U1111 00 [00001000] - - [Emergency call module (0x33) - function restriction due to communication error - BapErr_retry not successful] Intermittent - Confirmed - Tested Since Memory Clear Freeze Frame: Fault Priority: 6 Fault Frequency: 2 Reset counter: 178 Mileage: 92299 km Date: 2025.06.16 Time: 07:09:52 Voltage terminal 30: 14.9 V BAP-BAP_Function_ID: 10 ------------------------------------------------------------------------------- Address 6C: Back-up Cam. (J928) Labels:* None Part No SW: 4M0 907 428 F HW: 4M0 907 428 Component: Areaview 2 H13 0318 Serial number: C854607JG082740 Dataset Number: 4M1909460J 0024 Coding: 02350602BA0FA10038004004 Shop #: WSC 31414 790 00001 ASAM Dataset: EV_CamSysRVAV2CE2MLBEv 005015 ROD: EV_CamSysRVAV2CE2MLBEv_005_AU49.rod VCID: 353721C935C28872BCD-8060 No fault code found. ------------------------------------------------------------------------------- Address 6D: Trunk Elect. (J605) Labels:| 5Q0-959-107.clb Part No SW: 8W8 959 107 D HW: 8W8 959 107 Component: HDSG-Modul H13 0170 Revision: -------- Serial number: A2-C744-8781-0 Dataset Number: 4M0909541H 0027 Coding: 0030 Shop #: WSC 31414 790 00001 ASAM Dataset: EV_DeckLidCONTIAU736 001016 ROD: EV_DeckLidCONTIAU736_VW37.rod VCID: 4ACD62354C3CF78AC1F-801E No fault code found. ------------------------------------------------------------------------------- Address 75: Telematics (J949) Labels:* None Part No SW: 4K1 035 283 C HW: 4K1 035 283 B Component: ConBox H09 0233 Serial number: 005CCA12F120554 Dataset Number: 4M0909612C 0014 Coding: 01C020FE4040800000 Shop #: WSC 31414 790 00001 ASAM Dataset: EV_ConBoxAU651 002004 ROD: EV_ConBoxAU651_002.rod VCID: 2809F8BDF270E59A37B-807C 2 Faults Found: 1116419 - Speaker for Emergency Calling B14A6 13 [00001000] - Open Circuit Intermittent - Confirmed - Tested Since Memory Clear Freeze Frame: Fault Priority: 4 Fault Frequency: 1 Reset counter: 156 Mileage: 91705 km Date: 2025.05.21 Time: 12:25:04 Voltage terminal 30: 11.80 V 458759 - Control Module Incorrectly Coded U1014 00 [00001000] - - [ECU_coded_wrong] Intermittent - Confirmed - Tested Since Memory Clear Freeze Frame: Fault Priority: 6 Reset counter: 186 Mileage: 91705 km Date: 2025.05.21 Time: 12:36:50 ------------------------------------------------------------------------------- Address 81: Gear Shift (J587) Labels: 4MX-713-041-81.clb Part No SW: 4M1 713 041 H HW: 4M1 713 041 G Component: GSM-LL H10 0077 Revision: 0L0D5012 Serial number: 19051752439669 ASAM Dataset: EV_GSMWaehlZFAU736 001017 ROD: EV_GSMWaehlZFAU736_AU72.rod VCID: 2A0D02B5EC7CD78A21F-807E No fault code found. ------------------------------------------------------------------------------- Address A5: Frt Sens. Drv. Assist (R242) Labels:* None Part No SW: 4M0 907 217 F HW: 4M0 907 217 E Component: BVS H17 0052 Dataset Number: 4M0909466M 0047 Coding: 0407030600000201022023A2A50000B400F0C020C080 Shop #: WSC 31414 790 00001 ASAM Dataset: EV_BVSMLBevKOSTAAU736 002026 ROD: EV_BVSMLBevKOSTAAU736_AU73.rod VCID: 313F15D9C1AAA452E05-8064 2 Faults Found: 1123669 - Left Matrix High Beam C1175 54 [00001001] - Missing Calibration / Basic Setting Confirmed - Tested Since Memory Clear Freeze Frame: Fault Priority: 4 Fault Frequency: 1 Reset counter: 146 Mileage: 92555 km Date: 2025.06.23 Time: 11:34:36 Control Module temperature: 42 °C Voltage terminal 15: 12.00 V 1123670 - Right Matrix High Beam C1176 54 [00001001] - Missing Calibration / Basic Setting Confirmed - Tested Since Memory Clear Freeze Frame: Fault Priority: 4 Fault Frequency: 1 Reset counter: 146 Mileage: 92555 km Date: 2025.06.23 Time: 11:34:36 Control Module temperature: 42 °C Voltage terminal 15: 12.00 V ------------------------------------------------------------------------------- Address BB: Door Rear Drv (J388) Labels:* None Part No SW: 4M0 959 795 H HW: 4M0 959 795 F Component: TSG HFS 009 0130 Serial number: 0000376017136 Dataset Number: 4M0909897J 0036 Coding: 004F8B000000108040002020 Shop #: WSC 31414 790 00001 ASAM Dataset: EV_DCU2RearDriveMAXHCONT 001005 ROD: EV_DCU2RearDriveMAXHCONT_VW37.rod VCID: 45D75109652218F22CD-8010 No fault code found. ------------------------------------------------------------------------------- Address BC: Door Rear Pass (J389) Labels:* None Part No SW: 4M0 959 795 H HW: 4M0 959 795 F Component: TSG HBFS 009 0130 Serial number: 0000376016919 Dataset Number: 4M0909896J 0036 Coding: 004F8B000000108040002020 Shop #: WSC 31414 790 00001 ASAM Dataset: EV_DCU2RearPasseMAXHCONT 001005 ROD: EV_DCU2RearPasseMAXHCONT_VW37.rod VCID: 45D75109652218F22CD-8010 No fault code found. ------------------------------------------------------------------------------- Address CA: Sunroof (J245) Labels:| 4M0-907-594.clb Part No SW: 4K0 907 594 AA HW: 4K0 907 594 Component: SAD_STG_1 006 0002 Dataset Number: 4M0909469K 0004 Coding: 228000053602 Shop #: WSC 31414 790 00001 ASAM Dataset: EV_SunRoofCONTIAU736 009011 ROD: EV_SunRoofCONTIAU736_009_VW37.rod VCID: 73B3DFD17B36D642529-8026 No fault code found. ------------------------------------------------------------------------------- Address CF: Lane Chge Asst 2 (J770) Labels:. 4M0-907-566.clb Part No SW: 4M0 907 590 E HW: 4M0 907 590 Component: MRR1Rear H22 0430 Revision: -------- Coding: 0E8002 Shop #: WSC 00000 000 00000 ASAM Dataset: EV_RearRadarS2BoschAU736 001022 ROD: EV_RearRadarS2BoschAU736.rod VCID: 34311CCD3EB8917A8B3-8060 No fault code found. ------------------------------------------------------------------------------- Address D6: Light Ctrl Left 2 (A31) Labels: 7PP-941-592.clb Part No SW: 7PP 941 592 CB HW: 7PP 941 592 C Component: LED1L H10 2003 Dataset Number: 4M0909471D 0012 Shop #: WSC 00000 000 00000 ASAM Dataset: EV_LEDModLeftMELCOAU736 001004 ROD: EV_LEDModLeftMELCOAU736_AU73.rod VCID: 1A6DD275BC1C470AB1F-804E No fault code found. ------------------------------------------------------------------------------- Address D7: Light Ctrl Right 2 (A27) Labels: 7PP-941-592.clb Part No SW: 7PP 941 592 CB HW: 7PP 941 592 C Component: LED1R H10 2003 Dataset Number: 4M0909472D 0012 Shop #: WSC 00000 000 00000 ASAM Dataset: EV_LEDModRightMELCOAU736 001004 ROD: EV_LEDModLeftMELCOAU736_AU73.rod VCID: 1A6DD275BC1C470AB1F-804E No fault code found. End----(Elapsed Time: 02:23, VBatt start/end: 11.9V/11.7V. VIgn 11.8V)-----

Mam podobna sytuacje jak kolega. Pozostaly bledy w A5, dotyczace kalibracji lewego i prawego matrixa. Bylem dzis na kalibracji kamery, dostalem wydruk ze kalibracja przeprowadzona pomyslnie, natomiast bledy pozostaly. Co miales na mysli basic settings, chodzilo o ustawienie w A5 czy w 09? w ktorym module wpisuje sie te katy? Warsztat ktory robil mi to na urzadzeniu bosh, twierdzi ze brakuje nastaw podstawowych lamp.

Masz jakies pomysly uwagi?

witam, tak jak pisalem, wymiana jeza usunala blad. Wnoisek, po obu stronach lamp musza byc takie same jeze.

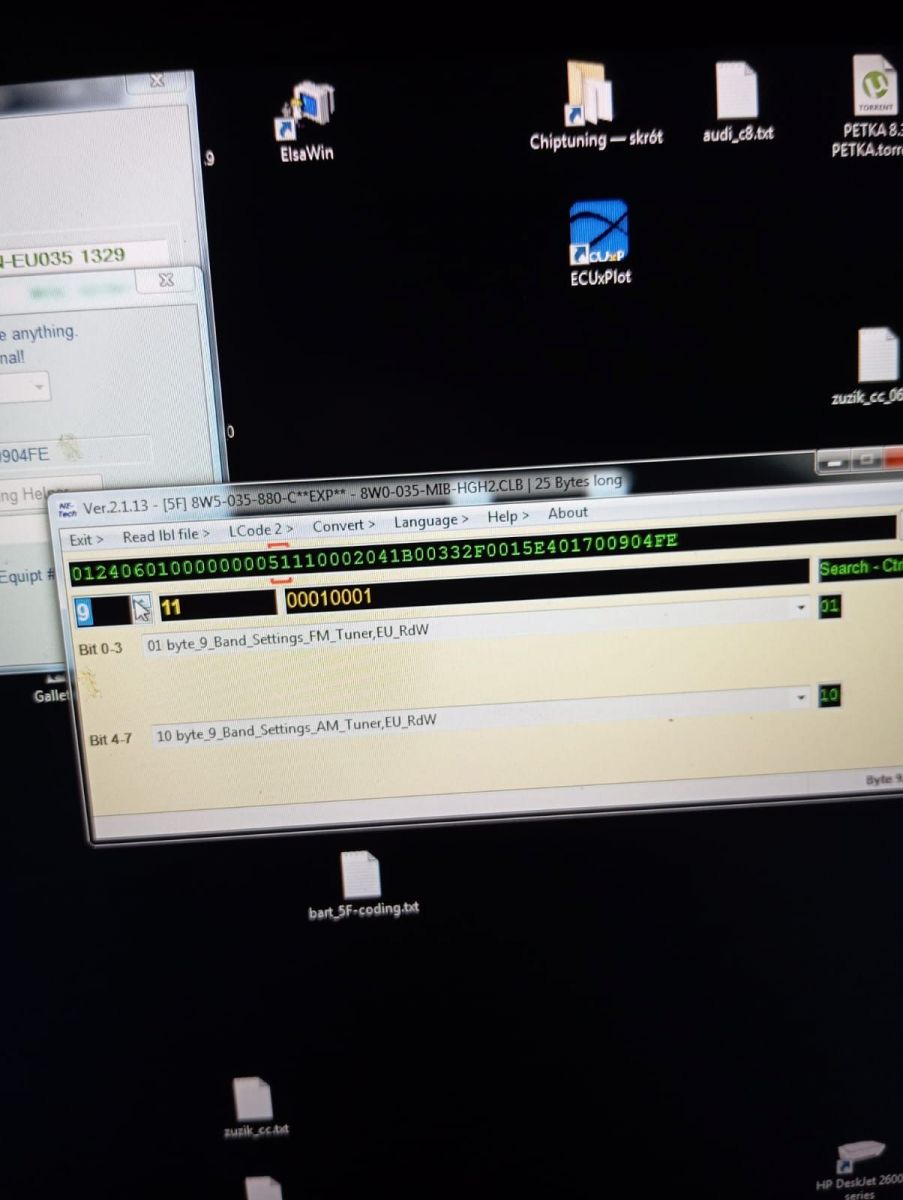

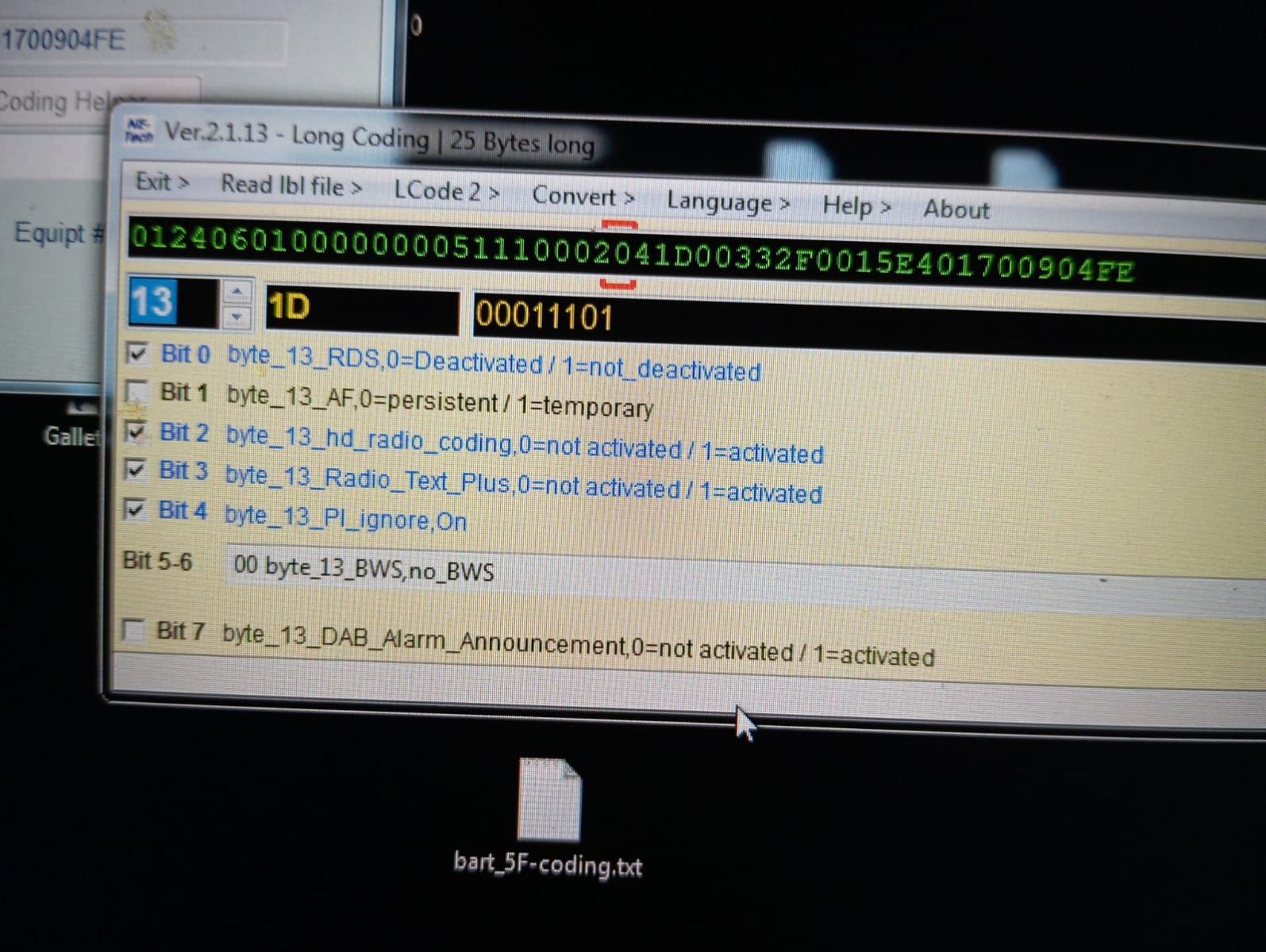

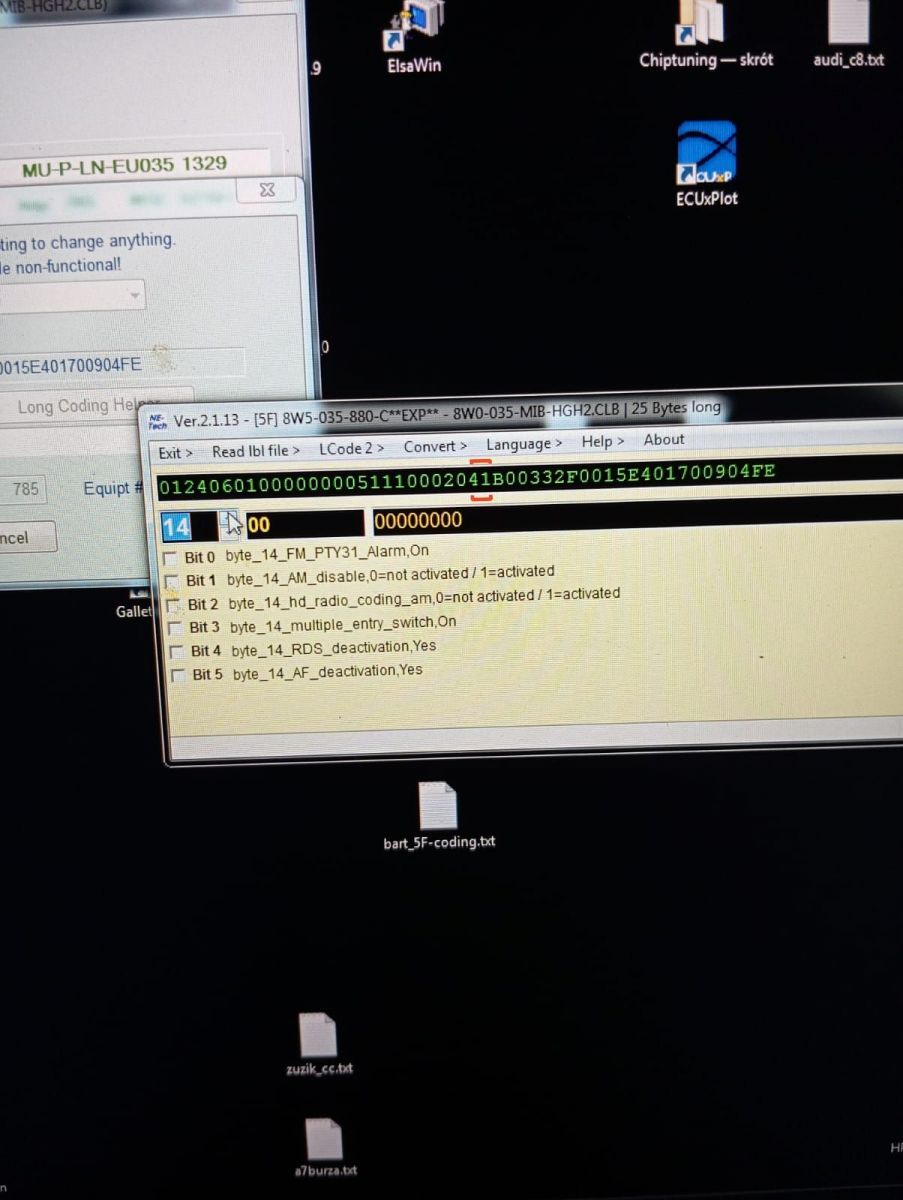

mam podobny problem do kolegi po konwersji USA-EU przez MIB i wgraniu najnowszego softu, dziala reczne wyszukiwanie stacji (i dodawanie do ulubionych), oraz automatyczne, ale nie dziala auto scan stacji. Lista FM zawsze zawiera jedna pozycje ktora mozna recznie wyszukac i dodac, albo automatycznie wyszukac i dodac. w 5f zmieniony bajt 9 oraz proby z 13stym (nieudane z bitem 0/1/2/3) byte_13_RDS byte_13_AF byte_13_hw_radio_config byte_13_Radio_Text_Plus w adaptacjach nic nie widze co moze miec zwiazek. Address 5F: Information Electr. (J794) Labels:* 8W0-035-MIB-HGH2.clb Part No SW: 8W5 035 880 C HW: 8W5 035 880 Component: MU-P-LN-EU035 1329 Serial number: A798I0K9623196 Dataset Number: 80B909545T 0034 Coding: 012406010000000051110002041D00332F0015E401700904FE Shop #: WSC 02391 785 00200 ASAM Dataset: EV_MUHig6C3Gen2HBAS 001115 ROD: EV_MUHig6C3Gen2HBAS_AU49.rod VCID: 3FDB43E107FE4222661-806A Data carrier: Subsystem 1 - Part No SW: V03 959 803 HW: ----------- Component: ECE 2025 --- 0390 Serial number: -------------------- Multimedia System 1: Subsystem 2 - Part No SW: 80A 919 605 HW: 80A 919 605 Component: AU426_DU_HIGH H42 0008 Serial number: AUZ8Z9KBL0947E Multimedia system control head: Subsystem 3 - Part No SW: 80A 919 615 HW: 80A 919 615 Component: ControlUnit_P H15 0209 Serial number: 31071900000000000934 Compact disc data bank: Subsystem 4 - Part No SW: V03 959 800 EG HW: ----------- Component: Gracenote2 --- 3013 Serial number: -------------------- No fault code found. Przyjechal ostatnio znajomy audi c8 z MHI2, u niego RDS jest deactivated, pomimo tego sledzenie stacji dziala, tak samo auto z usa po konwersji.

i jak autorowi udalo sie naprawic problem?

Masz racje kolego, wyjalem dzis modul i jest 10 diod w module USA. czekam na jeza 8 LEDowego i dam znac. Kodowania sa EU, klosze EU

tak mi sie wyswietlilo na zdjeciach aukcji, byc moze oni maja blad. Sprawdze jak wyjme z lampy i zrobie zdjecia. Sorry

Dam znac czy pomogla wymiana jeza

Po dluzszym sprawdzeniu modulow i wyjeciu lampy z modulami. Moge stwierdzic ze wersja USA "B" ma 10 LED wersja EU "A" ma 8 LED najprawodpoboniej dlatego wywala blad C11BF F6 [00001001] - Output Voltage / Power Implausible Oczywiscie w internecie pod B sa zdjecia A i na odwrot, takze zamiennniki sprzedawane sa w caly "swiat"

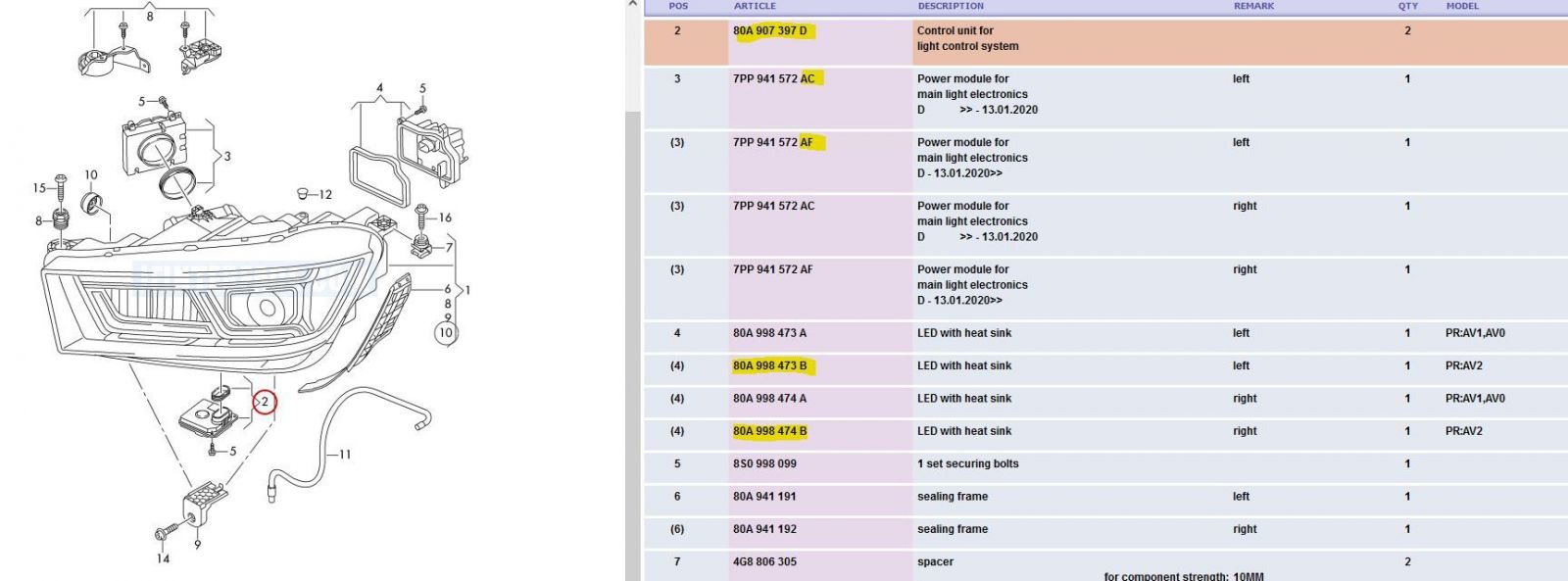

Co ciekawe Modul 80A 907 397 D moze byc dla USA i EU Modul 7PP 941 572 AC / AF moze byc dla USA i EU Natomiast ten z radiatorem 80A998473A Lewy + 80A998474A Prawy = Europa 80A998473B Lewy + 80A998474B prawy = USA Wiec najprawdopoobniej problemem jest ten 80A998473B w lewej lampie przelozony z lampy USA. Ciekawe, dam znac.

bajt 33 bit 5 odzanaczalem bo to jest wybor 0=ECE/1=SAE, nie pomoglo to plan mam na zmiane modulu 80A 907 397 B/C na D, tak zeby w obu lampach byl ten sam. Jeszcze W D7/D6 sa standardowe 7PP 941 572 A, na rynek i USA i EU Musze jeszcze sprawdzic ten trzeci maly modul, moze to winowajca ktory trzeba wymienic na EU Address 01: Engine (J623-DJYA) Labels: None Part No SW: 80A 906 259 P HW: 06L 907 425 C Component: R4 2.0l TFSI H15 0002 Revision: --H15--- CVN: 900D01A1 Coding: 2A6500322536012E74280000000000000000000000000000 Shop #: WSC 03999 444 00000 ASAM Dataset: EV_ECM20TFS02080A906259P 001002 ROD: EV_ECM20TFS02080A906259P.rod VCID: 382928FD22D0751AA7B-806C VINID: 9D10527915A91DC0800891022427B8797D Radiator shutter: Subsystem 1 - Part No SW: 95B 965 501 AA HW: 95B 965 501 AA Component: V544KJS1 H13 0110 Serial number: 20190802060103052072 No fault code found. Readiness: 1110 0101 ------------------------------------------------------------------------------- Address 02: Auto Trans (J217) Labels:| 0CJ-927-156.clb Part No SW: 80A 927 155 DJ HW: 0HK 927 156 B Component: 0CJ 20TFSINAR H01 0005 Revision: --H01--- Serial number: 0000000996 CVN: 73572B2100000000 Coding: 000001 Shop #: WSC 02391 785 00200 ASAM Dataset: EV_TCMDL382021 002031 ROD: EV_TCMDL382021_AU49.rod VCID: 74B1DCCD7E38D17A4B3-8020 MTF pump: Subsystem 1 - Part No SW: 0CK 927 152 AA HW: 0CK 321 281 L Component: V553 MTFP 003 0576 Serial number: 75145041190212002929 No fault code found. ------------------------------------------------------------------------------- Address 03: ABS Brakes (J104) Labels: 8W0-907-379-PLU-V1.clb Part No SW: 80A 907 379 AB HW: 80A 907 379 Component: ESP9 Plus H17 0777 Dataset Number: 80B909504AC 0005 CVN: A35D7886 Coding: 4CAA40BE28A40A9F91A2589320865292E5359A32021450891A044A49A7AC59 Shop #: WSC 03999 444 00000 ASAM Dataset: EV_ESP9BOSCHCMP 002013 ROD: EV_ESP9BOSCHCMP_004_AU49.rod VCID: 6FBBD3A1171EF2A2B61-803A No fault code found. ------------------------------------------------------------------------------- Address 08: Auto HVAC (E87) Labels:* None Part No SW: 80A 820 043 N HW: 80A 820 043 N Component: Klima Zone 3 H60 0251 Coding: 640809095548000D10000100080000000000000000000000000000000000 Shop #: WSC 02391 785 00200 ASAM Dataset: EV_AirCondiBHTCAU491 001013 ROD: EV_AirCondiBHTCAU491.rod VCID: 2809F8BDF270E59A37B-807C Fresh air blower control module (front): Subsystem 1 - Part No SW: 4M1 820 021 C HW: 4M1 820 021 C Component: J126 FLuftV H09 0004 Serial number: 00000000000003760690 Humidity sensor: exterior: Subsystem 2 - Part No SW: 4H0 907 658 A HW: 4H0 907 658 A Component: AQ_Hum_Sensor H02 0007 Serial number: 2320DAB900PAG0MUFU02 Rear air conditioning block 1: Subsystem 3 - Part No SW: 80A 919 158 A HW: 80A 919 158 A Component: E265 Kli Fond H40 0080 No fault code found. ------------------------------------------------------------------------------- Address 09: Cent. Elect. (J519) Labels:* Redir Fail! Part No SW: 8W0 907 063 DG HW: 8W0 907 063 BG Component: BCM1 MLBevo H13 0313 Dataset Number: 80B909514L 0041 Coding: 07500363E0690CCD050587159CBE98B9110B3D08000000000000000020001A010A630122025705 Shop #: WSC 03999 444 12345 ASAM Dataset: EV_BCM1BOSCHAU736 019008 ROD: EV_BCM1BOSCHAU736_019.rod VCID: 03538F112B96E6C2429-8056 Wiper motor control module: Subsystem 1 - Part No SW: 80B 955 119 A HW: 80B 955 119 Component: 426 LL 190906 040 0581 Serial number: 00000001909042114281 Coding: FFC7F7 Rain/Light Recognition Sensor: Subsystem 2 - Part No SW: 81A 955 555 A HW: 81A 955 555 Component: G397_RLFSS H06 0002 Serial number: 23380326X81A955555A0 Coding: 02006E Light switch: Subsystem 3 - Part No SW: 4M0 941 531 AG HW: 4M0 941 531 AG Component: E1 - LDS H06 0008 Serial number: 27 09 2019 92700073 Garage door opener control module: Subsystem 4 - Part No SW: 4N0 907 410 B HW: 4M0 907 410 A Component: USHL5 H10 0100 Serial number: 0000009600368Z000402 Coding: 350000 Garage door opener control head: Subsystem 5 - Part No SW: 4M0 959 719 A HW: 4M0 959 719 A Component: GTO BF H01 0010 Serial number: 20190919132221 00632 Automatic dimming interior mirror: Subsystem 6 - Part No SW: 8W0 857 511 B HW: 8W0 857 511 B Component: Y7_Innenspieg H01 0002 Serial number: GX1CE110091923610440 Coding: 010000 Interior Light Module: Subsystem 7 - Part No SW: 80A 947 135 BM HW: 80A 947 135 Component: Dachmodul H42 0415 Serial number: Q00004764 Coding: 0D0101 Control head for driving and comfort functions: Subsystem 8 - Part No SW: 8W0 925 301 BD HW: 8W0 925 301 BD Component: SL-B9/Q5NF H18 0010 Serial number: 4919000146957001 Coding: 000000 1 Fault Found: 66964 - Databus U1123 00 [00001001] - Received Error Message [Right LCM: turn signal faulty] Confirmed - Tested Since Memory Clear Freeze Frame: Fault Priority: 6 Fault Frequency: 1 Reset counter: 73 Mileage: 67790 km Date: 2025.01.10 Time: 15:09:01 average_Voltage_terminals: 11.60 V Outside air temperature sensor-Resistance: 0.00 kOhm Outside air temperature sensor-Outside air temperature on CAN: 11.50 °C interior_temperature: 11.00 °C Vehicle speed: 0.00 km/h Terminal activation-Terminal 75 status: On Terminal activation-Terminal 15 status signal: On Terminal activation-Terminal 15 via CAN: On Terminal activation-Term 75: qualification: OFF ------------------------------------------------------------------------------- Address 15: Airbags (J234) Labels:| 80A-959-655.clb Part No SW: 80A 959 655 L HW: 80A 959 655 L Component: AirbagVW30 063 0610 Serial number: 003W1M05SFN0 Dataset Number: 80A909602J 0002 Coding: AECCFCC000800000A000003FF20C400000C5 Shop #: WSC 02391 785 00200 ASAM Dataset: EV_AirbaVW31SMEAU65x 001032 ROD: EV_AirbaVW31SMEAU65x_001.rod VCID: 3C2134ED16E8593A433-8068 Left seat belt tensioner: Subsystem 1 - Part No SW: 4M0 980 945 B HW: 4M0 980 945 B Component: BeltPretRevFL 306 2040 Serial number: 80A857705M0191T00556 Coding: 80000D Right seat belt tensioner: Subsystem 2 - Part No SW: 4M0 980 946 B HW: 4M0 980 946 B Component: BeltPretRevFR 306 2040 Serial number: 80A857706M0226T00244 Coding: 80000D Seat occupied recognition passenger side: Subsystem 3 - Part No SW: 4M0 959 339 HW: 4M0 959 339 Component: BF-Gewichtss. H12 0022 Serial number: IBH0000D19000C1MGP0G Coding: 303033 Crash sensor for side airbag: driver side: Subsystem 4 - Part No SW: ----------- HW: 480 002 007 19 Component: SideSensor_Df 001 0887 Serial number: 357000000006F271DD3W Coding: 2D2D2D Front Passenger's Side Airbag Crash Sensor: Subsystem 5 - Part No SW: ----------- HW: 480 002 107 19 Component: SideSensor_Pf 001 0887 Serial number: 3580000000046B2D1E3R Coding: 2D2D2D Rear Side Airbag Crash Sensor (on driver's side): Subsystem 6 - Part No SW: ----------- HW: 480 031 907 19 Component: SideSensor_Dr 002 0149 Serial number: 351001C244F289F11ACJ Coding: 2D2D2D Passenger side rear thorax airbag crash sensor: Subsystem 7 - Part No SW: ----------- HW: 480 031 907 19 Component: SideSensor_Pr 002 0149 Serial number: 352001C2462846710EE5 Coding: 2D2D2D Crash sensor for front airbag: driver side: Subsystem 8 - Part No SW: ----------- HW: 480 031 907 19 Component: FrontSensor_D 002 0149 Serial number: 355001C244E884C09B3J Coding: 2D2D2D Crash sensor for front airbag: front passenger side: Subsystem 9 - Part No SW: ----------- HW: 480 031 907 19 Component: FrontSensor_P 002 0149 Serial number: 356001C244EB88C0C82Q Coding: 2D2D2D Central crash sensor X/Y: Subsystem 10 - Part No SW: ----------- HW: 480 021 707 19 Component: CentrSensorXY 004 0108 Serial number: I0O00012C2B73AC6553Z No fault code found. ------------------------------------------------------------------------------- Address 16: Steering wheel (J527) Labels: 4M0-907-129.clb Part No SW: 80A 907 129 CB HW: 80A 907 129 CB Component: Lenks.Modul H02 0005 ASAM Dataset: EV_SMLSKLOAU736 007012 ROD: EV_SMLSKLOAU736_007_AU49.rod VCID: 6A8DC2B52CFC178AE1F-803E No fault code found. ------------------------------------------------------------------------------- Address 17: Instruments (J285) Labels:* Redir Fail!-SRI2 Part No SW: 8W5 920 890 E HW: 8W5 920 890 E Component: FBenUSA H20 0417 Coding: 09E78EC5A8880005072369601800200008000000 Shop #: WSC 03999 444 12345 ASAM Dataset: EV_DashBoardAU736 001032 ROD: EV_DashBoardAU736_AU49.rod VCID: 45D75109652218F22CD-8010 No fault code found. ------------------------------------------------------------------------------- Address 19: CAN Gateway (J533) Labels:* None Part No SW: 80A 907 468 G HW: 80A 907 468 A Component: Gateway H06 0262 Serial number: 1UF03087472801 Dataset Number: 80B909515J 0064 Coding: 030100010000064029070000005900324C3A0007100000000175078E10000000 Shop #: WSC 03999 444 00000 GVL: 01D03C0008000000C0DC08008002C800100C0000000000000000000000000100 ASAM Dataset: EV_Gatew31xAU65x 003190 ROD: EV_Gatew31xAU65x_AU49.rod VCID: 323D1AD5C4AC9F4A99F-8066 Multifunction steering wheel control module: Subsystem 1 - Part No SW: 80A 951 523 E HW: 80A 951 523 E Component: J453 MFL H06 0004 Serial number: 20190918125655 00695 Battery Monitoring Control Module: Subsystem 2 - Part No SW: 8S0 915 181 C HW: 8S0 915 181 C Component: J367-BDMHella H10 9070 Serial number: 8147906800 No fault code found. ------------------------------------------------------------------------------- Address 22: AWD (J492) Labels:| 0CJ-927-749.clb Part No SW: 80A 927 755 HW: 0CJ 927 749 A Component: Q5_DL3_N_SD5H02 0006 Serial number: 19234A6167 Coding: 11070000 Shop #: WSC 02391 785 00200 ASAM Dataset: EV_AWDCQUOD31 001048 ROD: EV_AWDCQUOD31.rod VCID: 6C81C4AD260809BA933-8038 No fault code found. ------------------------------------------------------------------------------- Address 29: Left Light (J1018) Labels: 8S0-907-397.clb Part No SW: 80A 907 397 C HW: 80A 907 397 C Component: LCM_MLBevo H07 0022 Dataset Number: 80B909519D 0011 Shop #: WSC 00000 000 00000 ASAM Dataset: EV_LCMLeftCONTIAU426 001009 ROD: EV_LCMLeftCONTIAU426_VW41.rod VCID: 2F3B13A1D79EB2A2F61-807A No fault code found. ------------------------------------------------------------------------------- Address 39: Right Light (J1023) Labels: 8S0-907-397.clb Part No SW: 80A 907 397 D HW: 80A 907 397 D Component: LCM_MLBevo H06 0017 Shop #: WSC 00000 000 00000 ASAM Dataset: EV_LCMRightCONTIAU426 001009 ROD: EV_LCMLeftCONTIAU426_VW41.rod VCID: 303910DDCAA0AD5AEFB-8064 1 Fault Found: 0563 - LED Turn Signal Lights C11BF F6 [00001001] - Output Voltage / Power Implausible Confirmed - Tested Since Memory Clear Freeze Frame: Fault Priority: 5 Fault Frequency: 1 Reset counter: 73 Mileage: 67790 km Date: 2025.01.10 Time: 15:08:59 ------------------------------------------------------------------------------- Address 36: Seat Mem. Drvr (J136) Labels:* None Part No SW: 4M4 959 760 HW: 4M4 959 760 Component: MEM-FS 009 0042 Serial number: 12A14926202183 Dataset Number: 80B909856B 0009 Coding: 005C1B000000B0010000010101010000000000000000000000000000000000 Shop #: WSC 02391 785 00200 ASAM Dataset: EV_SCMDriveSideCONTIAU736 006009 ROD: EV_SCMDriveSideCONTIAU736_AU49.rod VCID: 79AFEDF9595AAC12185-802C No fault code found. ------------------------------------------------------------------------------- Address 3C: Lane Change (J769) Labels:| 4M0-907-566.clb Part No SW: 80A 907 566 B HW: 80A 907 566 Component: MRR1Rear H22 0441 Revision: -------- Dataset Number: 80B909535B 0013 Coding: 1E8002 Shop #: WSC 03999 444 00000 ASAM Dataset: EV_RearRadarS1BoschAU736 001022 ROD: EV_RearRadarS1BoschAU736.rod VCID: 2C0104ADE688C9BAD33-8078 No fault code found. ------------------------------------------------------------------------------- Address 42: Door Elect, Driver (J386) Labels:* None Part No SW: 4M1 959 793 D HW: 4M1 959 793 D Component: TSG FS002 0189 Serial number: CLSM1SHU00A7Y Dataset Number: 80B909872E 0039 Coding: 005F8B005E00148000010032 Shop #: WSC 02391 785 00200 ASAM Dataset: EV_DCU2DriveSideMAXHKLO 001010 ROD: EV_DCU2DriveSideMAXHKLO.rod VCID: 40D9401D7A003DDA1FB-8014 No fault code found. ------------------------------------------------------------------------------- Address 44: Steering Assist (J500) Labels:* None Part No SW: 4N0 909 144 E HW: 4N0 909 144 C Component: EPS_MLBEVO2BS H22 0505 Dataset Number: 80B909852L 0002 Coding: 90002001000100 Shop #: WSC 02391 785 00200 ASAM Dataset: EV_EPSVWBSAU426 010017 ROD: EV_EPSVWBSAU426_010.rod VCID: 323D1AD5C4AC9F4A99F-8066 No fault code found. ------------------------------------------------------------------------------- Address 46: Central Conv. (J393) Labels:* None Part No SW: 4N0 907 064 DP HW: 4N0 907 064 P Component: BCM2 MLBevo H15 0183 Dataset Number: 80B909501K 0041 Coding: 013400004FB100C0650BA0006C01D80203024000810026502F0000000F04803F001E0001000011 Shop #: WSC 03999 444 00000 ASAM Dataset: EV_BCM2CONTIAU651 010009 ROD: EV_BCM2CONTIAU651_010_VW53.rod VCID: 0059801D3A80FDDA5FB-8054 ID - sensor: Coding: 000000 Anti-theft alarm system sensor: Subsystem 2 - Part No SW: 5Q0 951 177 HW: 5Q0 951 172 Component: Sensor, DWA 005 0316 Serial number: 000000000ZY191600CC8 Alarm horn: Subsystem 3 - Part No SW: 5Q0 951 605 A HW: 5Q0 951 605 A Component: Sirene, DWA 005 0314 Serial number: 00000000000047426998 Rear lid opener control module: Subsystem 4 - Part No SW: 3G0 962 243 C HW: 3G0 962 243 C Component: GEB.F.Heckoef H17 0906 Serial number: 11885428 Rear spoiler control module: No fault code found. ------------------------------------------------------------------------------- Address 47: Sound System (J525) Labels:* None Part No SW: 80A 035 223 A HW: 80A 035 223 Component: MIB2_amp_P_Q5 H03 0420 Revision: 00000001 Serial number: AUZ8ZAKTK04RW68 Dataset Number: 80B909510B 0009 Coding: 0194010800AFAAAFAA0000010000 Shop #: WSC 02391 785 00200 ASAM Dataset: EV_AMPMst16C2Gen2ALPI 001012 ROD: EV_AMPMst16C2Gen2ALPI.rod VCID: 196FCD79B91A4C12B85-804C No fault code found. ------------------------------------------------------------------------------- Address 52: Door Elect, Pass. (J387) Labels:* None Part No SW: 4M1 959 792 D HW: 4M1 959 792 D Component: TSG BFS002 0189 Serial number: CLSM1SHS0053D Dataset Number: 80B909873E 0039 Coding: 005F8B005E00148000010030 Shop #: WSC 02391 785 00200 ASAM Dataset: EV_DCU2PasseSideMAXHKLO 001010 ROD: EV_DCU2PasseSideMAXHKLO.rod VCID: 3FDB43E107FE4222661-806A No fault code found. ------------------------------------------------------------------------------- Address 5F: Information Electr. (J794) Labels:* 8W0-035-MIB-HGH2.clb Part No SW: 8W5 035 880 C HW: 8W5 035 880 Component: MU-P-LN-EU035 1329 Serial number: A798I0K9623196 Dataset Number: 80B909545T 0034 Coding: 012406010000000051110002041A00332F0015E401700904FE Shop #: WSC 02391 785 00200 ASAM Dataset: EV_MUHig6C3Gen2HBAS 001115 ROD: EV_MUHig6C3Gen2HBAS_AU49.rod VCID: 3FDB43E107FE4222661-806A Data carrier: Subsystem 1 - Part No SW: V03 959 803 HW: ----------- Component: ECE 2025 --- 0390 Serial number: -------------------- Multimedia System 1: Subsystem 2 - Part No SW: 80A 919 605 HW: 80A 919 605 Component: AU426_DU_HIGH H42 0008 Serial number: AUZ8Z9KBL0947E Multimedia system control head: Subsystem 3 - Part No SW: 80A 919 615 HW: 80A 919 615 Component: ControlUnit_P H15 0209 Serial number: 31071900000000000934 Compact disc data bank: Subsystem 4 - Part No SW: V03 959 800 EG HW: ----------- Component: Gracenote2 --- 3013 Serial number: -------------------- No fault code found. ------------------------------------------------------------------------------- Address 69: Trailer (J345) Labels:| 5Q0-907-383.clb Part No SW: 4M0 907 383 F HW: 4M0 907 383 B Component: Anhaenger H27 0253 Revision: 9A001003 Serial number: 0454056094 Dataset Number: 80B909527A 0008 Coding: 0210000200000000 Shop #: WSC 03999 444 00000 ASAM Dataset: EV_TrailFunctGener2Hella 001008 ROD: EV_TrailFunctGener2Hella_VW26.rod VCID: 353721C935C28872BCD-8060 No fault code found. ------------------------------------------------------------------------------- Address 6C: Back-up Cam. (J772) Labels:* Redir Fail! Part No SW: 4M0 980 556 A HW: 4M0 980 556 A Component: RVC Compact H18 0250 Dataset Number: 80B909460F 0007 Coding: 0224060103002005400040 Shop #: WSC 03999 444 00000 ASAM Dataset: EV_CamSysRVRVCPANAMLBEv 005010 ROD: EV_CamSysRVRVCPANAMLBEv_005_AU49.rod VCID: 33331FD13BB69642929-8066 No fault code found. ------------------------------------------------------------------------------- Address 6D: Trunk Elect. (J605) Labels:| 5Q0-959-107.clb Part No SW: 8W8 959 107 D HW: 8W8 959 107 Component: HDSG-Modul H13 0171 Revision: -------- Serial number: A2-C748-5750-8 Dataset Number: 80B909541D 0010 Coding: 07B0 Shop #: WSC 03999 444 00000 ASAM Dataset: EV_DeckLidCONTIAU736 001017 ROD: EV_DeckLidCONTIAU736_VW48.rod VCID: 4ACD62354C3CF78AC1F-801E No fault code found. ------------------------------------------------------------------------------- Address 75: Telematics (J949) Labels:* None Part No SW: 4K1 035 283 C HW: 4K1 035 283 B Component: ConBox H09 0233 Serial number: 005CCA12F120880 Dataset Number: 80B909612C 0012 Coding: 01C020FE4040800000 Shop #: WSC 02391 785 00200 ASAM Dataset: EV_ConBoxAU651 002004 ROD: EV_ConBoxAU651_002.rod VCID: 2809F8BDF270E59A37B-807C No fault code found. ------------------------------------------------------------------------------- Address 81: Gear Shift (J587) Labels: 4MX-713-041-81.clb Part No SW: 80B 713 041 N HW: 80B 713 041 N Component: GSM-LL H10 0077 Revision: 0L0D5012 Serial number: 20190902001609 ASAM Dataset: EV_GSMWaehlZFAU736 001017 ROD: EV_GSMWaehlZFAU736_AU49.rod VCID: 2809F8BDF270E59A37B-807C No fault code found. ------------------------------------------------------------------------------- Address A5: Frt Sens. Drv. Assist (R242) Labels:* Redir Fail! Part No SW: 80A 907 217 C HW: 80A 907 217 A Component: BVS H17 0055 Dataset Number: 80B909466D 0027 Coding: 0404020600000201022023A3A50000FE00F0C020C020 Shop #: WSC 03999 444 00000 ASAM Dataset: EV_BVSMLBevKOSTAAU736 002026 ROD: EV_BVSMLBevKOSTAAU736_002_AU49.rod VCID: 2615F685F864F3EA057-8072 No fault code found. ------------------------------------------------------------------------------- Address BB: Door Rear Drv (J388) Labels:* None Part No SW: 4M1 959 795 D HW: 4M1 959 795 D Component: TSG HFS004 0189 Serial number: CLSM1SHV00C92 Dataset Number: 80B909897E 0039 Coding: 000F8B000000148040000020 Shop #: WSC 02391 785 00200 ASAM Dataset: EV_DCU2RearDriveMAXHKLO 001010 ROD: EV_DCU2RearDriveMAXHKLO.rod VCID: 42DD4A15740C2FCA09F-8016 No fault code found. ------------------------------------------------------------------------------- Address BC: Door Rear Pass (J389) Labels:* None Part No SW: 4M1 959 795 D HW: 4M1 959 795 D Component: TSG HBFS004 0189 Serial number: CLSM1SHV00C93 Dataset Number: 80B909896E 0039 Coding: 000F8B000000148040000020 Shop #: WSC 02391 785 00200 ASAM Dataset: EV_DCU2RearPasseMAXHKLO 001010 ROD: EV_DCU2RearPasseMAXHKLO.rod VCID: 42DD4A15740C2FCA09F-8016 No fault code found. ------------------------------------------------------------------------------- Address CA: Sunroof (J245) Labels:| 4M0-907-594.clb Part No SW: 4K0 907 594 AC HW: 4K0 907 594 Component: SAD_STG_1 006 0002 Dataset Number: 80B909469F 0011 Coding: 22800004260C Shop #: WSC 02391 785 00200 ASAM Dataset: EV_SunRoofCONTIAU736 009011 ROD: EV_SunRoofCONTIAU736_009_VW37.rod VCID: 75B7E1C97542C8727CD-8020 No fault code found. ------------------------------------------------------------------------------- Address CF: Lane Chge Asst 2 (J770) Labels:. 4M0-907-566.clb Part No SW: 80A 907 590 B HW: 80A 907 590 Component: MRR1Rear H22 0441 Revision: -------- Coding: 1E8002 Shop #: WSC 00000 000 00000 ASAM Dataset: EV_RearRadarS2BoschAU736 001022 ROD: EV_RearRadarS2BoschAU736.rod VCID: 290FFDB9E97ADC92285-807C No fault code found. ------------------------------------------------------------------------------- Address D6: Light Ctrl Left 2 (A31) Labels: 7PP-941-572.clb Part No SW: 7PP 941 572 AC HW: 7PP 941 572 A Component: LED1L H09 0008 Dataset Number: 80B909471B 0004 Shop #: WSC 00000 000 00000 ASAM Dataset: EV_LEDModLeftMELCOAU736 001004 ROD: EV_LEDModLeftMELCOAU736_VW37.rod VCID: 176BCB414F0E5A628E1-8042 No fault code found. ------------------------------------------------------------------------------- Address D7: Light Ctrl Right 2 (A27) Labels: 7PP-941-572.clb Part No SW: 7PP 941 572 AB HW: 7PP 941 572 A Component: LED1R H09 0003 Dataset Number: 8WD909472A 0001 Shop #: WSC 00000 000 00000 ASAM Dataset: EV_LEDModRightMELCOAU736 001004 ROD: EV_LEDModLeftMELCOAU736_VW37.rod VCID: 1675C6454804636A957-8042

Witam Pacjent to Q5 z 2019r z USA. Auto przyjechalo bez prawej lampy, zostaly zalozone 2 lampy EU, do tego w lewej moduly przelozone z USA, po prawej moduly EU z innego auta. W 09 zostaly wykodowane side markery. Moduly 29 oraz 39 i D6 D7, wgrane wsady z VCP z zawartoscia EU. Po takim zabiegu albo lewa lampa wywala blad kierunku albo prawa, w zaleznosci od kolejnosci programowania, nie ma znaczenia ktory jest wlozony modul w lampe. Natomiast wszystkie swiatla dzialja normalnie, tylko ten blad i szybkie pikanie na desce. Obecnie mam 80A 907 397 C (usa) w lewej i w prawej 80A 907 397 D. Robilem testy z innym modulem 80A 907 397 B i to samo. Programowalem je tez pod USA, i efekt podobny. Na forach byly 2-3 takie same przypadki, niestety bez rozwiazania. Czy powodem moga byc rozne werjse HW modulow po lewej i prawej? probowalem tez wgrywac do wersji HW B-> softu z D, efekt podobny. Address 29: Left Light (J1018) Labels: 8S0-907-397.clb Part No SW: 80A 907 397 C HW: 80A 907 397 C Component: LCM_MLBevo H07 0022 Dataset Number: 80B909519D 0011 Shop #: WSC 00000 000 00000 ASAM Dataset: EV_LCMLeftCONTIAU426 001009 ROD: EV_LCMLeftCONTIAU426_VW41.rod VCID: 2F3B13A1D79EB2A2F61-807A No fault code found. ------------------------------------------------------------------------------- Address 39: Right Light (J1023) Labels: 8S0-907-397.clb Part No SW: 80A 907 397 D HW: 80A 907 397 D Component: LCM_MLBevo H06 0017 Shop #: WSC 00000 000 00000 ASAM Dataset: EV_LCMRightCONTIAU426 001009 ROD: EV_LCMLeftCONTIAU426_VW41.rod VCID: 303910DDCAA0AD5AEFB-8064 1 Fault Found: 0563 - LED Turn Signal Lights C11BF F6 [00001001] - Output Voltage / Power Implausible Confirmed - Tested Since Memory Clear Freeze Frame: Fault Priority: 5 Fault Frequency: 1 Reset counter: 73 Mileage: 67790 km Date: 2025.01.10 Time: 15:08:59 Address 09: Cent. Elect. (J519) Labels:* Redir Fail! Part No SW: 8W0 907 063 DG HW: 8W0 907 063 BG Component: BCM1 MLBevo H13 0313 Dataset Number: 80B909514L 0041 Coding: 07500363E0690CCD050587159CBE98B9110B3D08000000000000000020001A010A630122025705 Shop #: WSC 03999 444 12345 ASAM Dataset: EV_BCM1BOSCHAU736 019008 ROD: EV_BCM1BOSCHAU736_019.rod VCID: 03538F112B96E6C2429-8056 1 Fault Found: 66964 - Databus U1123 00 [00001001] - Received Error Message [Right LCM: turn signal faulty] Confirmed - Tested Since Memory Clear Freeze Frame: Fault Priority: 6 Fault Frequency: 1 Reset counter: 73 Mileage: 67790 km Date: 2025.01.10 Time: 15:09:01 average_Voltage_terminals: 11.60 V Outside air temperature sensor-Resistance: 0.00 kOhm Outside air temperature sensor-Outside air temperature on CAN: 11.50 °C interior_temperature: 11.00 °C Vehicle speed: 0.00 km/h Terminal activation-Terminal 75 status: On Terminal activation-Terminal 15 status signal: On Terminal activation-Terminal 15 via CAN: On Terminal activation-Term 75: qualification: OFF Bylbym wdzieczny za jakas podpowiedz, zakupilem drugi modul "D" zeby testy i proby przeprowadzic na tych samym modulach po obu stronach. Czy mozliwe, ze 09 wymaga dodatkowego kodowania pod konwersje USA-> EU? procz side markerow. Odnalazlem cos takiego headlamp_config_word = headlamp_variant_2 W VCDS w podpowiedziach bylo cos nt regionu SAE/ECE ale zmiana nic nie powoduje. W D6/D7 brak bledow. Prosze o pomoc.

jak coś to polecam siebie, od lat siedze w grupie VAG. Modyfikuje samodzielnie auta, bez popeliny, jak cos jest troche niesprawne to nie dotykam. Robiłem projekty pod 800ps (2.7bit). Hamownia dynomet gps. Wrocław Północ

Panowie co wybrac do allroada: Presto UHP 2 235/45 R18 98 Y Nankang AS-2+ n235/45/ R18 98Y Nankang AS-2+ Czytaj więcej: https://www.oponeo.pl/model-opony/nankang-as-2-?gclid=Cj0KCQjw24qHBhCnARIsAPbdtlKPtuIH-Ke-K3lowDk5Ee9_lJljQmKEody58Pw9-vRJpAxIRiddyRgaAnoxEALw_wcB Powyższa treść jest wyłączną własnością Oponeo.pl S.A. Nankang AS-2+ Czytaj więcej: https://www.oponeo.pl/model-opony/nankang-as-2-?gclid=Cj0KCQjw24qHBhCnARIsAPbdtlKPtuIH-Ke-K3lowDk5Ee9_lJljQmKEody58Pw9-vRJpAxIRiddyRgaAnoxEALw_wcB Powyższa treść jest wyłączną własnością Oponeo.pl S.A.

tylko na fb, tak tak. lubie grzebac i jest nowy pomysl :D

jeszcze nie oglaszalem :)

wpadło 450ps, uciecha niesamowita filmik 100-200 https://www.youtube.com/watch?v=GE4lCPP3T-g

ja mam odrobne odczucie, ale to moze takie wrazenie. Cinkers jakbys chcial to kolega bedize mial na sprzedaz f10 z silnikiem 6 garów pod lpg ideolo 258ps

Panowie ktos probowal odpowietrzac uklad abs przez vcds? wyswietla mi prosbe o wpisanie kodu

zdradz tajemnice co dalej, a moze juz cos kupione?

kółeczko kompresora mi starczy, juz tak jezdzilem osiagi na prawde za poczciwe w takim setupie.
