BCM 09 A4 B9

**pawelpawel111** · 10 Września 2021

Znajomy ma a4 b9 i raz zakodował jakimś chińskim ustrojstwem (obsugiwanym przez telefon) tryb skandynawski. Miał identyczne problemy jak ja, czyli brak świateł drogowych pomimo, iż niebieska kontrolka na desce się wyświetla. Po wyłączeniu tego trybu wszystko wróciło do normy. Zauważyłem że u mnie tylne swiatła postojowe świecą się cały czas ,przednie także. Nie ma wpływu na to pora dnia,nocy ani ustawienie przełącznika świateł.

**Muskel1** · 10 Września 2021

Miałeś wrzucić autoscan.

**pawelpawel111** · 10 Września 2021

Za godzinę jak wrócę z pracy.

**pawelpawel111** · 10 Września 2021

Czy ikone audi connect można uruchomić w b9? Uruchomiłem w b8.

**Muskel1** · 10 Września 2021

35 minut temu, pawelpawel111 napisał:

Czy ikone audi connect można uruchomić w b9? Uruchomiłem w b8.

Nie da się. Wymiana jednostki mmi.

**Muskel1** · 10 Września 2021

Godzinę temu, pawelpawel111 napisał:

Znajomy ma a4 b9 i raz zakodował jakimś chińskim ustrojstwem (obsugiwanym przez telefon) tryb skandynawski. Miał identyczne problemy jak ja, czyli brak świateł drogowych pomimo, iż niebieska kontrolka na desce się wyświetla. Po wyłączeniu tego trybu wszystko wróciło do normy. Zauważyłem że u mnie tylne swiatła postojowe świecą się cały czas ,przednie także. Nie ma wpływu na to pora dnia,nocy ani ustawienie przełącznika świateł.

**Muskel1** · 10 Września 2021

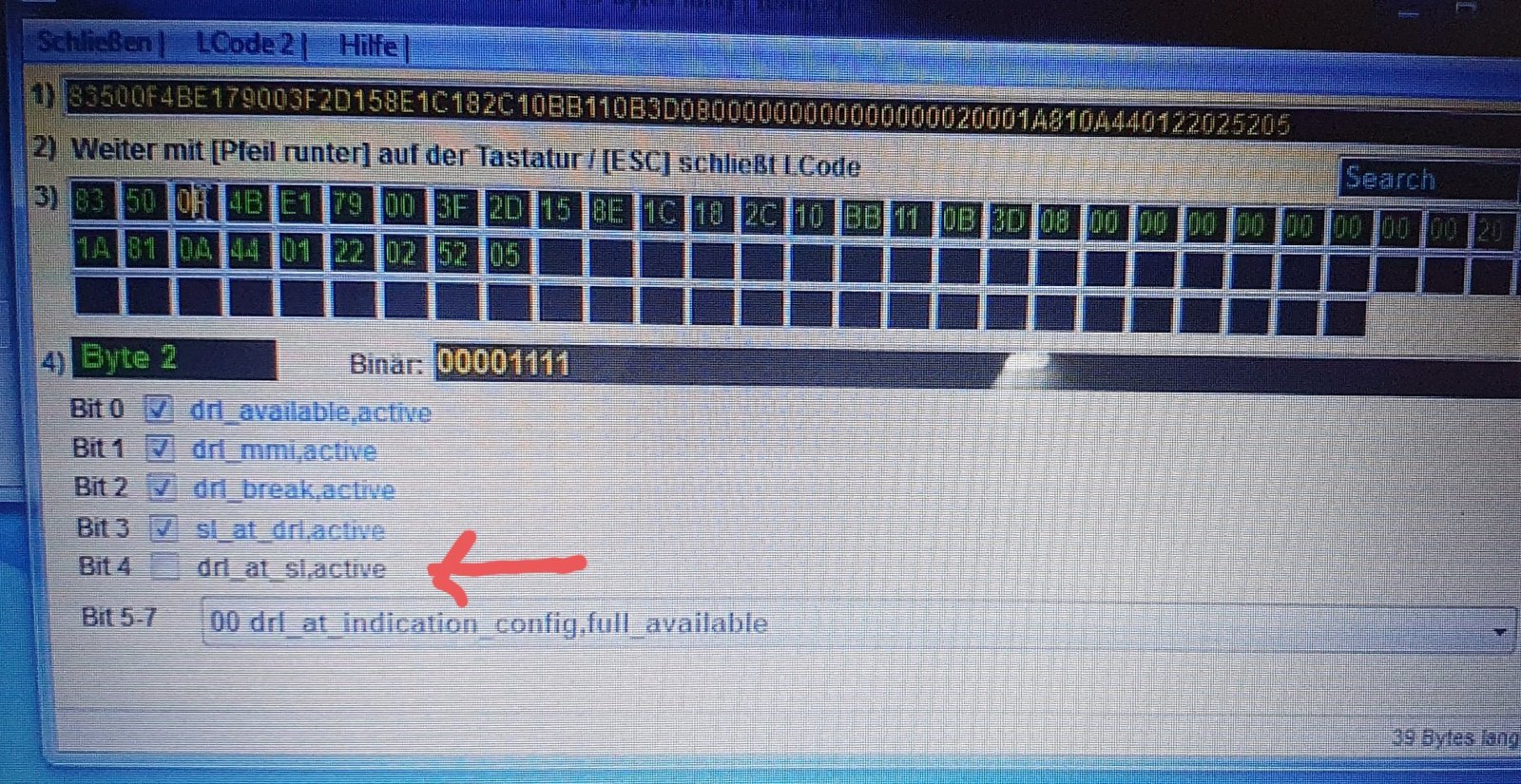

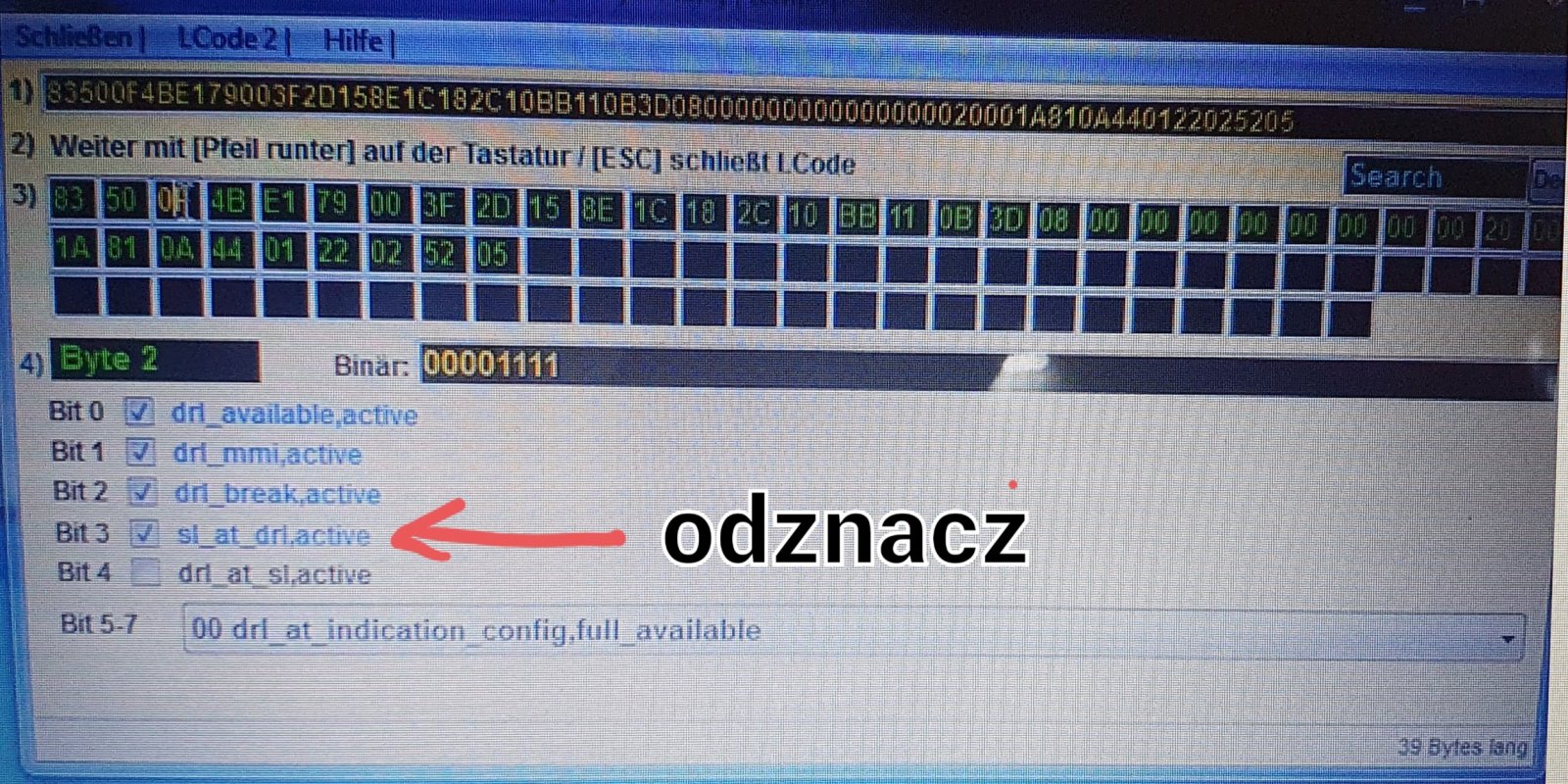

Dodatkowo ten powinien być zaznczony.

Masz nagrzebane w kodowaniach i kij wie gdzie tam problem leży. Sam tam grzebałeś i zmieniałeś kodowania?

Edytowane 10 Września 2021 przez Muskel1

**pawelpawel111** · 10 Września 2021

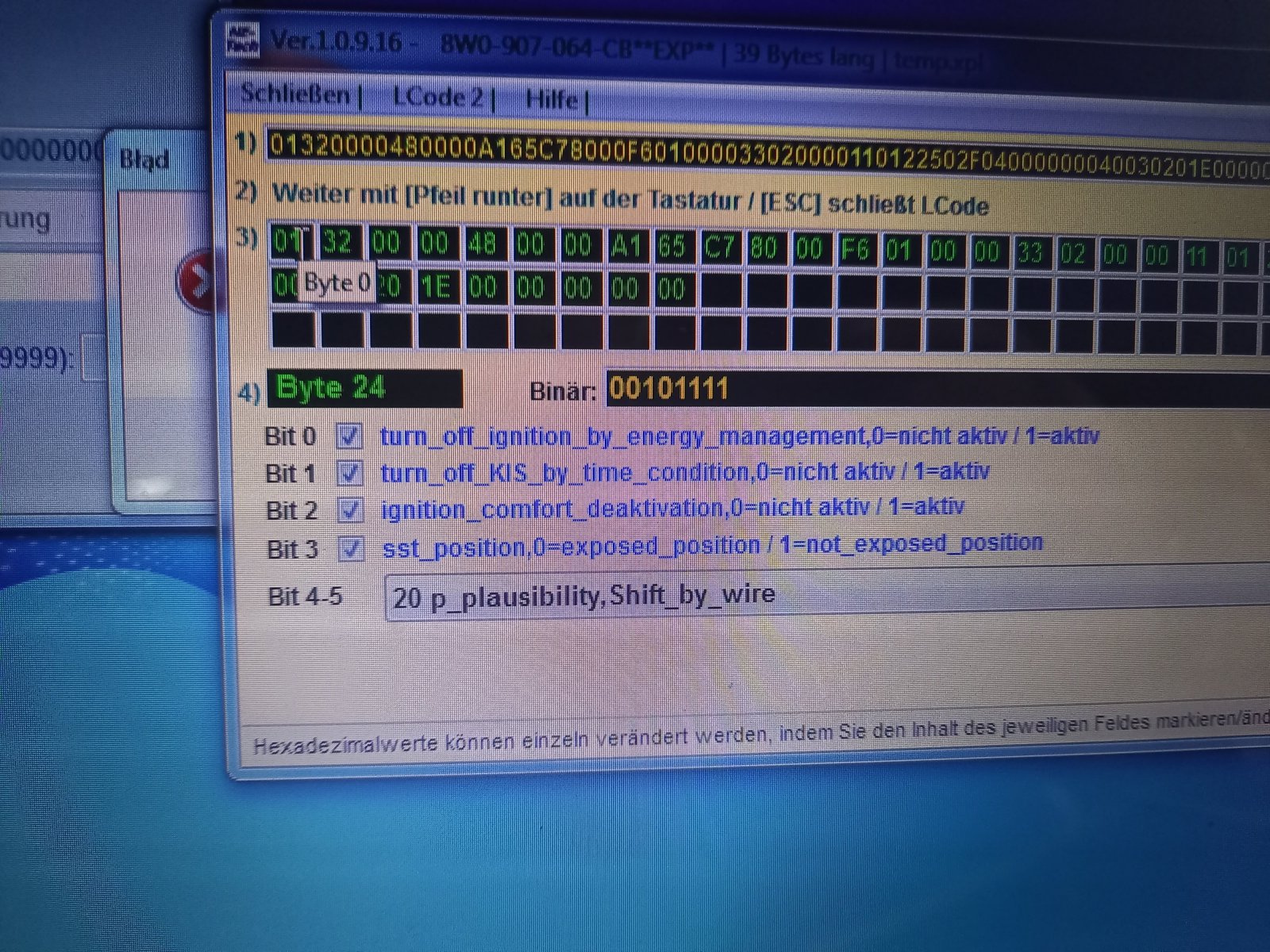

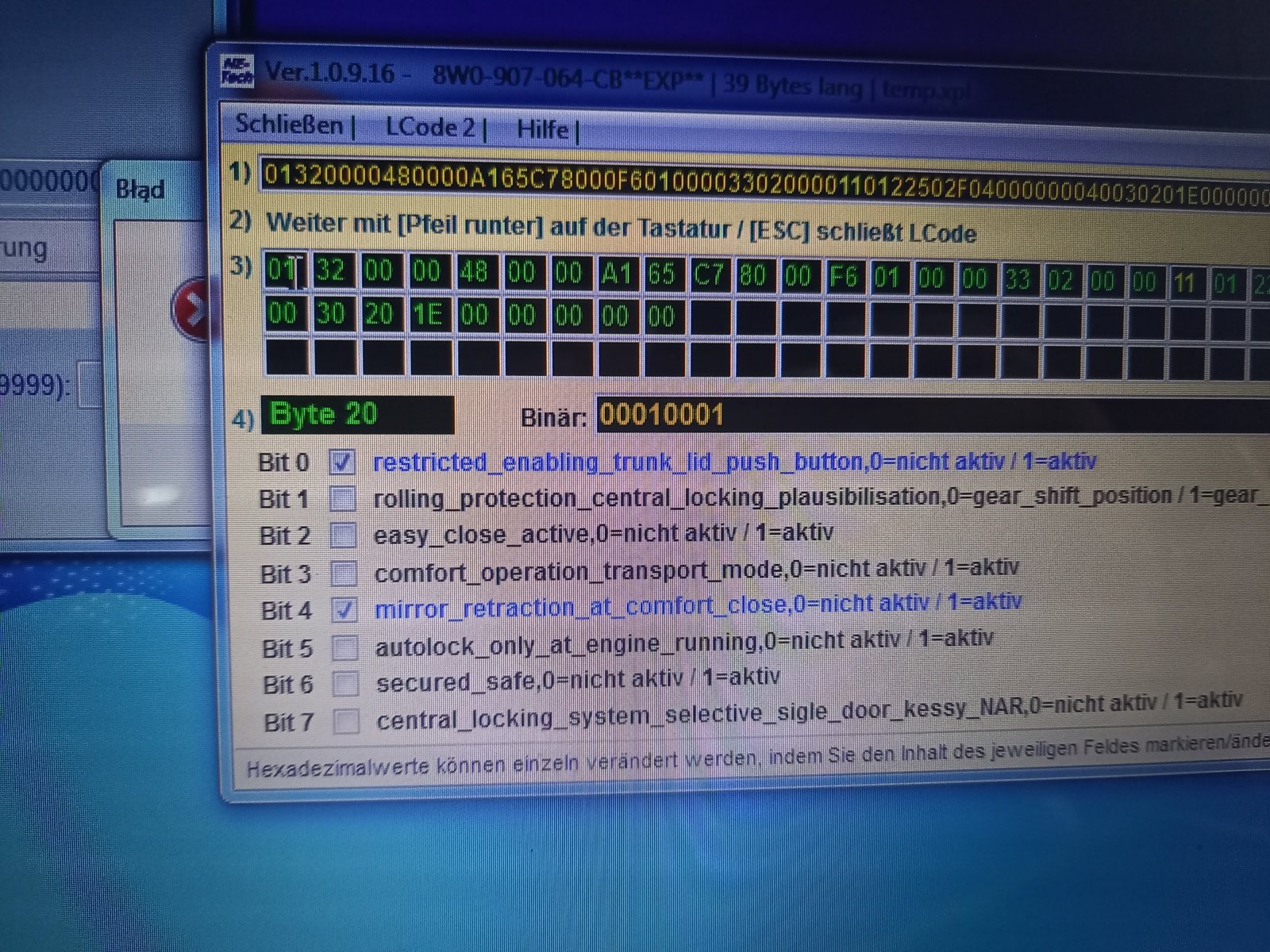

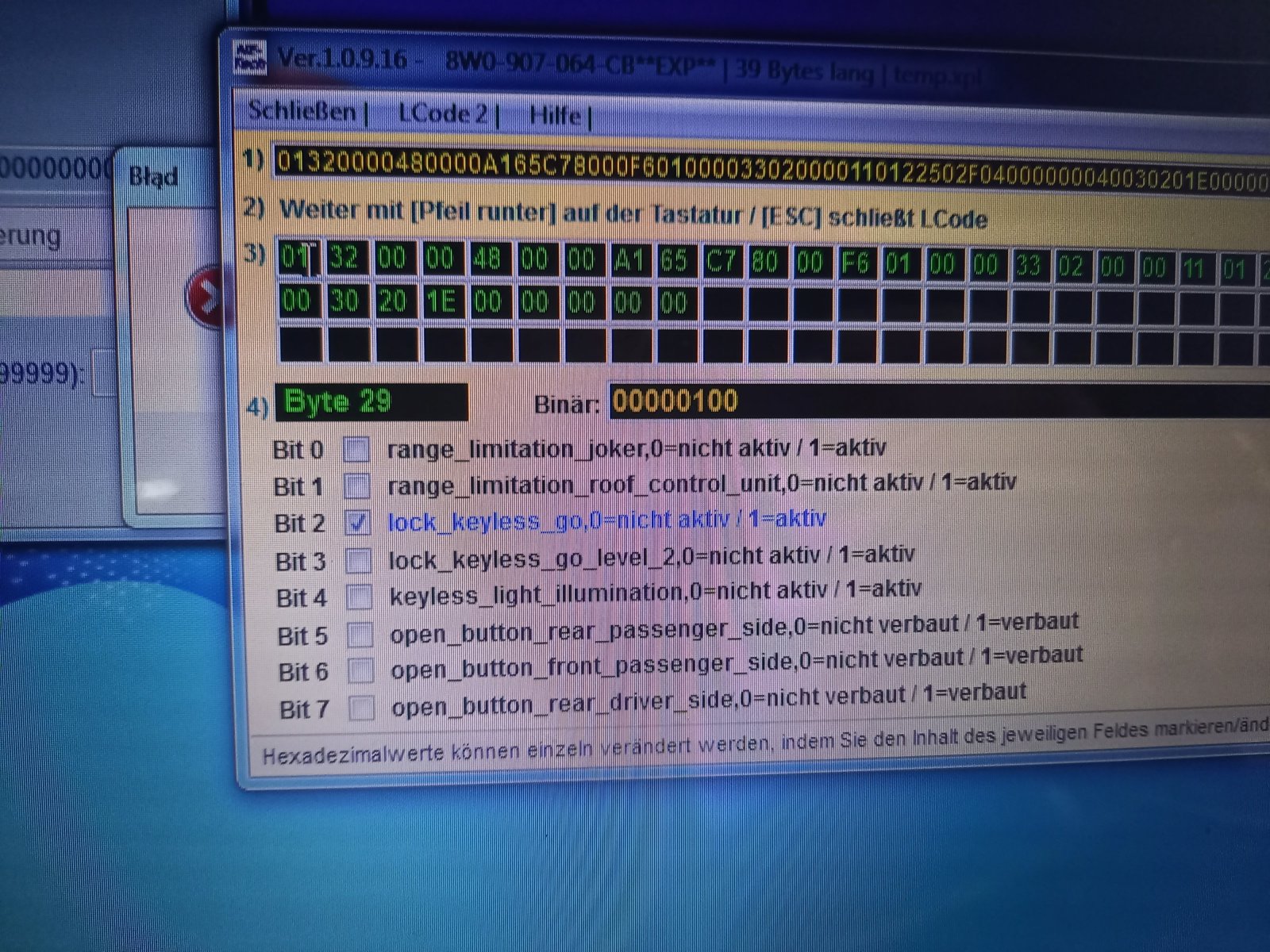

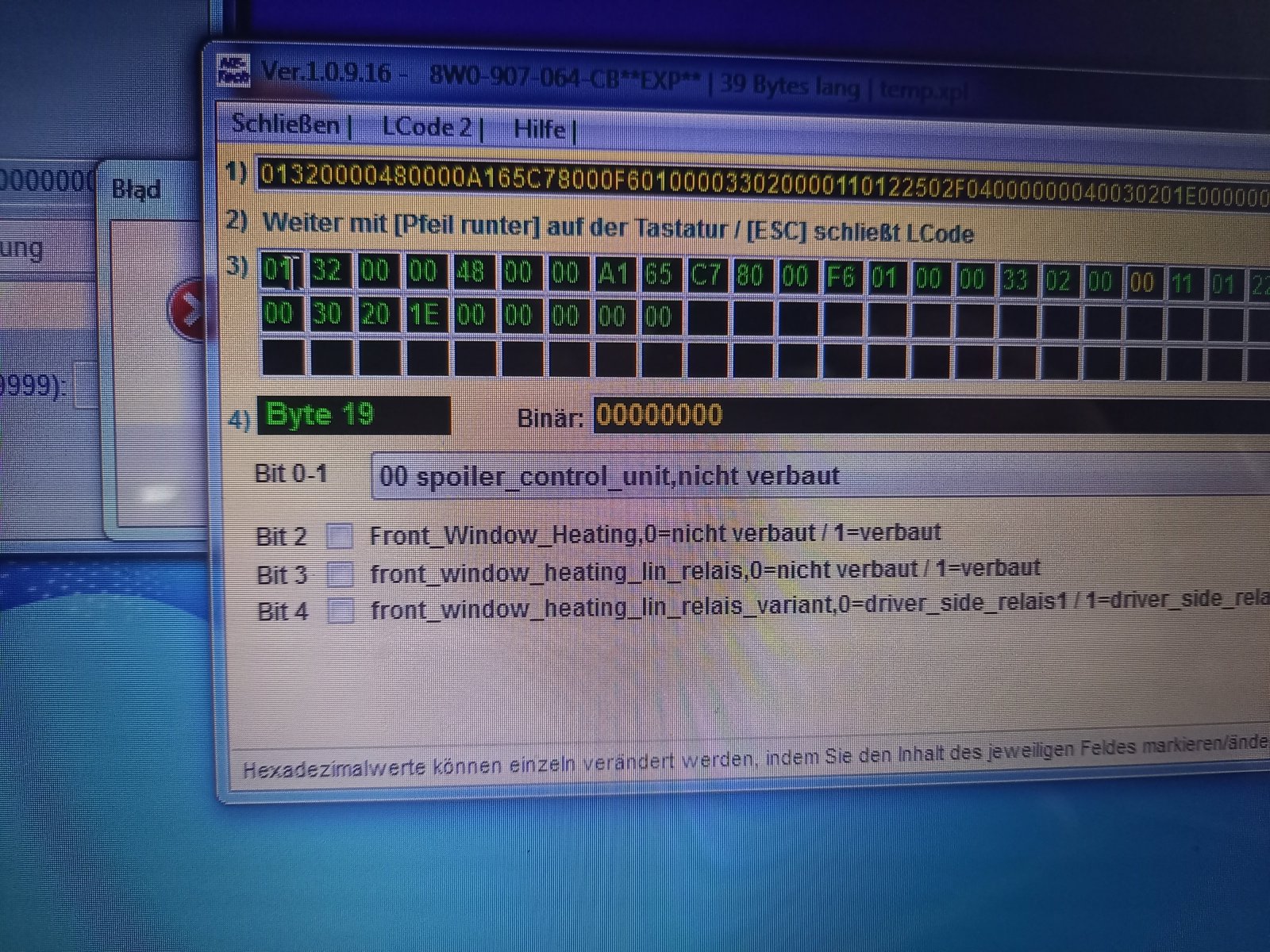

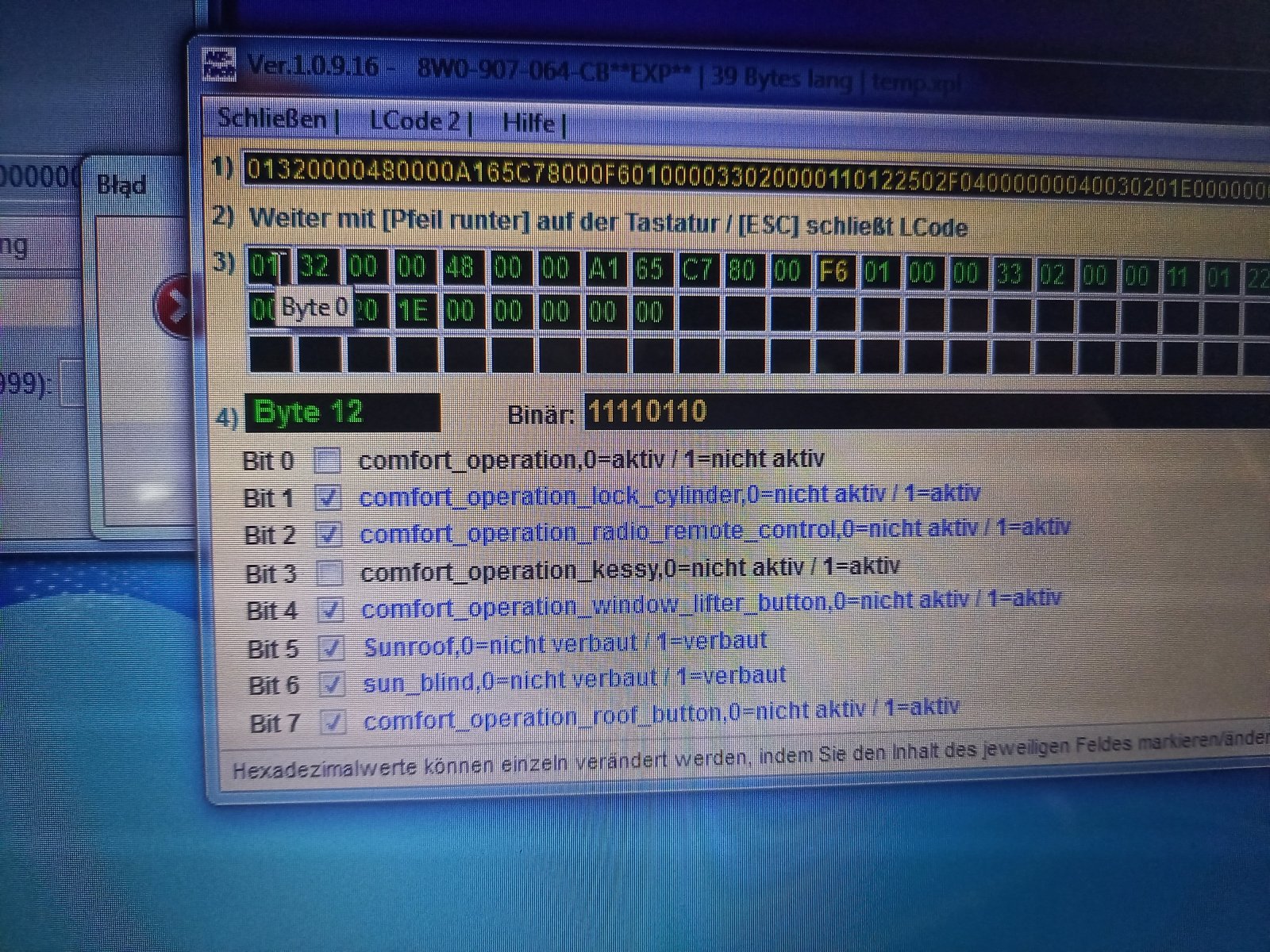

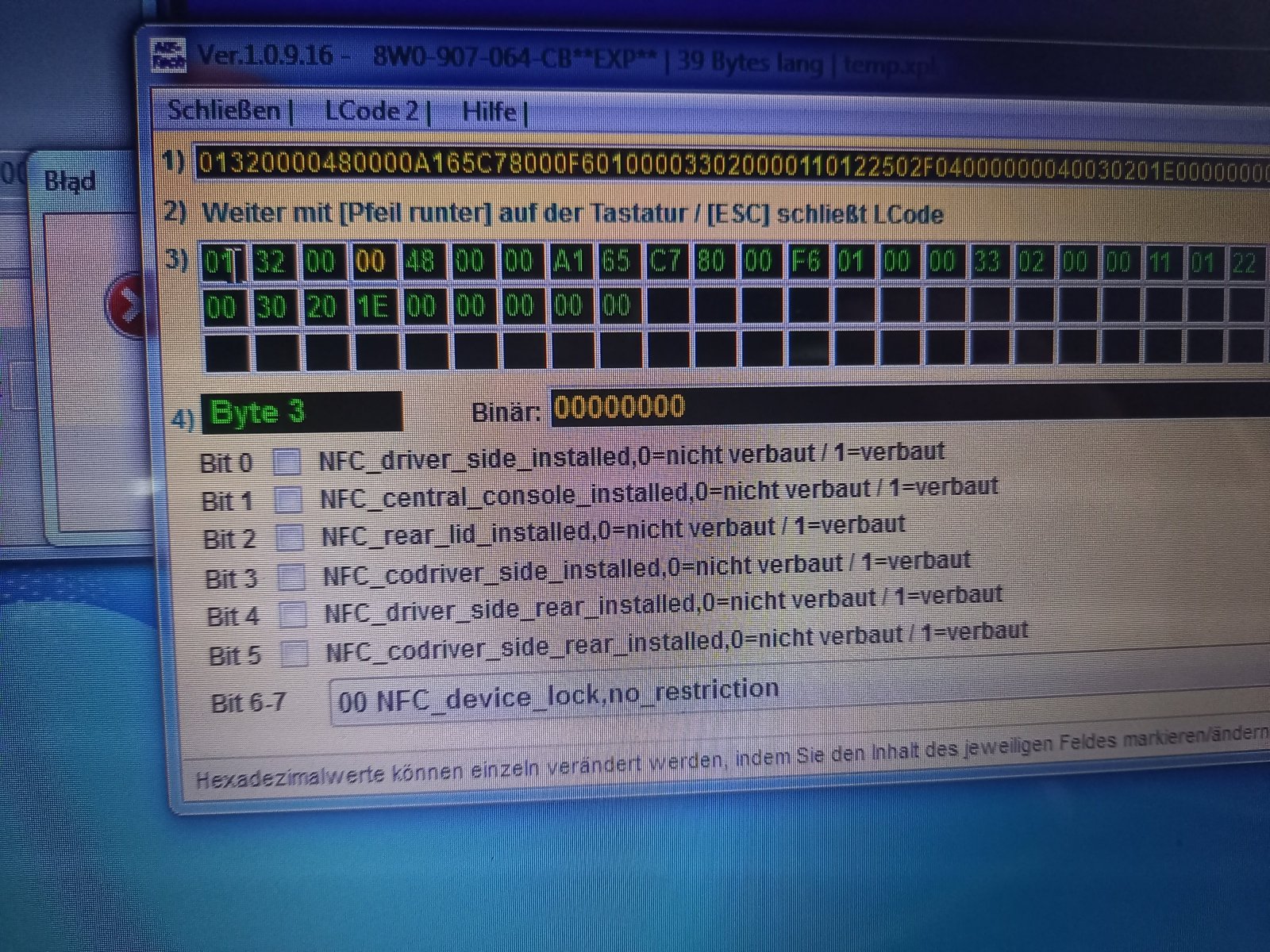

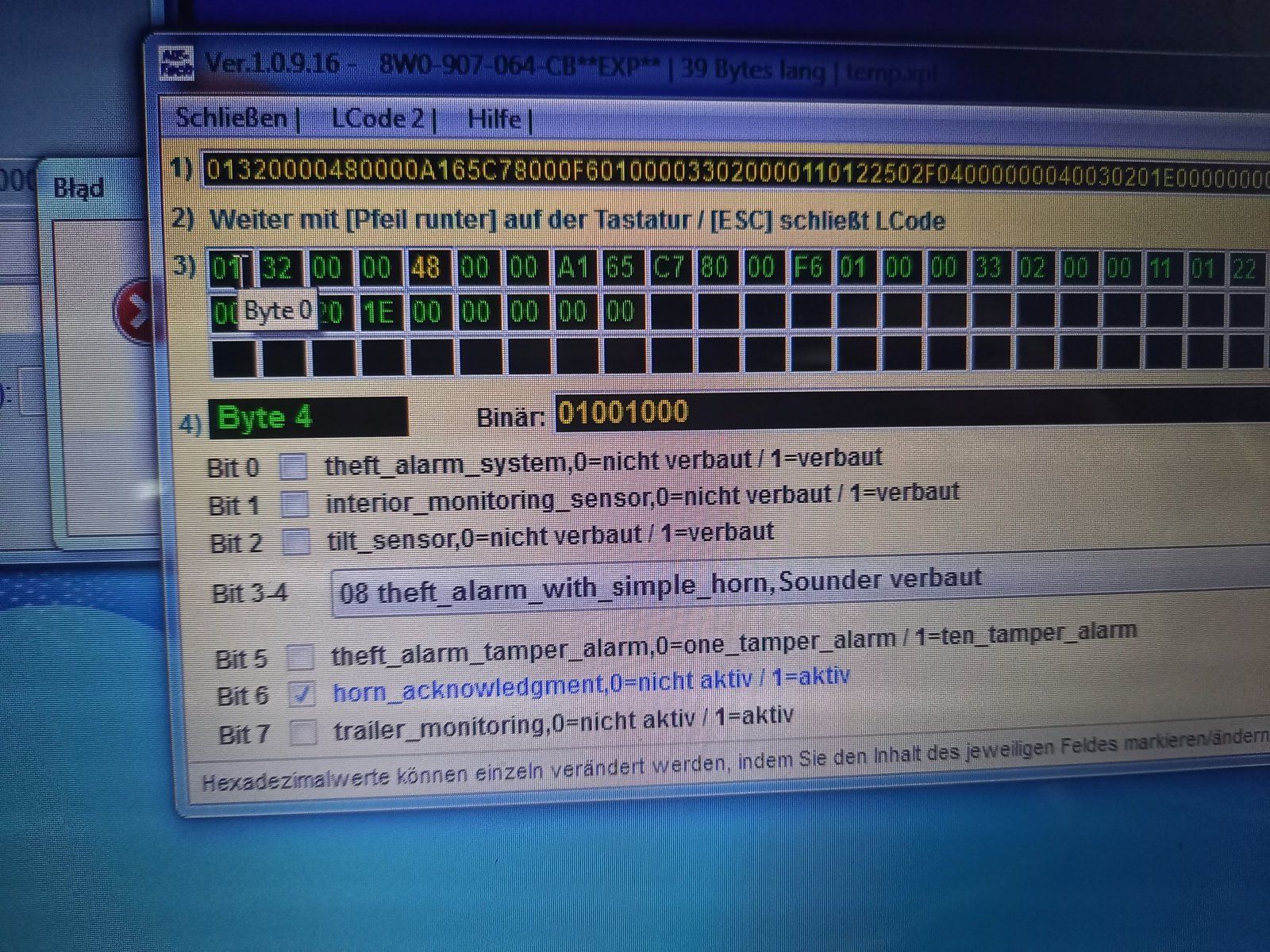

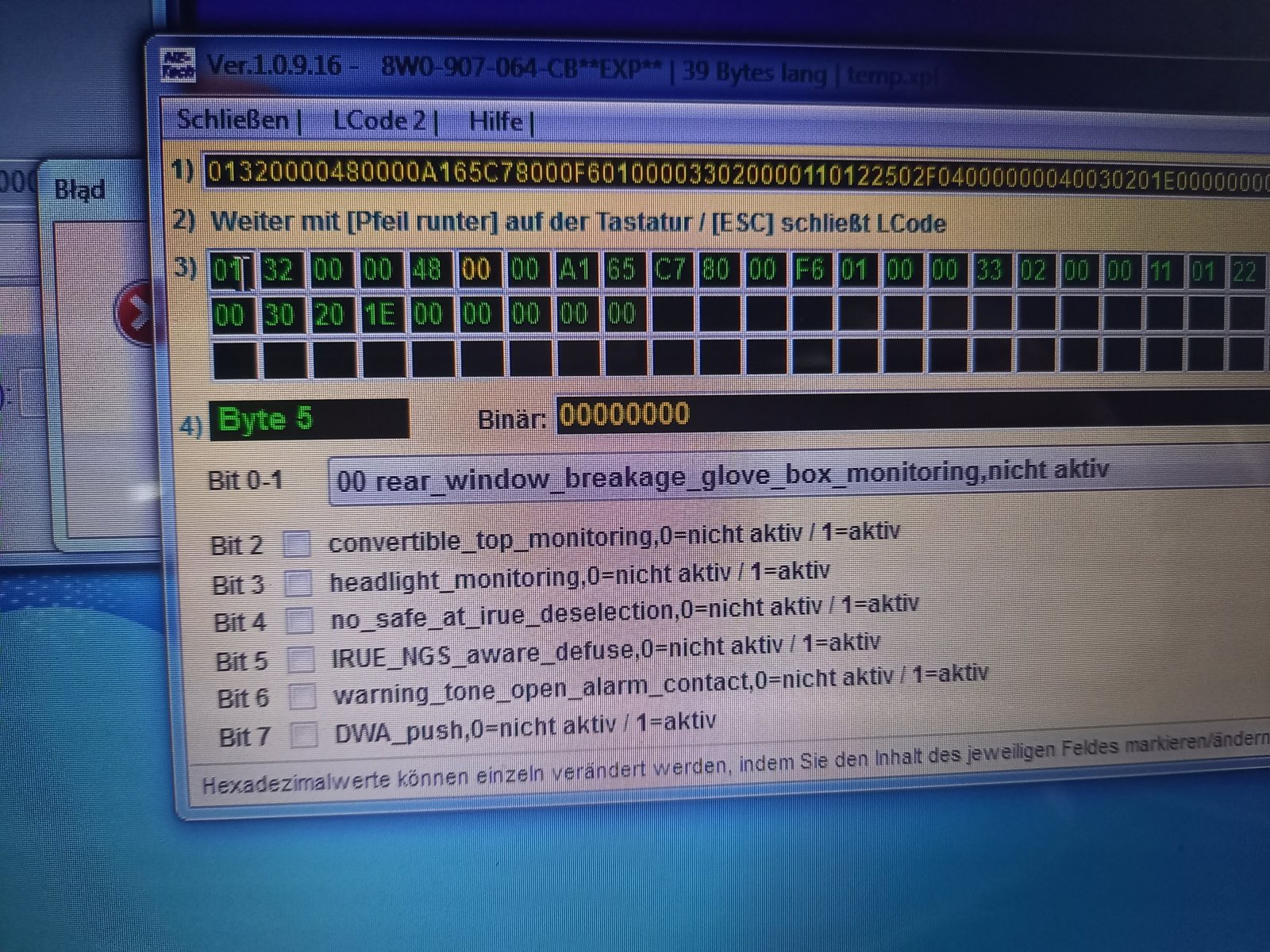

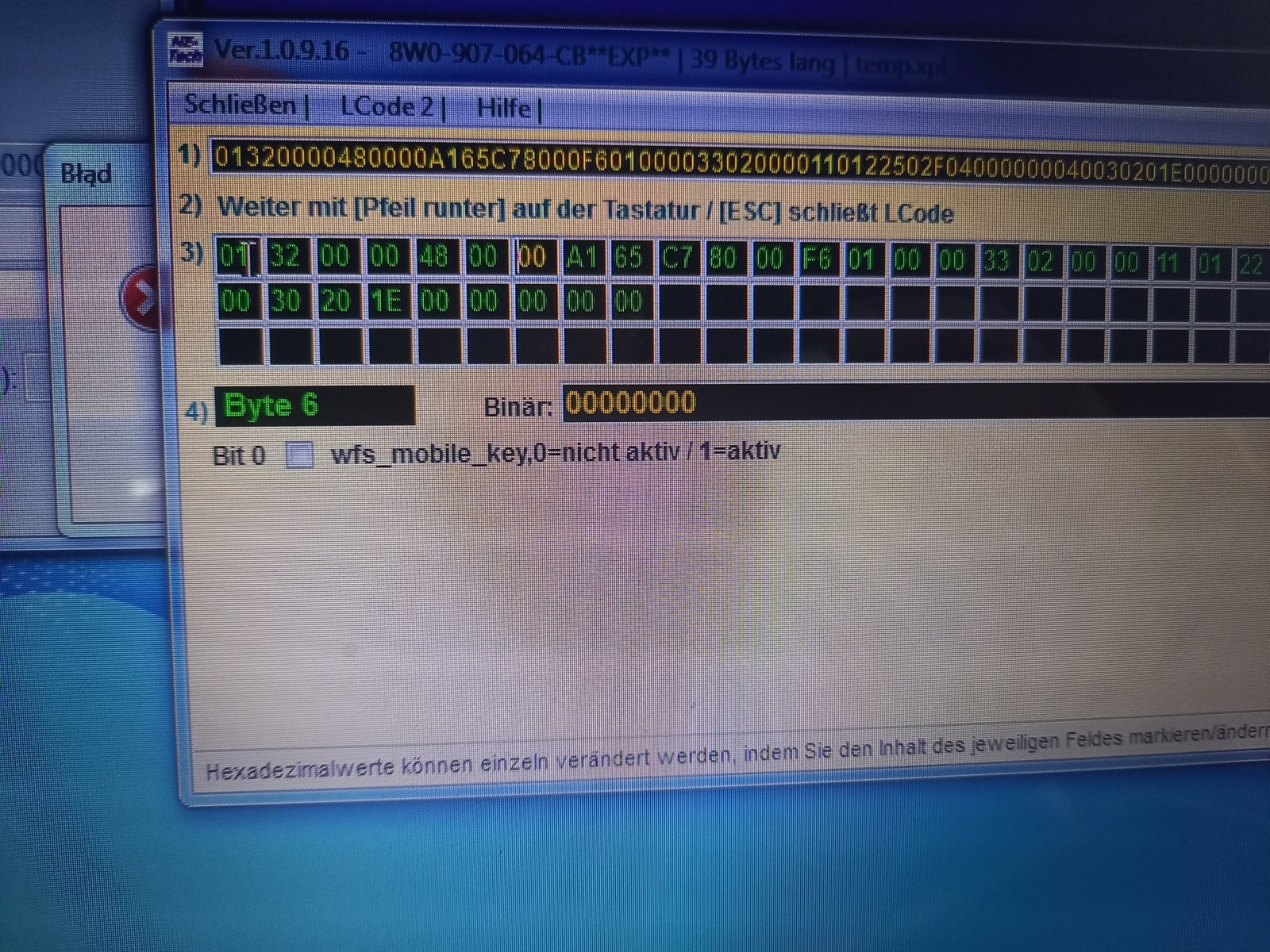

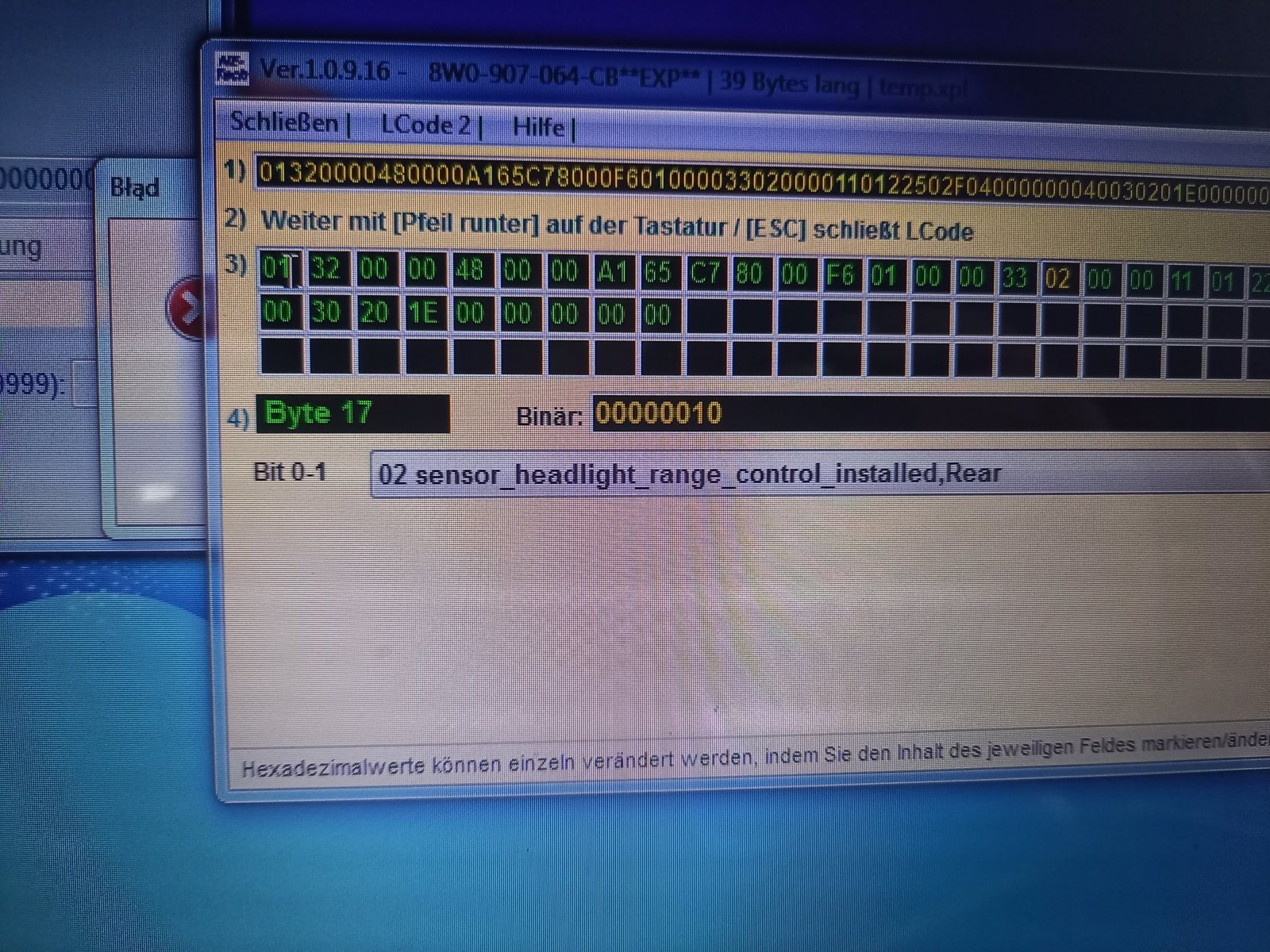

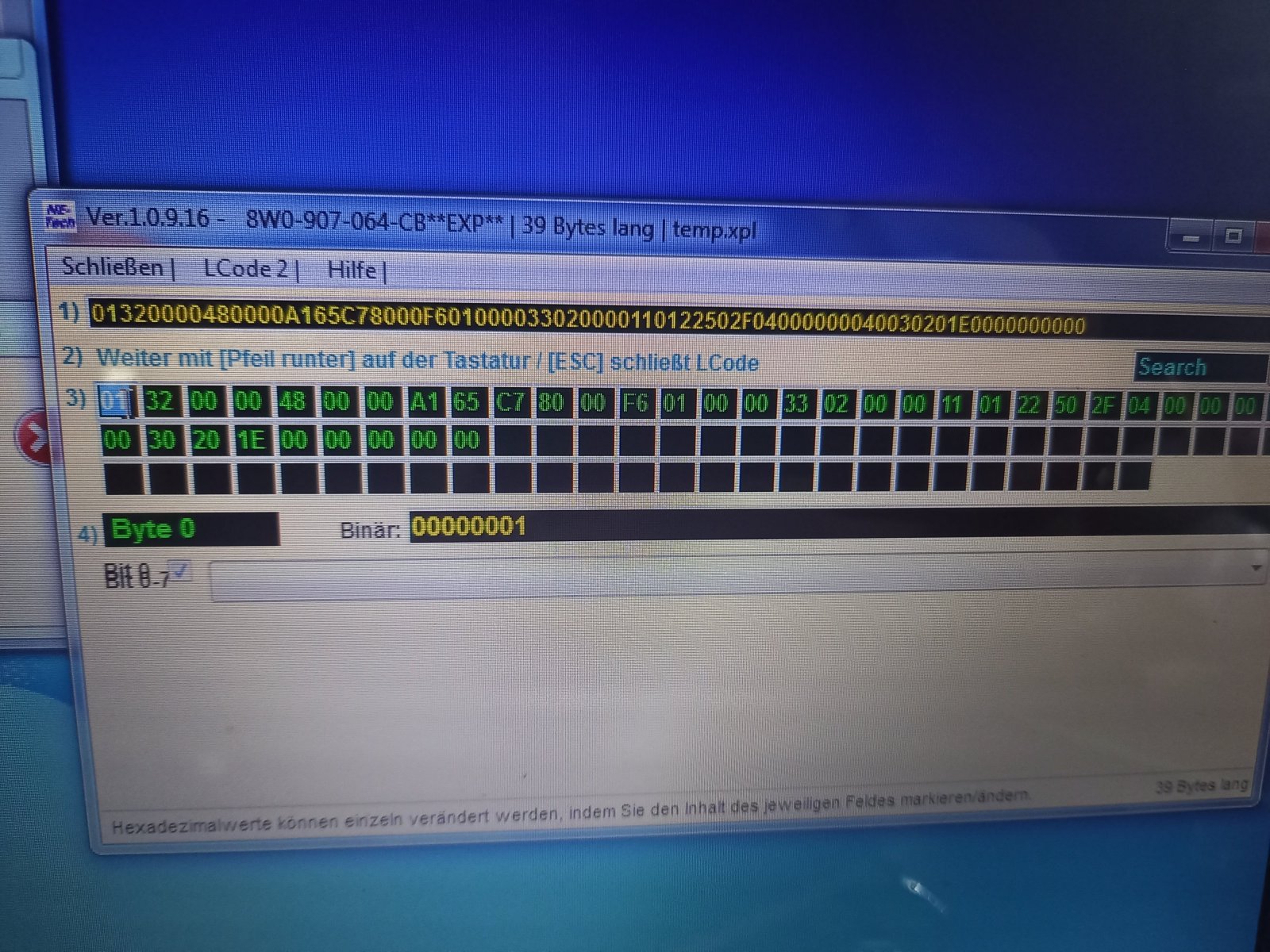

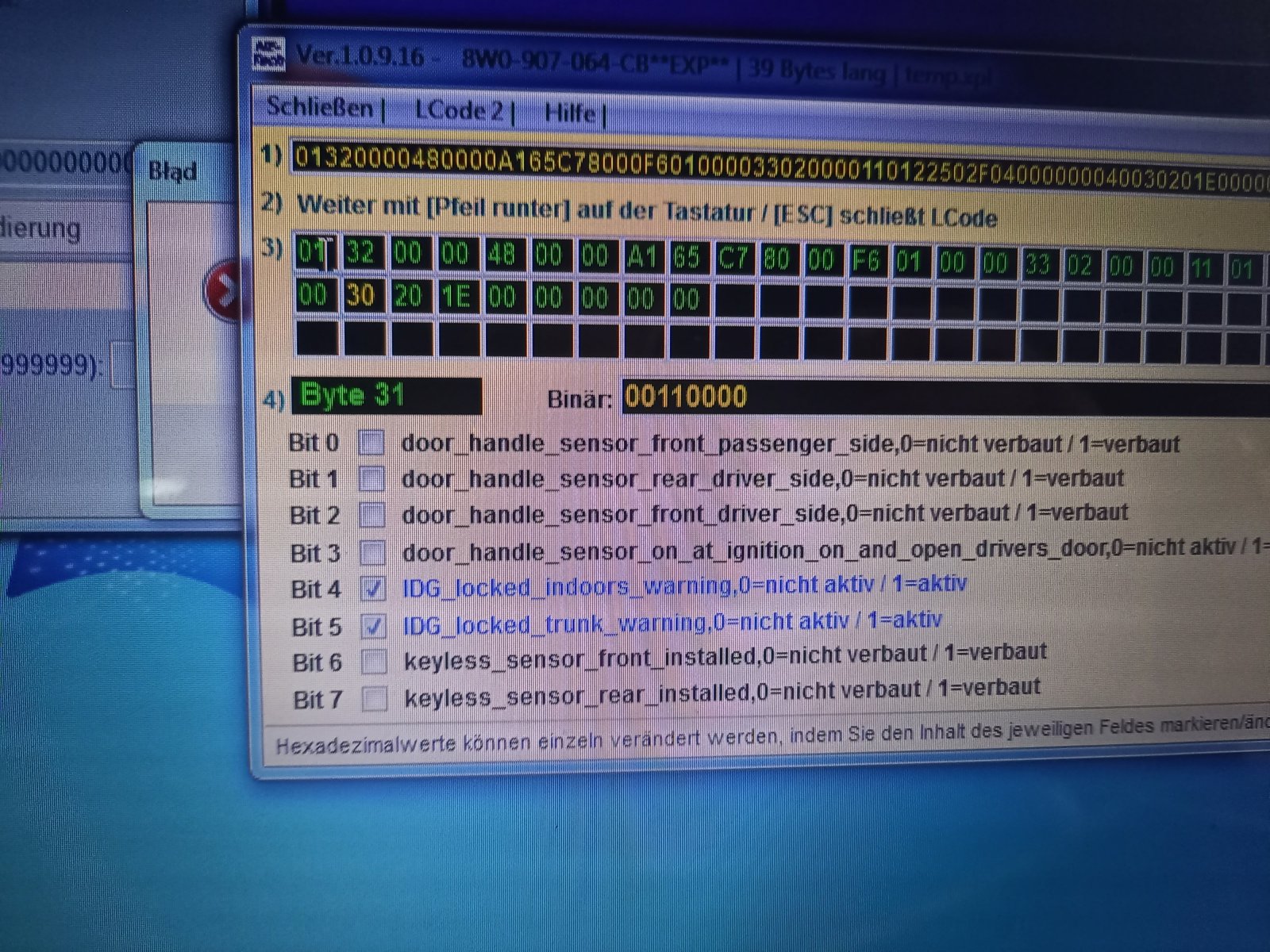

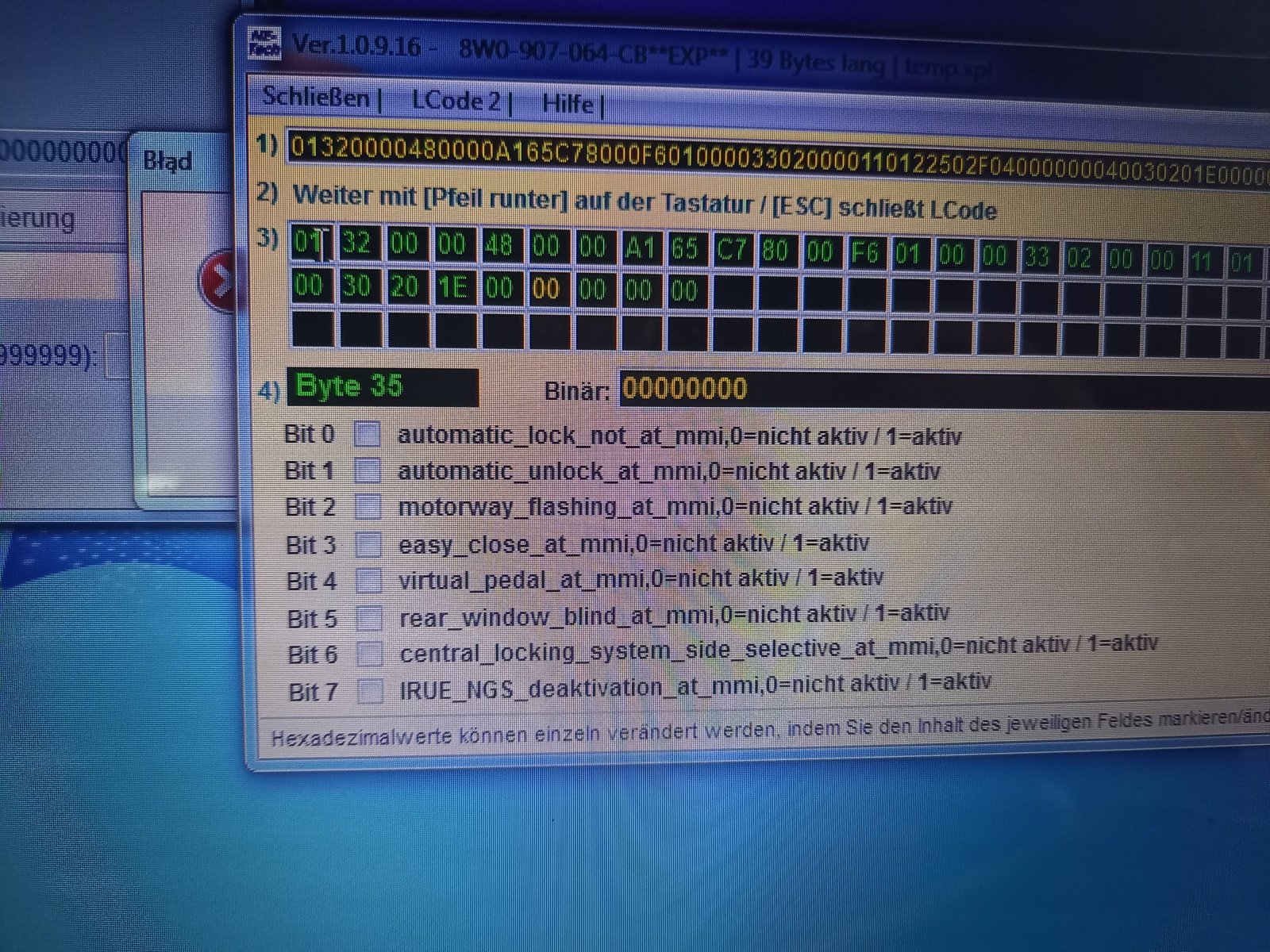

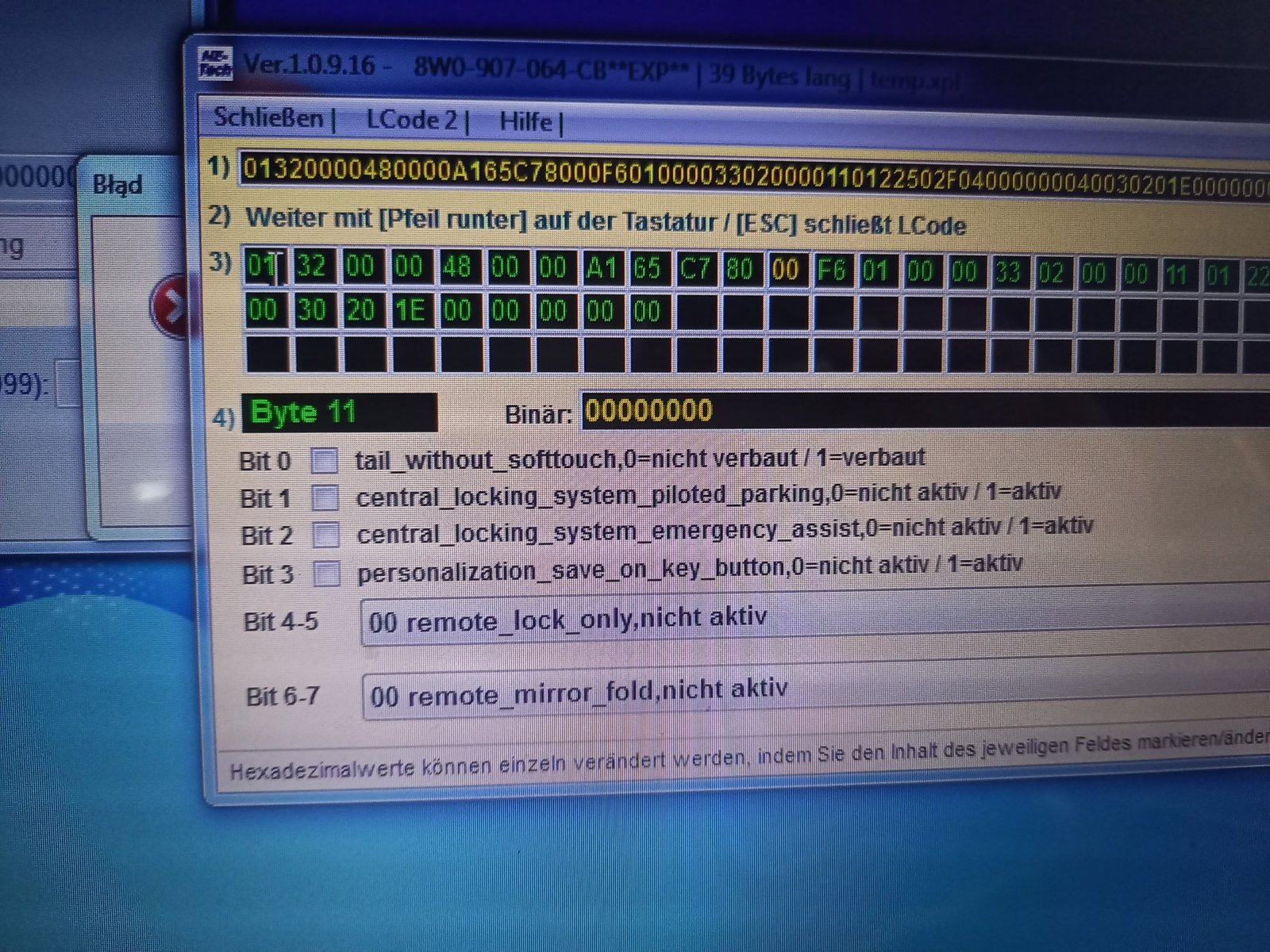

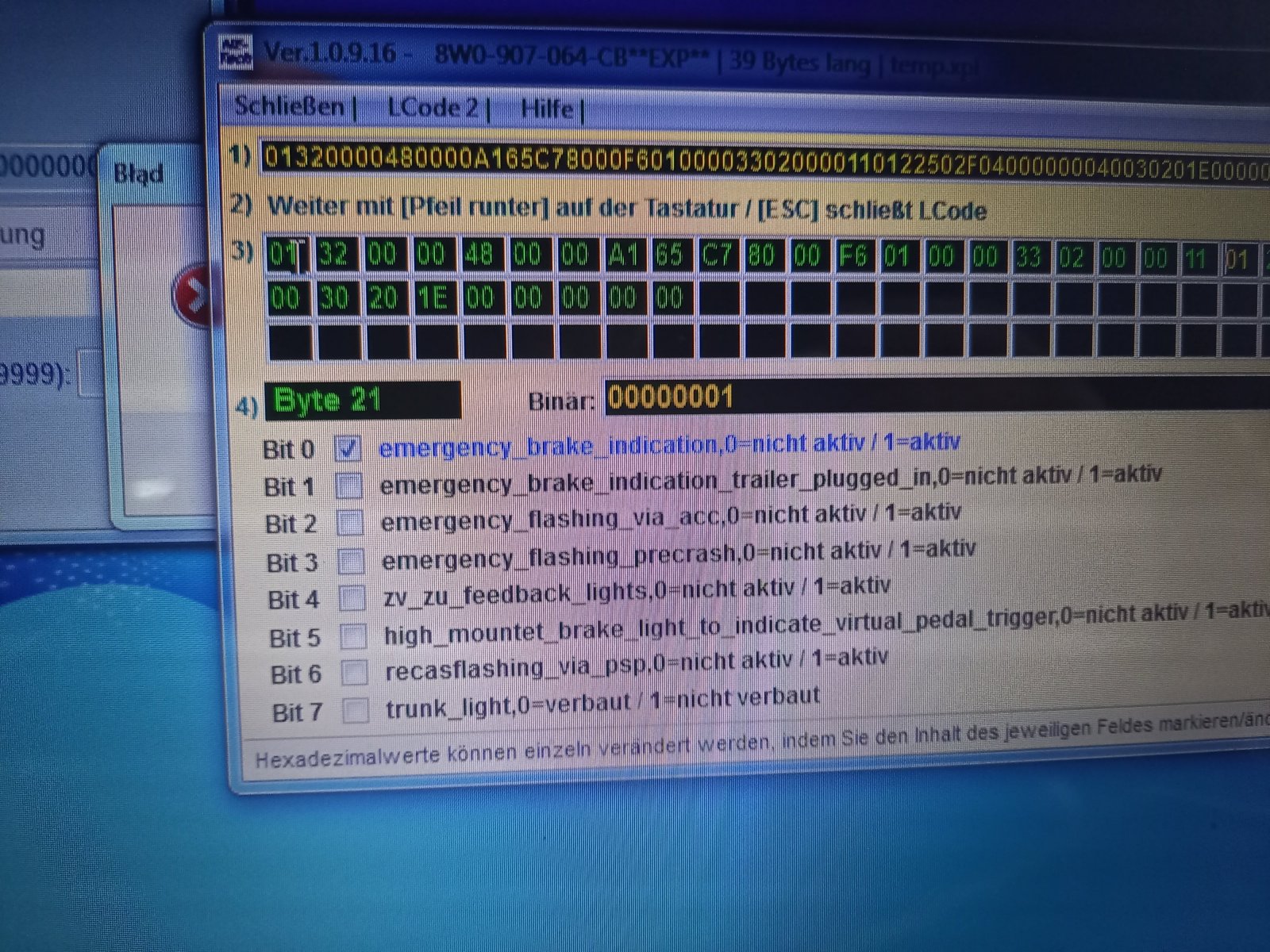

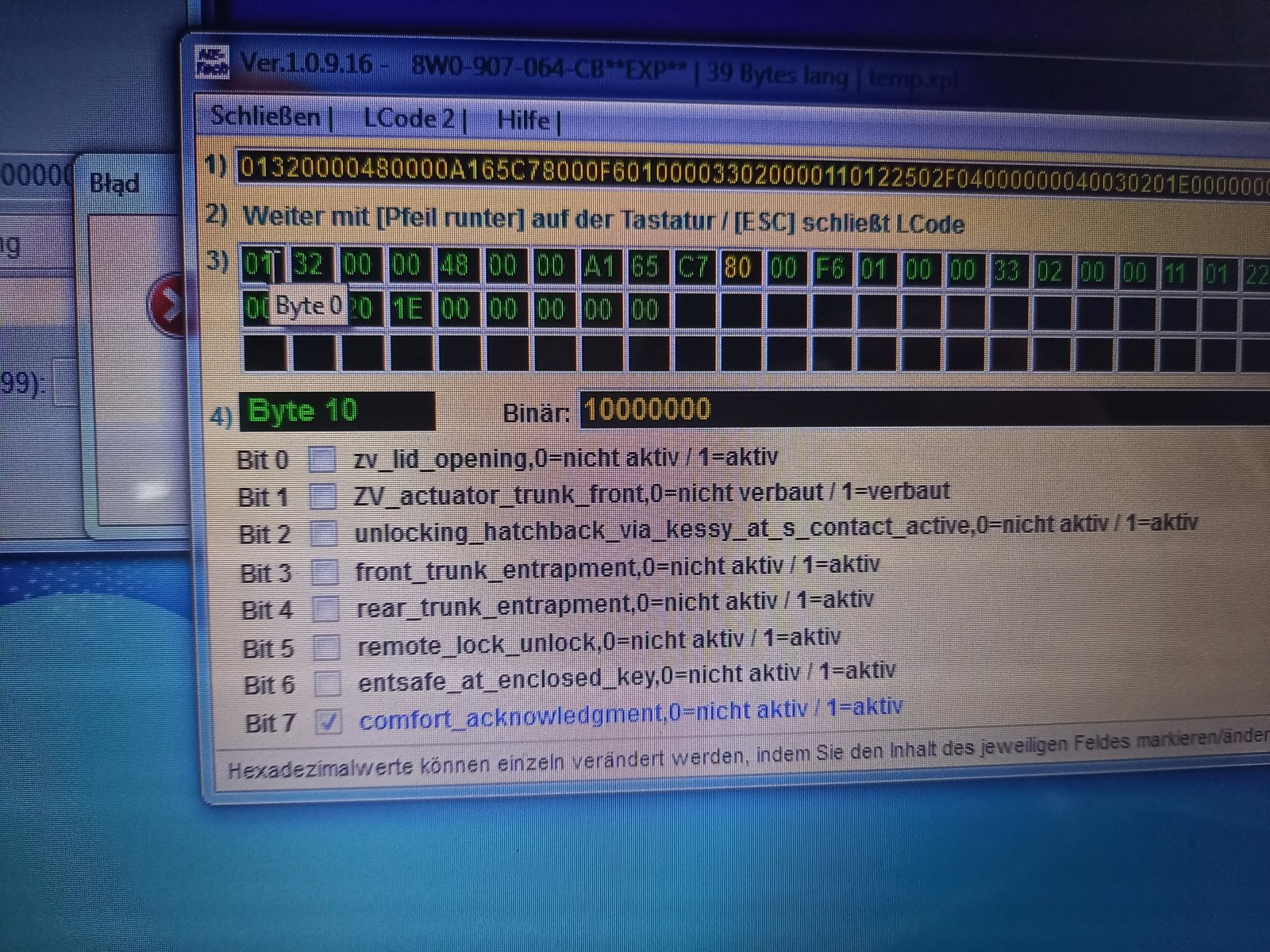

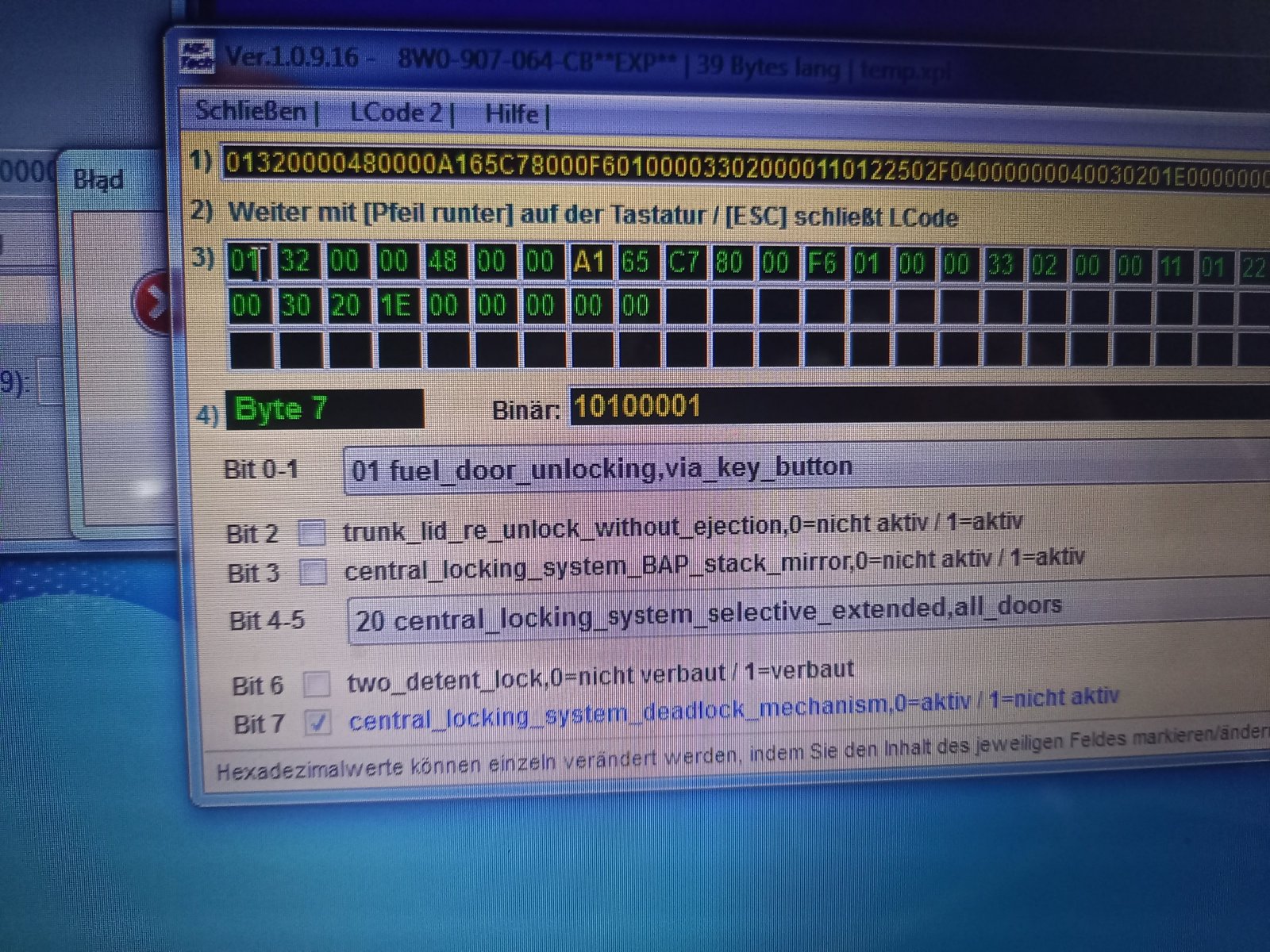

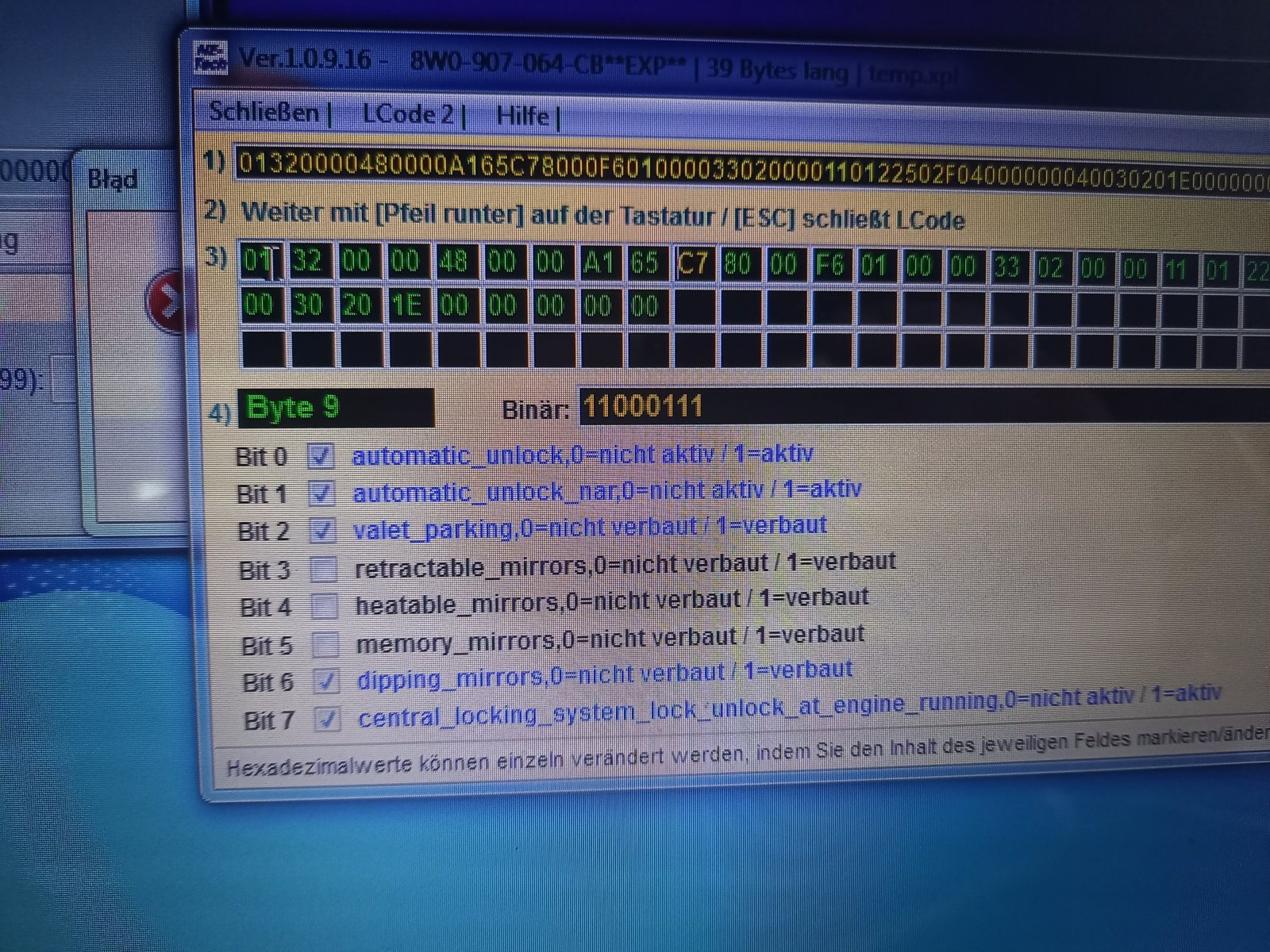

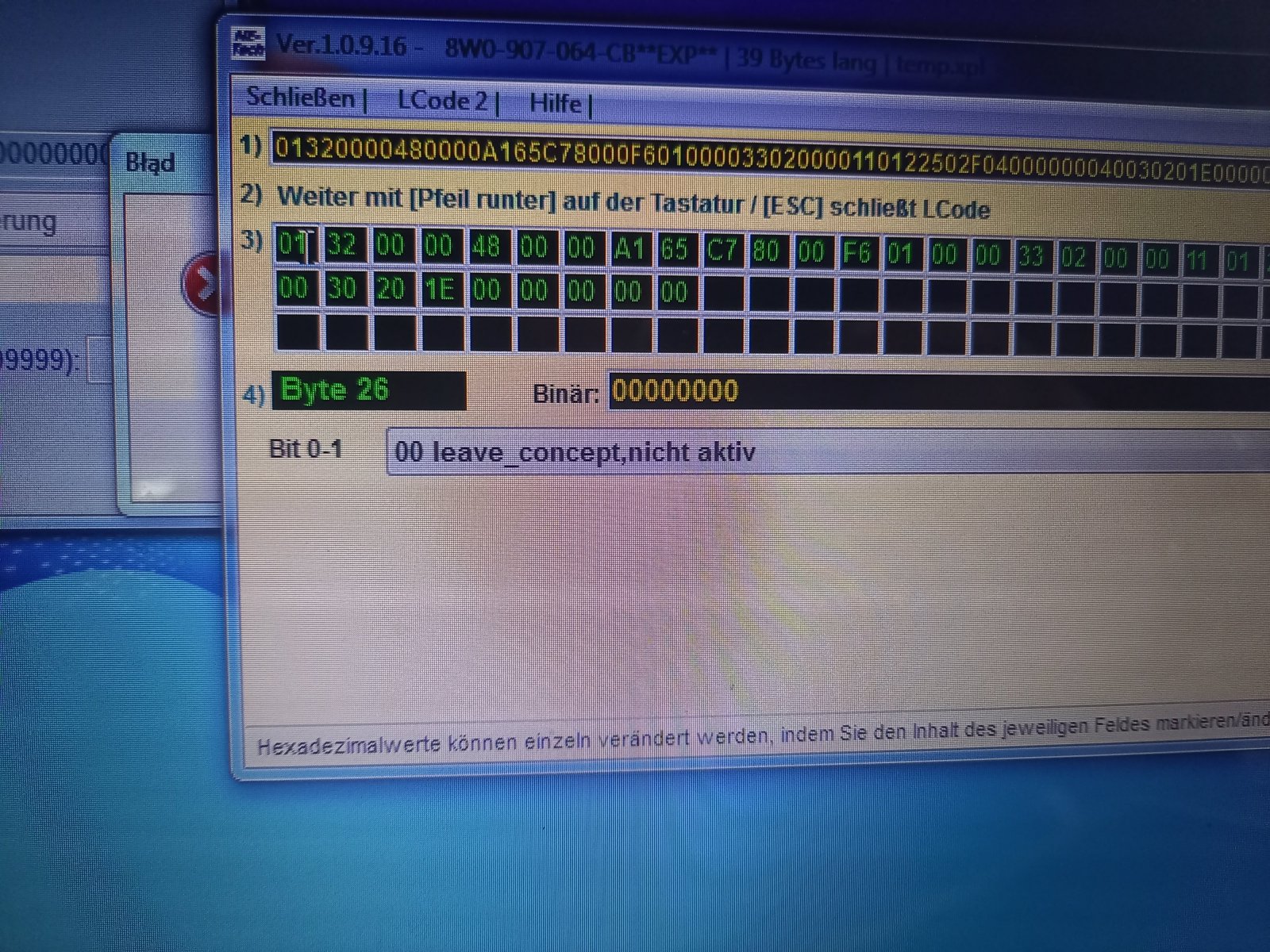

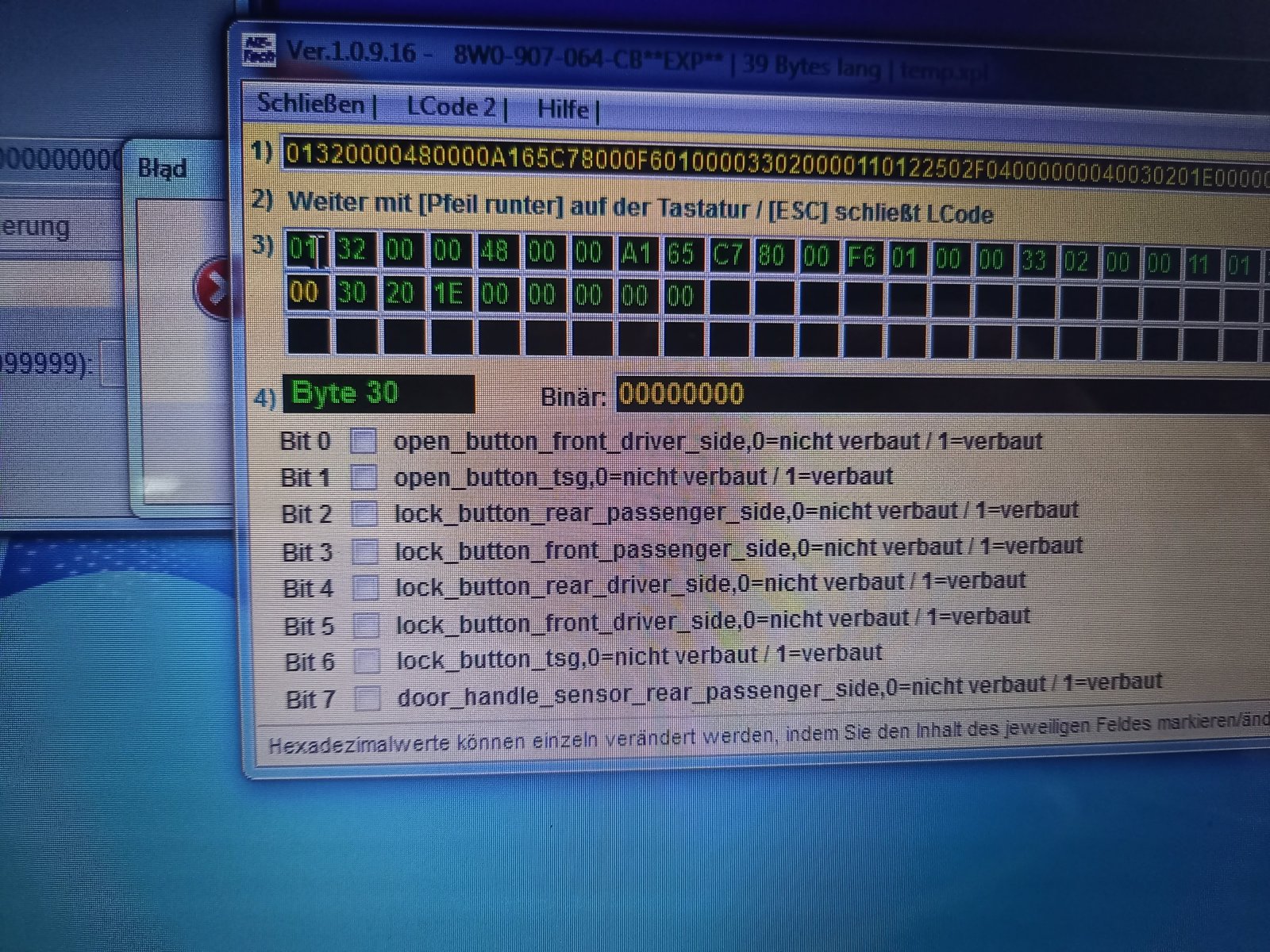

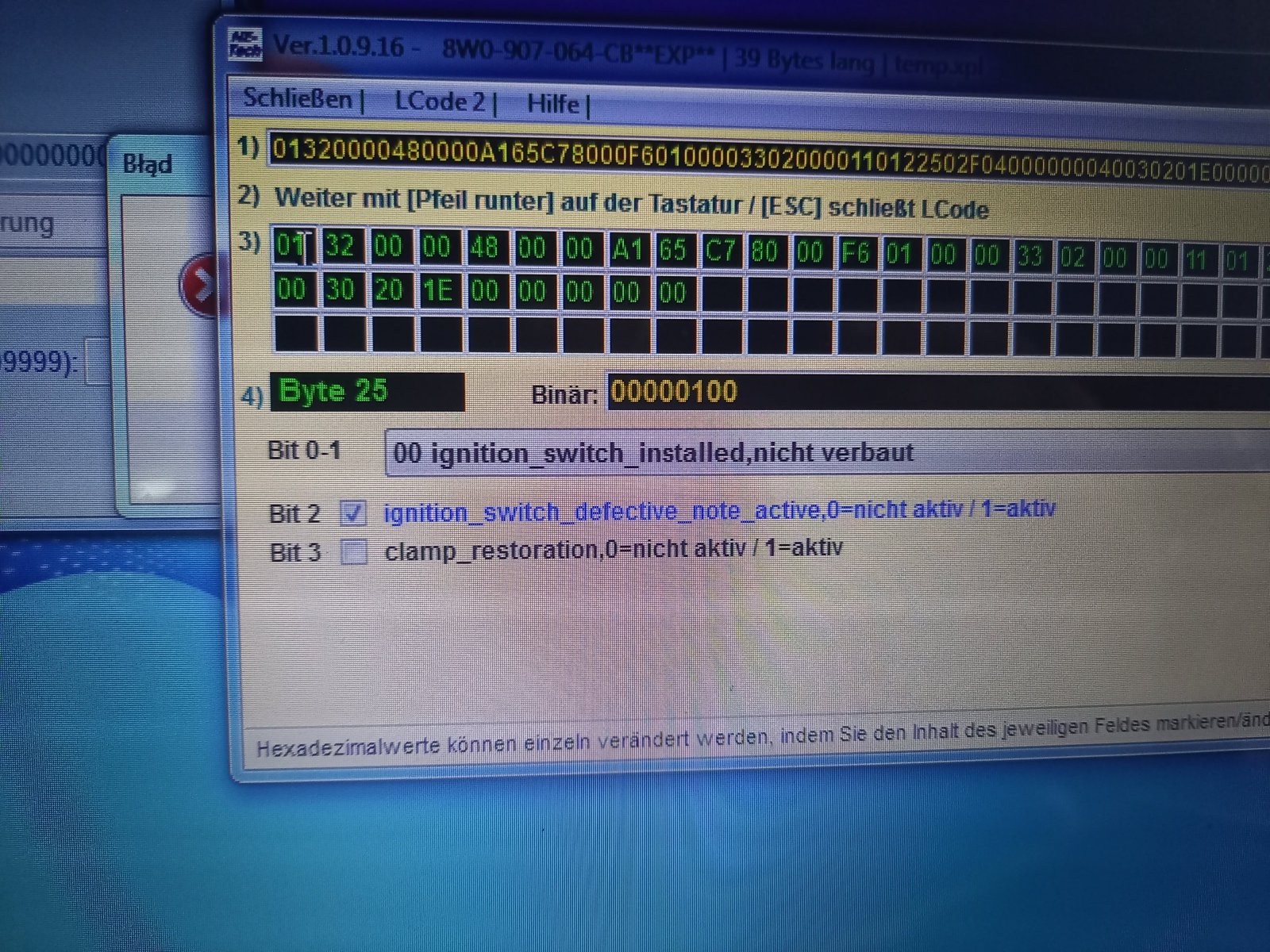

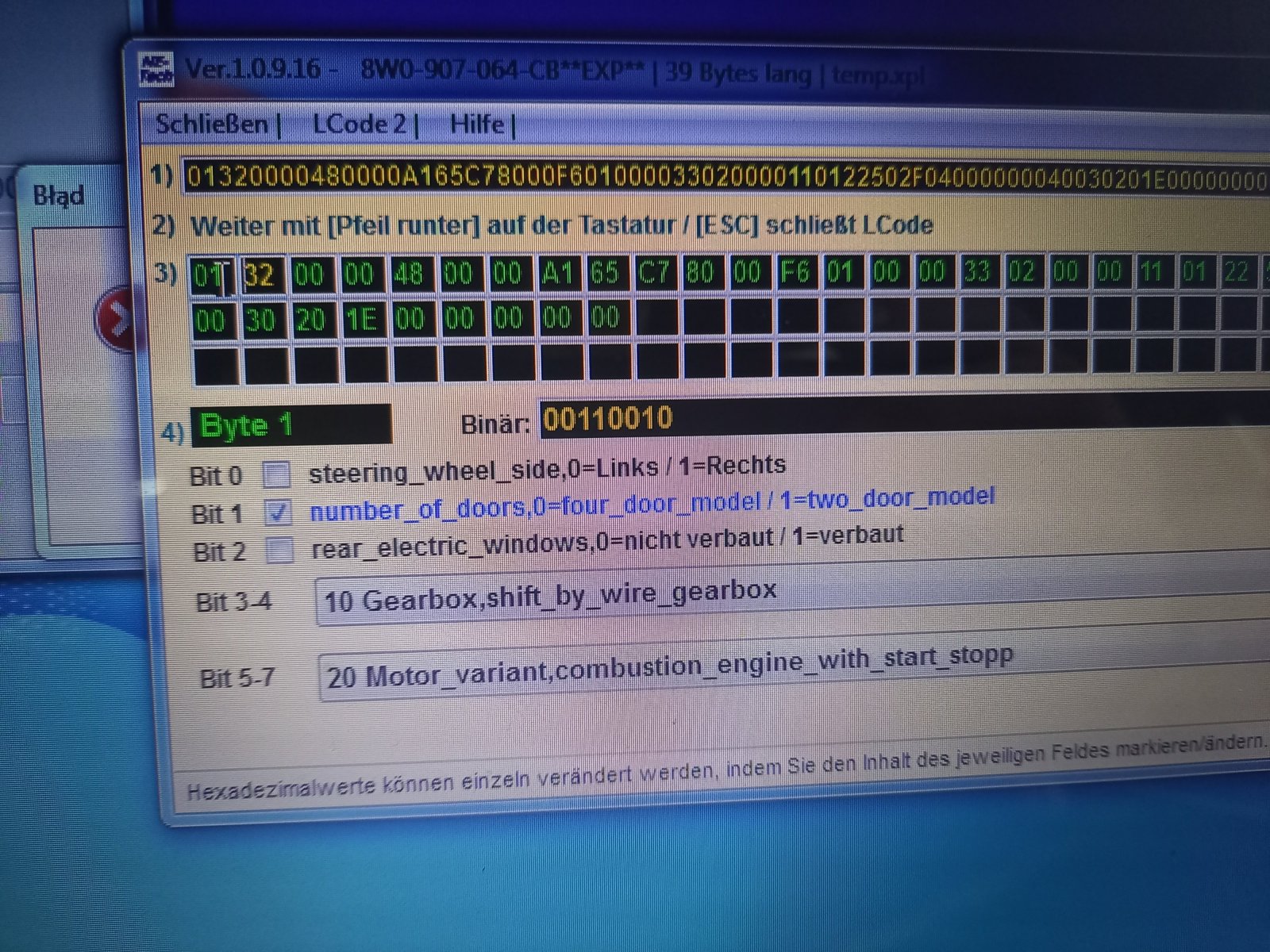

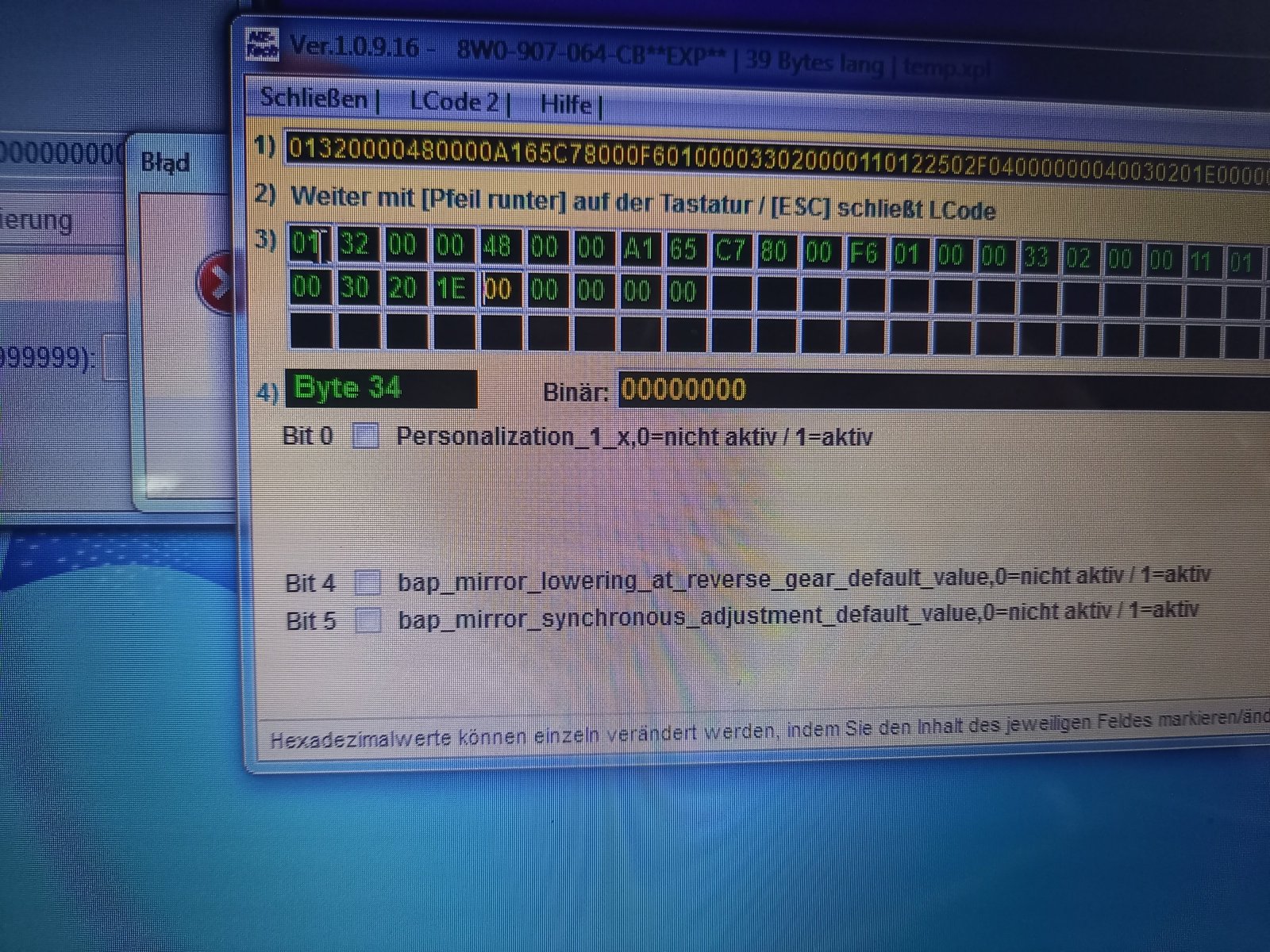

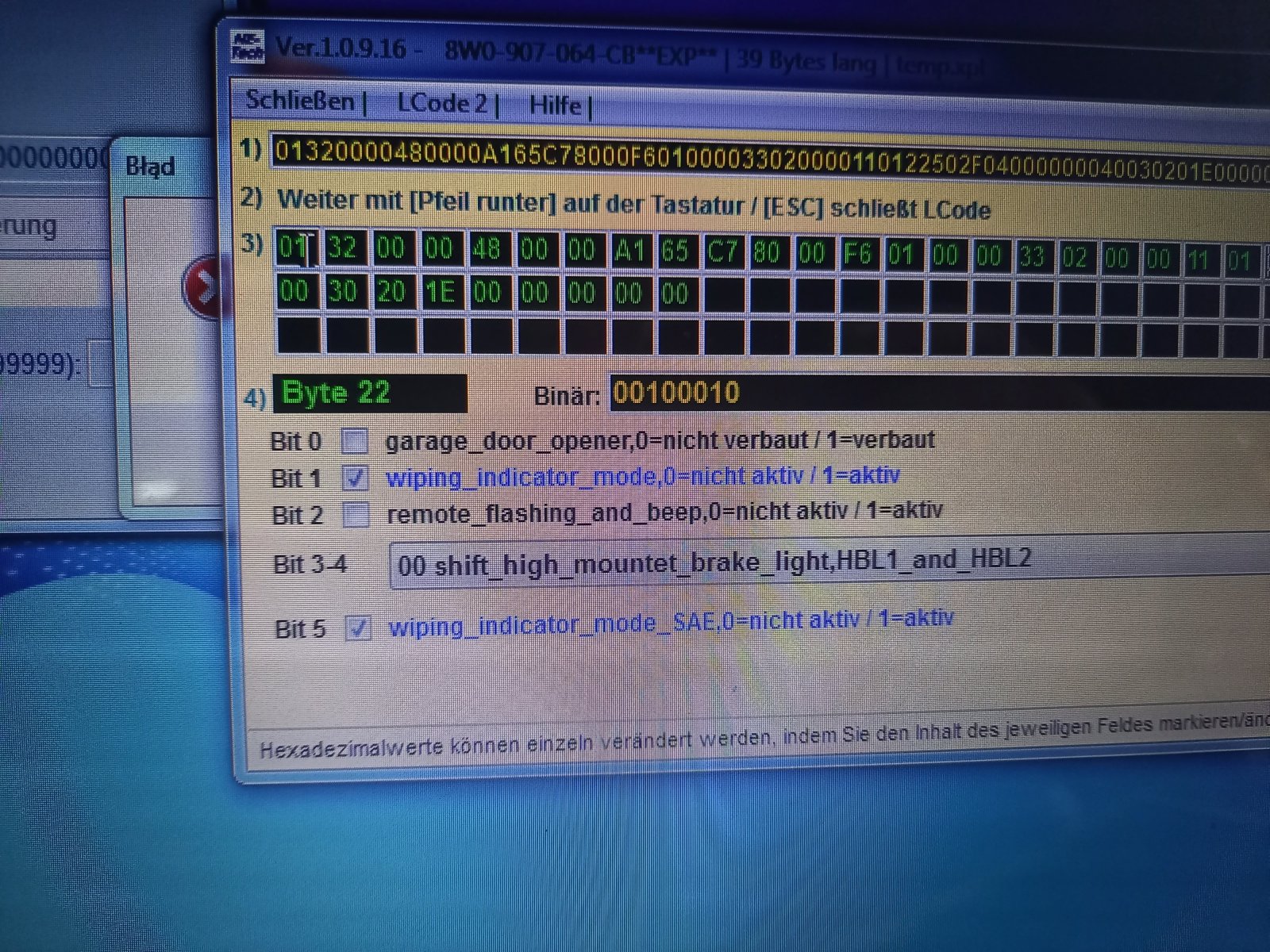

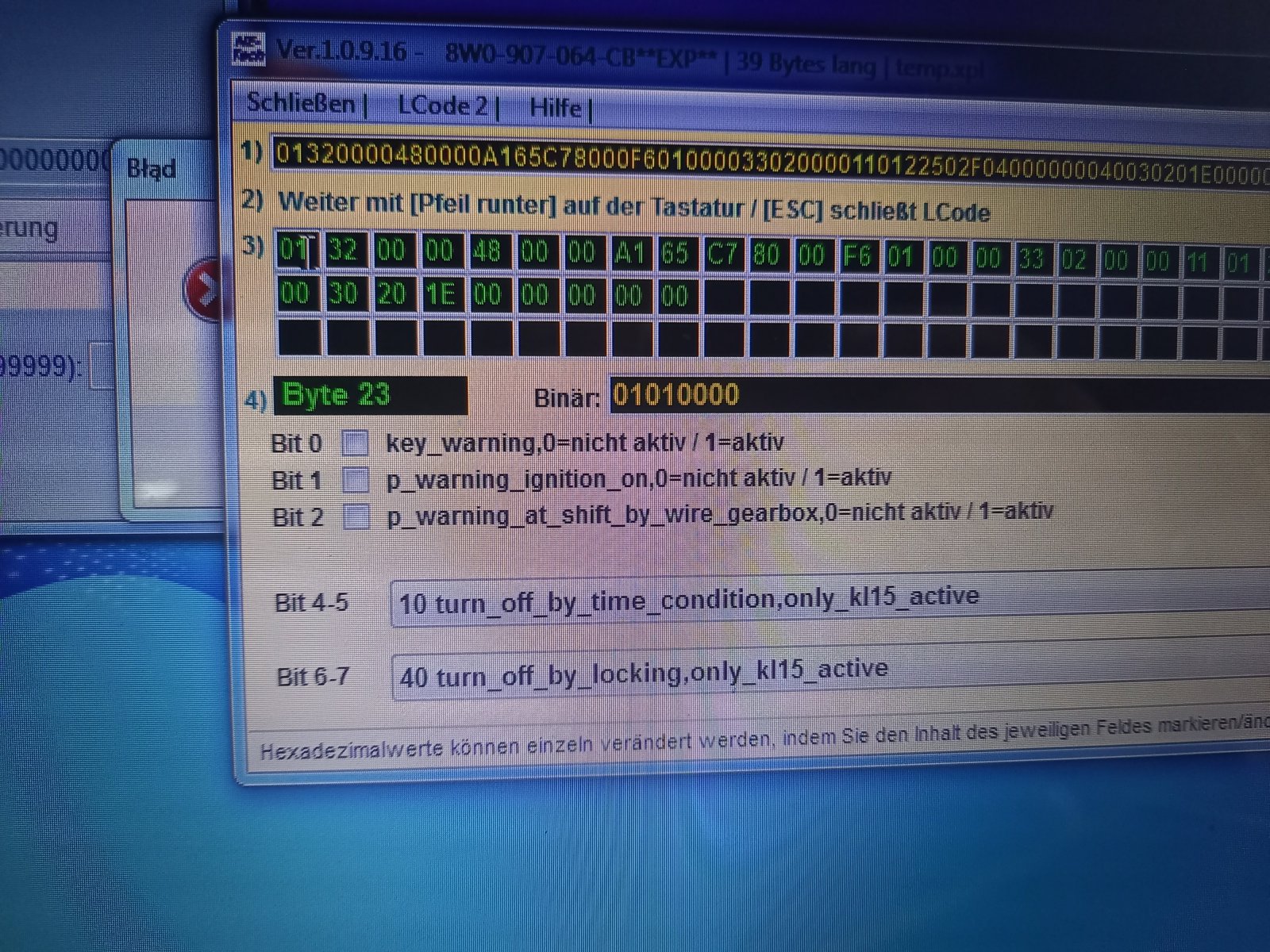

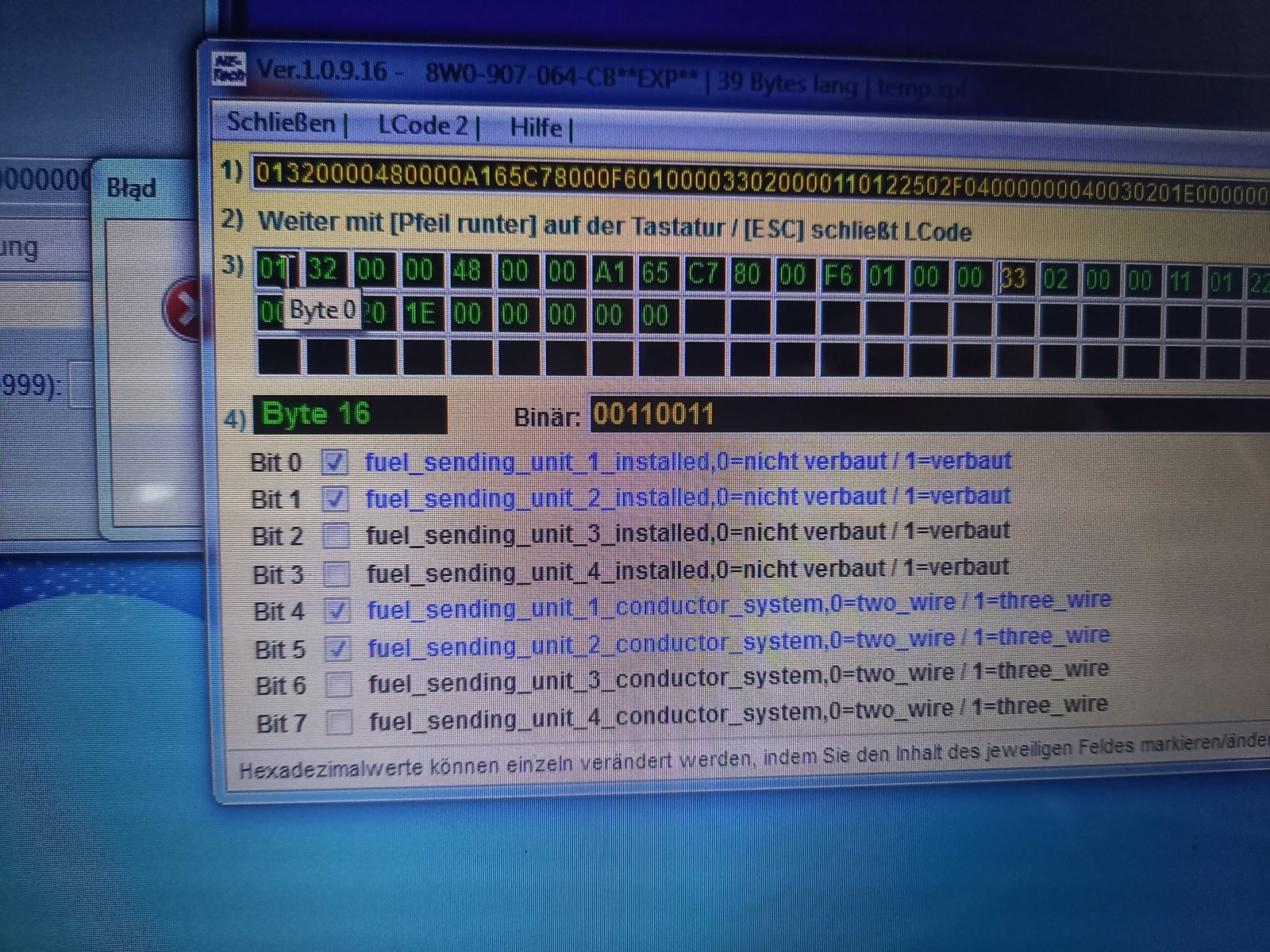

Nie nic tam nie robiłem.Ale rozwiązełem problem właśnie. Byte 0 Bit 2 musi być zaznaczony. Wszystko działa już prawidłowo ze światłami.

**Muskel1** · 10 Września 2021

6 minut temu, pawelpawel111 napisał:

Nie nic tam nie robiłem.Ale rozwiązełem problem właśnie.

Częściowo, bo samopoziomu dalej nie masz.

**pawelpawel111** · 10 Września 2021

A no właśnie że działa. zakleiłem czujnik światła. wiatła zapaliły się po czym odkleiłem taśmę,przeparkowałem auto i znowu zakleiłem.Same się wypoziomowały .Zrobiły ruch do góry i w dół.

**Muskel1** · 10 Września 2021

To dobrze.

**pawelpawel111** · 10 Września 2021

Friday,10,September,2021,15:50:45:63231
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 7 x86
VCDS Version: 21.9.0.2 HEX-V2 CB: 0.4555.4
Data version: 20210903 DS330.0
www.Ross-Tech.com

Chassis Type: F5-AU49 (4M1)
Scan: 01 02 03 06 08 09 15 16 17 19 29 36 39 42 44 46 52 5F 6C 81
A5 A9 CA D6 D7

VIN: WAUSNAF55JA004038 Mileage: 62741km-38985miles

01-Engine -- Status: OK 0000
02-Auto Trans -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
06-Seat Mem. Pass -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: Malfunction 0010
15-Airbags -- Status: OK 0000
16-Steering wheel -- Status: OK 0000
17-Instruments -- Status: Malfunction 0010
19-CAN Gateway -- Status: OK 0000
29-Left Light -- Status: OK 0000
36-Seat Mem. Drvr -- Status: OK 0000
39-Right Light -- Status: OK 0000
42-Door Elect, Driver -- Status: OK 0000
44-Steering Assist -- Status: OK 0000
46-Central Conv. -- Status: OK 0000
52-Door Elect, Pass. -- Status: OK 0000
5F-Information Electr. -- Status: OK 0000
6C-Back-up Cam. -- Status: OK 0000
81-Gear Shift -- Status: OK 0000
A5-Frt Sens. Drv. Assist -- Status: OK 0000
A9-Struct. Borne Sound -- Status: OK 0000
CA-Sunroof -- Status: OK 0000
D6-Light Ctrl Left 2 -- Status: Malfunction 0010
D7-Light Ctrl Right 2 -- Status: Malfunction 0010
-------------------------------------------------------------------------------
Address 01: Engine (J623-CYMC) Labels:. 06K-907-425-V2.clb
Part No SW: 8W0 906 259 J HW: 06L 907 425 C
Component: 2.0l R4 TFSI H15 0002
Revision: --H15--- CVN: 94407C3A
Coding: 1A2500122326010E34000000000000000000000000000000
Shop #: WSC 06314 790 00001
ASAM Dataset: EV_ECM20TFS0208W0906259J 001003
ROD: EV_ECM20TFS0208W0906259J.rod
VCID: 48C8A6A5423C94BB2F1-801C
VINID: 9D196379158515A44000400320747E8C55

No fault code found.
Readiness: 0000 0000

-------------------------------------------------------------------------------
Address 02: Auto Trans (J217) Labels:| 0CJ-927-156.clb
Part No SW: 8W1 927 155 B HW: 0CJ 927 156
Component: 0CL 20TFSINAR H03 0004
Revision: --H03--- Serial number: 0000002108 CVN: 6630E97F
Coding: 000001
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_TCMDL382021 002024
ROD: EV_TCMDL382021_AU49.rod
VCID: 3FDABD7917F2D3039EB-806A

MTF pump:
Subsystem 1 - Part No SW: 0CK 927 152 AA HW: 0CK 321 281 K
Component: V553 MTFP 002 0572
Serial number: 75117071170024000354

No fault code found.

-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104) Labels: 8W0-907-379-PLU-V1.clb
Part No SW: 8W0 907 379 G HW: 8W0 907 379 J
Component: ESP9 Plus H06 0719
CVN: B085950A
Coding: 18AA409A28A20A9A119E489400854292E6259218021450881200424967A449
Shop #: WSC 06324 790 00001
ASAM Dataset: EV_ESP9BOSCHCMP 001001
ROD: EV_ESP9BOSCHCMP_001.rod
VCID: 49CEA3A159366DB330F-801C

No fault code found.

-------------------------------------------------------------------------------
Address 06: Seat Mem. Pass (J521) Labels:* None
Part No SW: 4M0 959 760 A HW: 4M0 959 760 A
Component: MEM-BFS 008 0031
Serial number: 00000242216055
Coding: 001610040004B0010003010101012100000000000000000000000000800000
Shop #: WSC 06325 790 00001
ASAM Dataset: EV_SCMPasseSideCONTIAU736 006009
ROD: EV_SCMPasseSideCONTIAU736_AU37.rod
VCID: 3634D85D38C8124B4DD-8062

No fault code found.

-------------------------------------------------------------------------------
Address 08: Auto HVAC (E87) Labels:* Redir Fail!
Part No SW: 8W0 820 043 G HW: 8W0 820 043 G
Component: Klima Zone 3 H32 0090
Coding: 440805085544000D10000100880000000000000000000000000000000000
Shop #: WSC 06335 790 00001
ASAM Dataset: EV_AirCondiBHTCAU491 001013
ROD: EV_AirCondiBHTCAU491.rod
VCID: 372AD5593FC2EB4356B-8062

Fresh air blower control module (front):
Subsystem 1 - Part No SW: 4M1 820 021 A HW: 4M1 820 021 A
Component: J216 FLuftV H08 0003
Serial number: 00000000000001313713

Humidity sensor: exterior:
Subsystem 2 - Part No SW: 4H0 907 658 A HW: 4H0 907 658 A
Component: AQ_Hum_Sensor H01 0006
Serial number: D839429880PAG0MUFU02

Rear A/C control head:
Subsystem 3 - Part No SW: 8W0 919 158 HW: 8W0 919 158
Component: E265 Kli Fond H40 0080

No fault code found.

-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519) Labels:* Redir Fail!
Part No SW: 8W0 907 063 CG HW: 8W0 907 063 BG
Component: BCM1 MLBevo H13 0267
Coding: 87500F4BE179003F2D158E1C182C10BB110B3D08000000000000000020001A810A440122025205
Shop #: WSC 50051 004 104857
ASAM Dataset: EV_BCM1BOSCHAU736 018006
ROD: EV_BCM1BOSCHAU736_018_AU49.rod
VCID: 025C748D24807EEBB15-8056

Wiper motor control module:
Subsystem 1 - Part No SW: 8W6 955 119 HW: 8W6 955 119 Labels: 1KX-955-119.CLB
Component: 494 LL 170127 036 0471
Serial number: 00000001701240304606
Coding: 5FC7F7

Rain/Light Recognition Sensor:
Subsystem 2 - Part No SW: 81A 955 555 A HW: 81A 955 555
Component: G397_RLFSS H06 0002
Serial number: 20256335X81A955555A0
Coding: 02005D

Light switch:
Subsystem 3 - Part No SW: 4M0 941 531 AA HW: 4M0 941 531 AA
Component: E1 - LDS H06 0008
Serial number: 14 04 2017 71040340

Garage door opener control module:
Subsystem 4 - Part No SW: 4M0 907 410 A HW: 4M0 907 410 A
Component: USHL5 H04 0050
Serial number: 0000009600335Z2TP702
Coding: 350000

Garage door opener control head:
Subsystem 5 - Part No SW: 4M0 959 719 A HW: 4M0 959 719 A
Component: GTO BF H01 0010
Serial number: 20170125093531 00276

Automatic dimming interior mirror:
Subsystem 6 - Part No SW: 8W0 857 511 B HW: 8W0 857 511 B
Component: Y7_Innenspieg H01 0002
Serial number: GX1CE118121612011406
Coding: 010000

Interior Light Module:
Subsystem 7 - Part No SW: 8W0 947 135 BH HW: 8W0 947 135
Component: J528-Dachele H14 0130
Serial number: B00245484

Control head for driving and comfort functions:
Subsystem 8 - Part No SW: 8W0 925 301 BC HW: 8W0 925 301 BC
Component: SL-B9/Q5NF H17 0010
Serial number: 2617000025094001
Coding: 000000

4 Faults Found:
65689 - Heated Seat Backrest; Front Left
B14E1 15 [009] - Open or Short to Plus
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 5
Fault Frequency: 1
Reset counter: 221
Mileage: 61855 km
Date: 2021.08.30
Time: 04:33:13

average_Voltage_terminals: 14.50 V
Outside air temperature sensor-Resistance: 0.00 kOhm
Outside air temperature sensor-Outside air temperature on CAN: 15.50 °C
interior_temperature: 16.50 °C
Vehicle speed: 0.00 km/h
Terminal activation-Terminal 75 status: On
Terminal activation-Terminal 15 status signal: On
Terminal activation-Terminal 15 via CAN: On
Terminal activation-Term 75: qualification: OFF

66657 - Local Databus 5
U1506 00 [009] - No Communications
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 4
Fault Frequency: 23
Reset counter: 237
Mileage: 62538 km
Date: 2021.09.08
Time: 15:42:46

average_Voltage_terminals: 11.80 V
Outside air temperature sensor-Resistance: 0.00 kOhm
Outside air temperature sensor-Outside air temperature on CAN: 30.00 °C
interior_temperature: 30.00 °C
Vehicle speed: 0.00 km/h
Terminal activation-Terminal 75 status: On
Terminal activation-Terminal 15 status signal: On
Terminal activation-Terminal 15 via CAN: On
Terminal activation-Term 75: qualification: OFF

66658 - Local Databus 6
U1507 00 [009] - No Communications
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 4
Fault Frequency: 23
Reset counter: 237
Mileage: 62538 km
Date: 2021.09.08
Time: 15:42:46

average_Voltage_terminals: 11.80 V
Outside air temperature sensor-Resistance: 0.00 kOhm
Outside air temperature sensor-Outside air temperature on CAN: 30.00 °C
interior_temperature: 30.00 °C
Vehicle speed: 0.00 km/h
Terminal activation-Terminal 75 status: On
Terminal activation-Terminal 15 status signal: On
Terminal activation-Terminal 15 via CAN: On
Terminal activation-Term 75: qualification: OFF

262146 - Control Module Incorrectly Coded
U1014 00 [009] - -
[ALM: control module incorrectly coded]
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 5
Fault Frequency: 1
Reset counter: 232
Mileage: 62538 km
Date: 2021.09.08
Time: 15:42:42

average_Voltage_terminals: 11.80 V
Outside air temperature sensor-Resistance: 0.00 kOhm
Outside air temperature sensor-Outside air temperature on CAN: 30.00 °C
interior_temperature: 30.00 °C
Vehicle speed: 0.00 km/h
Terminal activation-Terminal 75 status: On
Terminal activation-Terminal 15 status signal: On
Terminal activation-Terminal 15 via CAN: On
Terminal activation-Term 75: qualification: OFF

-------------------------------------------------------------------------------
Address 15: Airbags (J234) Labels:| 8W0-959-655.clb
Part No SW: 8W0 959 655 G HW: 8W0 959 655 G
Component: Airbag10.44 H05 0104
Serial number: 003UQ000DSDR
Coding: BFCCF0C000800000A0000033D20C00000000
Shop #: WSC 24627 003 1048576
ASAM Dataset: EV_AirbaAU10BPAAU736 005015
ROD: EV_AirbaAU10BPAAU736_005_AU49.rod
VCID: 4DC697B1AD5E71931C7-8018

Left seat belt tensioner:
Subsystem 1 - Part No SW: 4M0 980 945 B HW: 4M0 980 945 B
Component: BeltPretRevFL 306 2033
Serial number: 8W6857705C0044R00324
Coding: 80000D

Right seat belt tensioner:
Subsystem 2 - Part No SW: 4M0 980 946 B HW: 4M0 980 946 B
Component: BeltPretRevFR 306 2033
Serial number: 8W6857706C0042R00122
Coding: 80000D

Seat occupied recognition passenger side:
Subsystem 3 - Part No SW: 4M0 959 339 HW: 4M0 959 339
Component: BF-Gewichtss. H11 0022
Serial number: IBH0000J170006T08F02

Crash sensor for side airbag: driver side:
Subsystem 4 - Part No SW: ----------- HW: 442 062 501 17
Component: SideSensor_Df 1E2 0887
Serial number: 3577Y00A12066961E34W
Coding: 2D2D2D

Front Passenger's Side Airbag Crash Sensor:
Subsystem 5 - Part No SW: ----------- HW: 442 062 501 17
Component: SideSensor_Pf 1E2 0887
Serial number: 3587Y009D2066962E083
Coding: 2D2D2D

Rear Side Airbag Crash Sensor (on driver's side):
Subsystem 6 - Part No SW: ----------- HW: 442 0B0 102 17
Component: SideSensor_Dr 1C7 0148
Serial number: 3517700202A5193A866%
Coding: 2D2D2D

Passenger side rear thorax airbag crash sensor:
Subsystem 7 - Part No SW: ----------- HW: 442 0B0 102 17
Component: SideSensor_Pr 1C7 0148
Serial number: 3527700222A51937F633
Coding: 2D2D2D

Crash sensor for front airbag: driver side:
Subsystem 8 - Part No SW: ----------- HW: 442 0C1 202 17
Component: FrontSensor_D 1C5 014A
Serial number: 35575002029DD0B7089D
Coding: 2D2D2D

Crash sensor for front airbag: front passenger side:
Subsystem 9 - Part No SW: ----------- HW: 442 0C1 202 17
Component: FrontSensor_P 1C5 014A
Serial number: 35675002029DD0B7E86P
Coding: 2D2D2D

No fault code found.

-------------------------------------------------------------------------------
Address 16: Steering wheel (J527) Labels: 4M0-907-129.clb
Part No SW: 4M0 907 129 GB HW: 4M0 907 129 GB
Component: Lenks.Modul H11 0009
ASAM Dataset: EV_SMLSKLOAU736 006008
ROD: EV_SMLSKLOAU736_006.rod
VCID: 76B4185D7848524B8DD-8022

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments (J285) Labels:* None-SRI2
Part No SW: 8W6 920 870 HW: 8W6 920 870
Component: TBenUSA H08 0523
Coding: 00EF11C7208000080003E8601800000000000000
Shop #: WSC 06335 790 00001
ASAM Dataset: EV_DashBoardAU736 001022
ROD: EV_DashBoardAU736_AU49.rod
VCID: 7F5AFD7957721303DEB-802A

1 Fault Found:
16777024 - No Communication with Diagnostic Gateway
U0146 00 [008] - -
[BCME_0x23 communication error bap_error_timeout heartbeat]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 7
Reset counter: 22
Mileage: 61817 km
Date: 2021.08.28
Time: 14:55:52

-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels:* None
Part No SW: 4M1 907 468 D HW: 4M1 907 468 A
Component: Gateway H16 0107
Revision: 4V010003 Serial number: 0344V000A17201
Coding: 030100010000064029070000005900106C100007000000000100000000000000
Shop #: WSC 06335 790 00001
GVL: 01503C100000000040BC08000002C80010080000000000000000000000000000
ASAM Dataset: EV_GatewCONTIAU736 002040
ROD: EV_GatewCONTIAU736_002_AU49.rod
VCID: 3828D66532DCE43B5F1-806C

Multifunction steering wheel control module:
Subsystem 1 - Part No SW: 8W0 951 523 F HW: 8W0 951 523 F
Component: J453 MFL H04 0004
Serial number: 20180910093339 21384

Battery Monitoring Control Module:
Subsystem 2 - Part No SW: 8S0 915 181 C HW: 8S0 915 181 C
Component: J367-BDMHella H10 9070
Serial number: 9672992504

No fault code found.

-------------------------------------------------------------------------------
Address 29: Left Light (J1018) Labels: 4M0-907-397.clb
Part No SW: 4M0 907 397 AC HW: 4M0 907 397 C
Component: LCM_MLBevoH05 0024
ASAM Dataset: EV_LCMLeftHELLAAU736 001012
ROD: EV_LCMLeftHELLAAU736_VW48.rod
VCID: 78A81665725C243B9F1-802C

No fault code found.

-------------------------------------------------------------------------------
Address 36: Seat Mem. Drvr (J136) Labels:* None
Part No SW: 4M0 959 760 A HW: 4M0 959 760 A
Component: MEM-FS 008 0031
Serial number: 00000242218393
Coding: 004610040004B0010003010101012100000000000000000000000000800000
Shop #: WSC 06325 790 00001
ASAM Dataset: EV_SCMDriveSideCONTIAU736 006009
ROD: EV_SCMDriveSideCONTIAU736_AU37.rod
VCID: 3634D85D38C8124B4DD-8062

No fault code found.

-------------------------------------------------------------------------------
Address 39: Right Light (J1023) Labels: 4M0-907-397.clb
Part No SW: 4M0 907 397 AC HW: 4M0 907 397 C
Component: LCM_MLBevoH05 0024
ASAM Dataset: EV_LCMRightHELLAAU736 001012
ROD: EV_LCMLeftHELLAAU736_VW48.rod
VCID: 78A81665725C243B9F1-802C

No fault code found.

-------------------------------------------------------------------------------
Address 42: Door Elect, Driver (J386) Labels:* None
Part No SW: 4M0 959 793 E HW: 4M0 959 793 C
Component: TSG FS 009 0057
Serial number: 0000241791399
Coding: 001F4B42400010A500002480
Shop #: WSC 06325 790 00001
ASAM Dataset: EV_DCU2DriveSideMAXHCONT 001005
ROD: EV_DCU2DriveSideMAXHCONT_AU37.rod
VCID: 40D8BE856A0CACFBE71-8014

No fault code found.

-------------------------------------------------------------------------------
Address 44: Steering Assist (J500) Labels:* None
Part No SW: 8W0 909 144 G HW: 8W0 909 144 B
Component: EPS_MLBEVO_ZF H08 0409
Coding: 09000380008000
Shop #: WSC 06324 790 00001
ASAM Dataset: EV_EPSZFAU49X 003018
ROD: EV_EPSZFAU49X_003.rod
VCID: 41DEBB816106A5F3E8F-8014

No fault code found.

-------------------------------------------------------------------------------
Address 46: Central Conv. (J393) Labels:* None
Part No SW: 8W0 907 064 CB HW: 8W0 907 064 B
Component: BCM2 MLBevo 018 0344
Coding: 01320000480000A165C780006601000033020000110122502F04000000040030201E0000000000
Shop #: WSC 12345 219 12345
ASAM Dataset: EV_BCM2HellaAU736 012013
ROD: EV_BCM2HellaAU736_012_AU49.rod
VCID: 7EA4007D50781A0BD5D-802A

ID - sensor:
H40 0105
Coding: 000000

Alarm horn:
Subsystem 2 - Part No SW: 5Q0 951 605 A HW: 5Q0 951 605 A
Component: Sirene, DWA 005 0314
Serial number: 00000000000068433377

No fault code found.

-------------------------------------------------------------------------------
Address 52: Door Elect, Pass. (J387) Labels:* None
Part No SW: 4M0 959 792 E HW: 4M0 959 792 C
Component: TSG BFS 009 0057
Serial number: 0000241450578
Coding: 001F4B42400010A500002480
Shop #: WSC 06325 790 00001
ASAM Dataset: EV_DCU2PasseSideMAXHCONT 001005
ROD: EV_DCU2PasseSideMAXHCONT_AU37.rod
VCID: 3FDABD7917F2D3039EB-806A

No fault code found.

-------------------------------------------------------------------------------
Address 5F: Information Electr. (J794) Labels:* 8W0-035-MIB-HGS2.clb
Part No SW: 8W0 035 664 F HW: 8W0 035 664 A
Component: MU-HS--US 045 0192
Serial number:
Coding: 01940401FF0A000013110001061A00002F0034E401F001040E
Shop #: WSC 06335 790 00001
ASAM Dataset: EV_MUHigScl6C3DELP 001011
ROD: EV_MUHigScl6C3DELP.rod
VCID: 3D26C7711DFEC1138C7-8068

Data carrier:
Subsystem 1 - Part No SW: V03 959 802 LD HW: -----------
Component: ECE 2019 --- 0038
Serial number: --------------------

Multimedia System 1:
Subsystem 2 - Part No SW: 8W1 919 604 HW: 8W1 919 604
Component: DU Std AU49x H31 0160
Serial number: TPO00113011700720152

Multimedia system control head:
Subsystem 3 - Part No SW: 8W0 919 614 N HW: 8W0 919 614 N
Component: ControlUnit_B H22 0134
Serial number: APVAK129121600020321

1 Fault Found:
2562 - Navigation System
B126C F0 [008] - Navigation Database Faulty
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 1
Reset counter: 5
Mileage: 61817 km
Date: 2021.08.28
Time: 15:06:22

Voltage terminal 30: 12.2 V

-------------------------------------------------------------------------------
Address 6C: Back-up Cam. (J772) Labels:* Redir Fail!
Part No SW: 4M0 980 556 A HW: 4M0 980 556 A
Component: RVC Compact H12 0240
Coding: 0294040102002001400040
Shop #: WSC 06335 790 00001
ASAM Dataset: EV_CamSysRVRVCPANAMLBEv 005010
ROD: EV_CamSysRVRVCPANAMLBEv_005.rod
VCID: 3332E1492BBA07636A3-8066

No fault code found.

-------------------------------------------------------------------------------
Address 81: Gear Shift (J587) Labels: 4MX-713-041-81.clb
Part No SW: 8W1 713 041 J HW: 8W1 713 041 J
Component: GSM-LL H09 0073
Revision: 0L0D5012 Serial number: 20170211000398
ASAM Dataset: EV_GSMWaehlZFAU736 001016
ROD: EV_GSMWaehlZFAU736.rod
VCID: 3A2CCC6D0CD0F62BA95-806E

No fault code found.

-------------------------------------------------------------------------------
Address A5: Frt Sens. Drv. Assist (R242) Labels:* Redir Fail!
Part No SW: 8W6 907 217 HW: 8W6 907 217
Component: BVS H14 0042
Coding: 0404090400000203022000A0810000FC00F0C020C020
Shop #: WSC 06335 790 00001
ASAM Dataset: EV_BVSMLBevKOSTAAU736 002026
ROD: EV_BVSMLBevKOSTAAU736_AU49.rod
VCID: 7F5AFD7957721303DEB-802A

No fault code found.

-------------------------------------------------------------------------------
Address A9: Struct. Borne Sound (J869) Labels: 4H0-907-159.clb
Part No SW: 8W0 907 159 E HW: 4H0 907 159 A
Component: SAS-GEN 2 H07 0007
Serial number: 170131203164
ASAM Dataset: EV_SoundActuaGen2AU64X 003010
ROD: EV_SoundActuaGen2AU64X.rod
VCID: 43D2B1897B1AB7E3FA3-8016

No fault code found.

-------------------------------------------------------------------------------
Address CA: Sunroof (J245) Labels:| 4M0-907-594.clb
Part No SW: 4M0 907 594 J HW: 4M0 907 594
Component: SAD_STG_1 013 0005
Coding: 208000049401
Shop #: WSC 06335 790 00001
ASAM Dataset: EV_SunRoofCONTIAU736 006008
ROD: EV_SunRoofCONTIAU736_006.rod
VCID: 3D26C7711DFEC1138C7-8068

No fault code found.

-------------------------------------------------------------------------------
Address D6: Light Ctrl Left 2 (A31) Labels: 7PP-941-572.clb
Part No SW: 7PP 941 572 AC HW: 7PP 941 572 A
Component: LED1L H09 0008
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_LEDModLeftMELCOAU736 001004
ROD: EV_LEDModLeftMELCOAU736_VW37.rod
VCID: 176A35D95F02CB4376B-8042

3 Faults Found:
0065 - Supply voltage
U1011 00 [008] - Voltage too Low
[Voltage too low]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 4
Fault Frequency: 2
Reset counter: 10
Mileage: 62023 km
Date: 2021.09.01
Time: 15:16:29

Terminal 56b: 21.60 V
Terminal_56b_Textual: numerical value: no text
Terminal 56a: 0.10 V
Terminal_56a_Textual: numerical value: no text
Supply via vehicle elec. sys. ctrl. unit: 25.50 V
Terminal 15: 25.50 V
Daytime driving light supply: 25.50 V
Supply for logic: 25.50 V

0774 - Light Bulb for Low Beam
C1198 29 [008] - Signal Implausible
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 4
Fault Frequency: 102
Reset counter: 22
Mileage: 61843 km
Date: 2021.08.29
Time: 16:16:03

0272 - Databus
U1121 00 [008] - Missing Message
[can message LED_Soll_Fkt0 missing]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 1
Reset counter: 22
Mileage: 61843 km
Date: 2021.08.29
Time: 16:05:06

-------------------------------------------------------------------------------
Address D7: Light Ctrl Right 2 (A27) Labels: 7PP-941-572.clb
Part No SW: 7PP 941 572 AC HW: 7PP 941 572 A
Component: LED1R H09 0008
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_LEDModRightMELCOAU736 001004
ROD: EV_LEDModLeftMELCOAU736_VW37.rod
VCID: 176A35D95F02CB4376B-8042

3 Faults Found:
0065 - Supply voltage
U1011 00 [008] - Voltage too Low
[Voltage too low]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 4
Fault Frequency: 2
Reset counter: 10
Mileage: 62023 km
Date: 2021.09.01
Time: 15:16:29

Terminal 56b: 21.50 V
Terminal_56b_Textual: numerical value: no text
Terminal 56a: 0.10 V
Terminal_56a_Textual: numerical value: no text
Supply via vehicle elec. sys. ctrl. unit: 25.50 V
Terminal 15: 25.50 V
Daytime driving light supply: 25.50 V
Supply for logic: 25.50 V

0774 - Light Bulb for Low Beam
C1198 29 [008] - Signal Implausible
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 4
Fault Frequency: 20
Reset counter: 22
Mileage: 62741 km
Date: 2021.09.10
Time: 14:40:32

0272 - Databus
U1121 00 [008] - Missing Message
[can message LED_Soll_Fkt0 missing]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 1
Reset counter: 22
Mileage: 61843 km
Date: 2021.08.29
Time: 16:05:06

End----------(Elapsed Time: 01:51, VBatt start/end: 14.5V/14.4V)-----------

**pawelpawel111** · 10 Września 2021

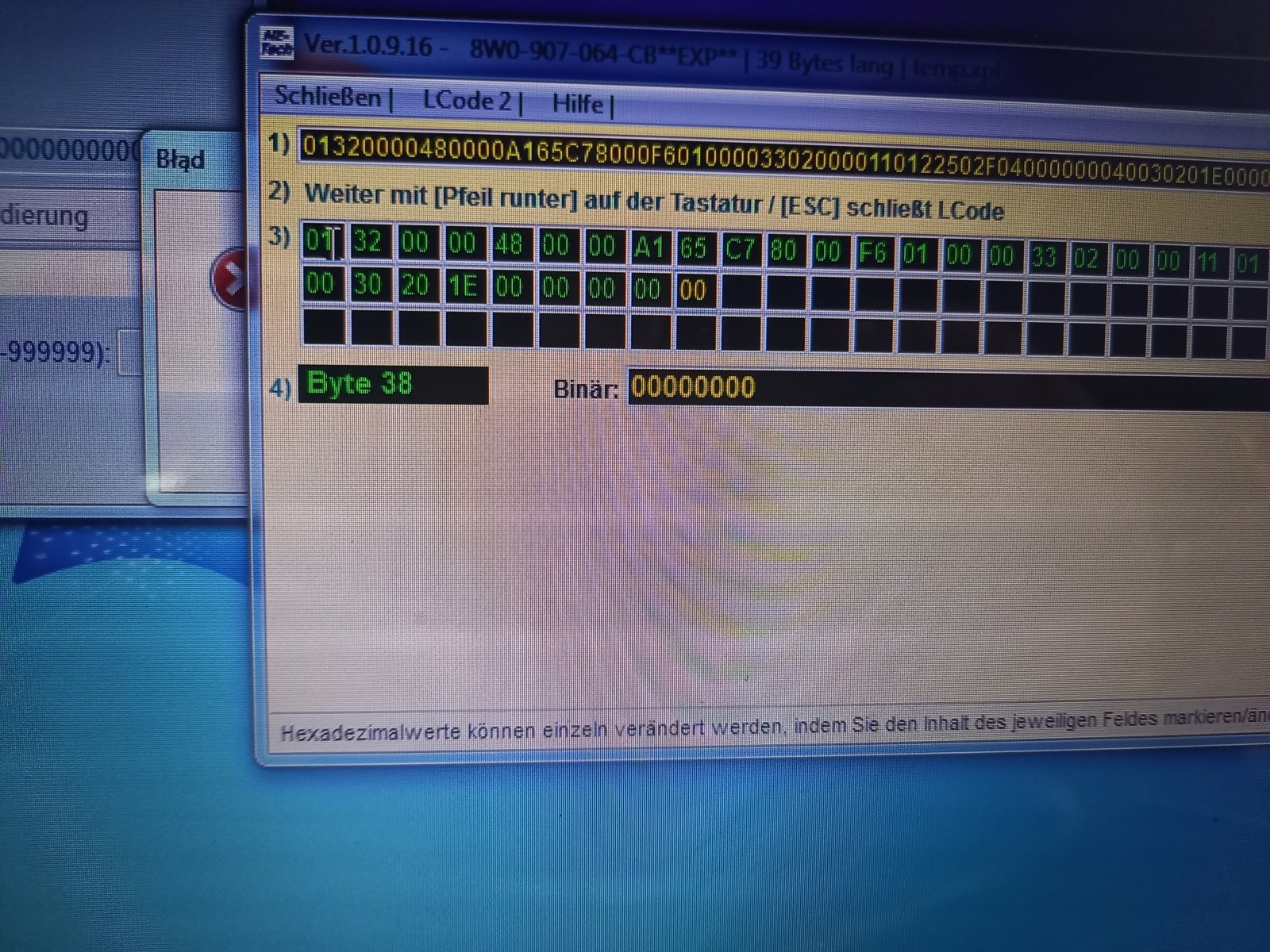

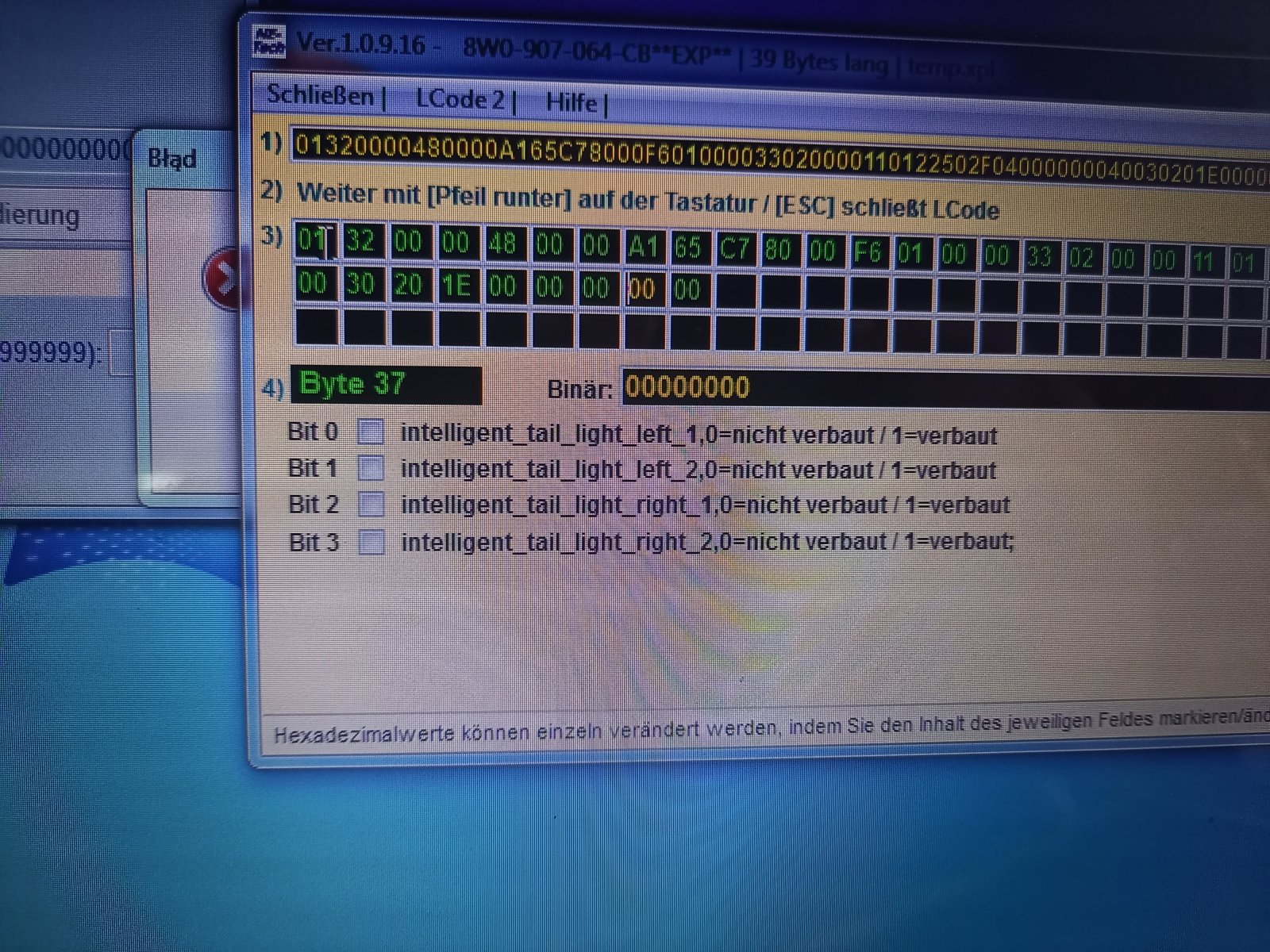

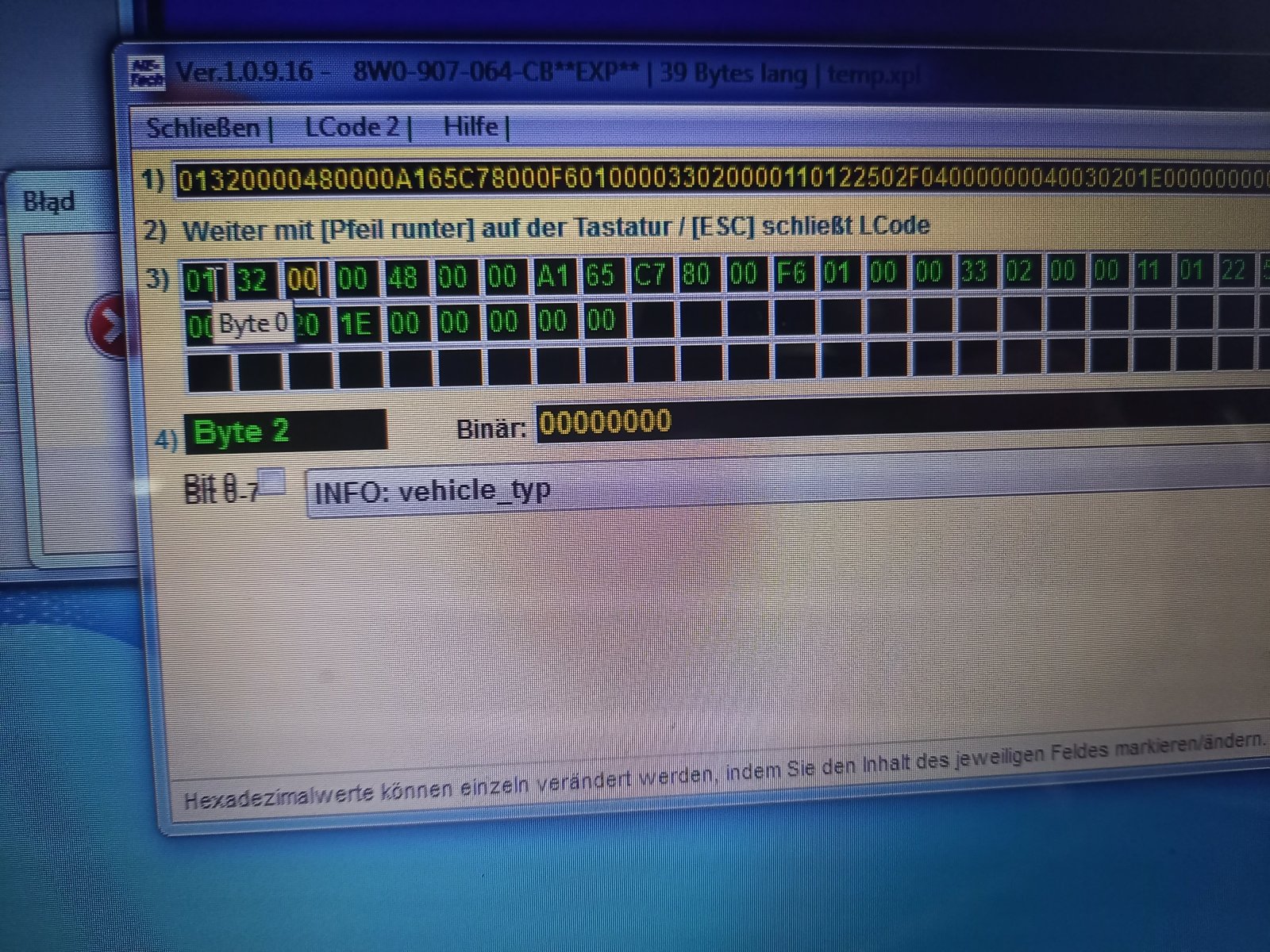

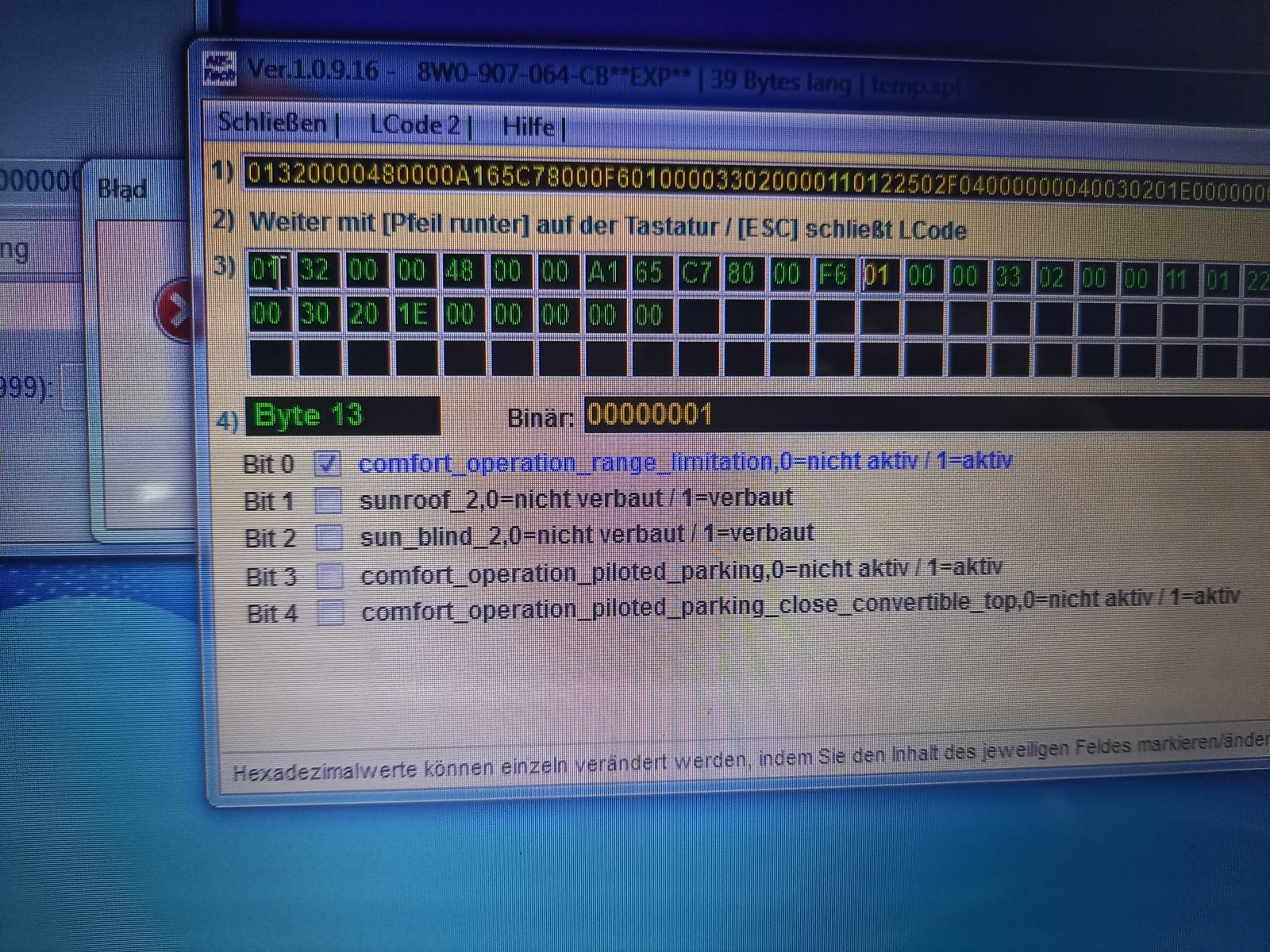

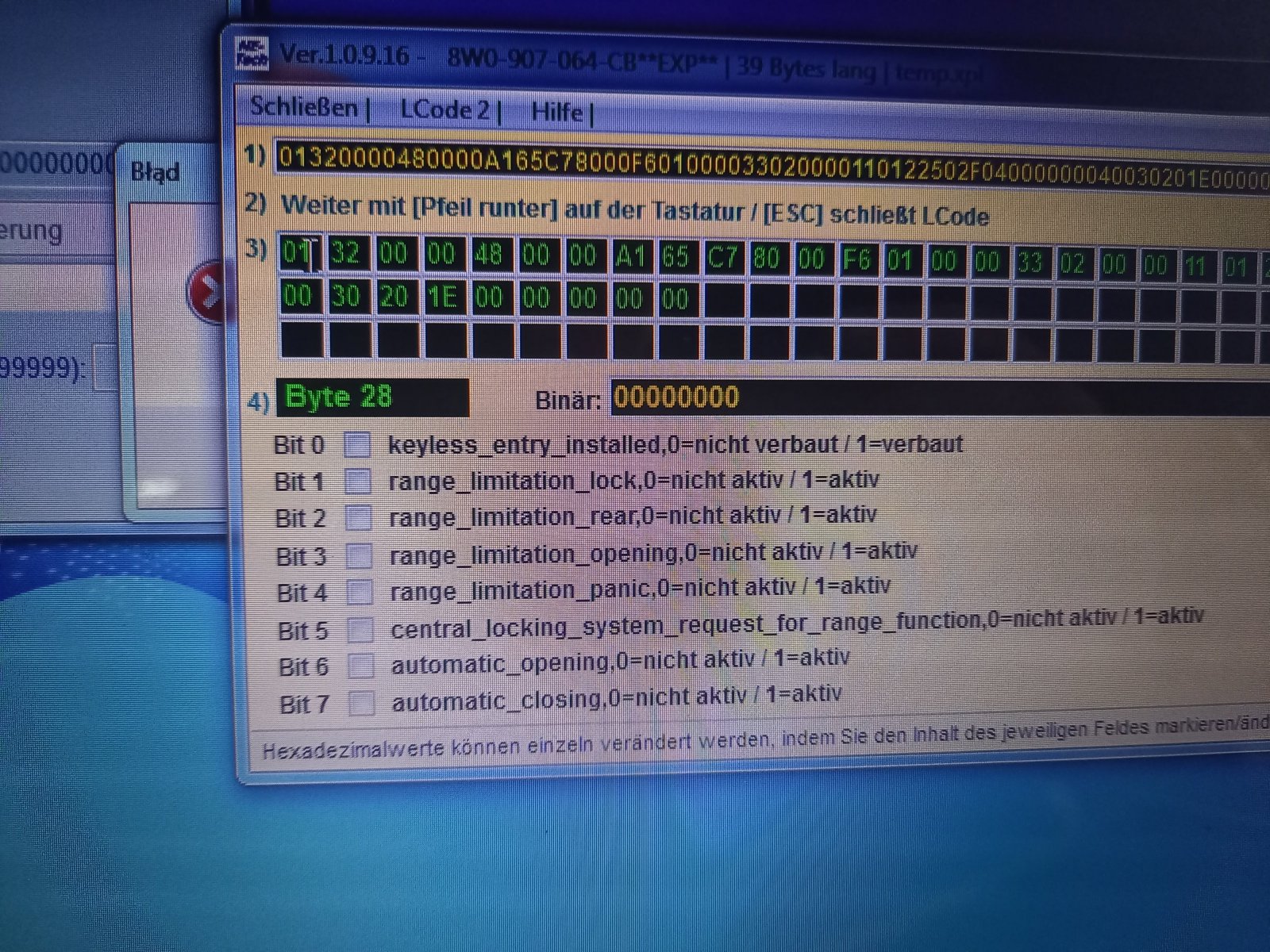

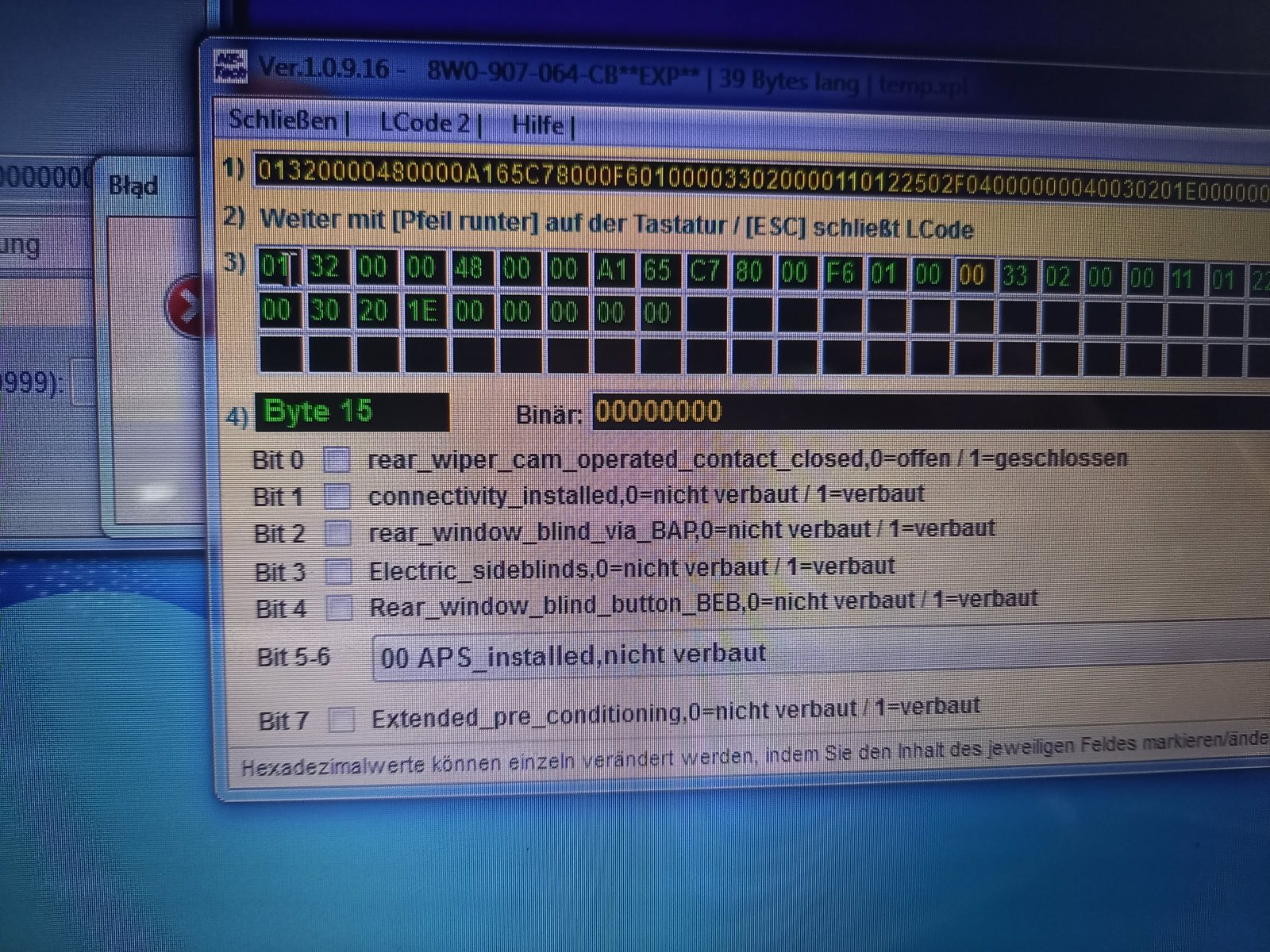

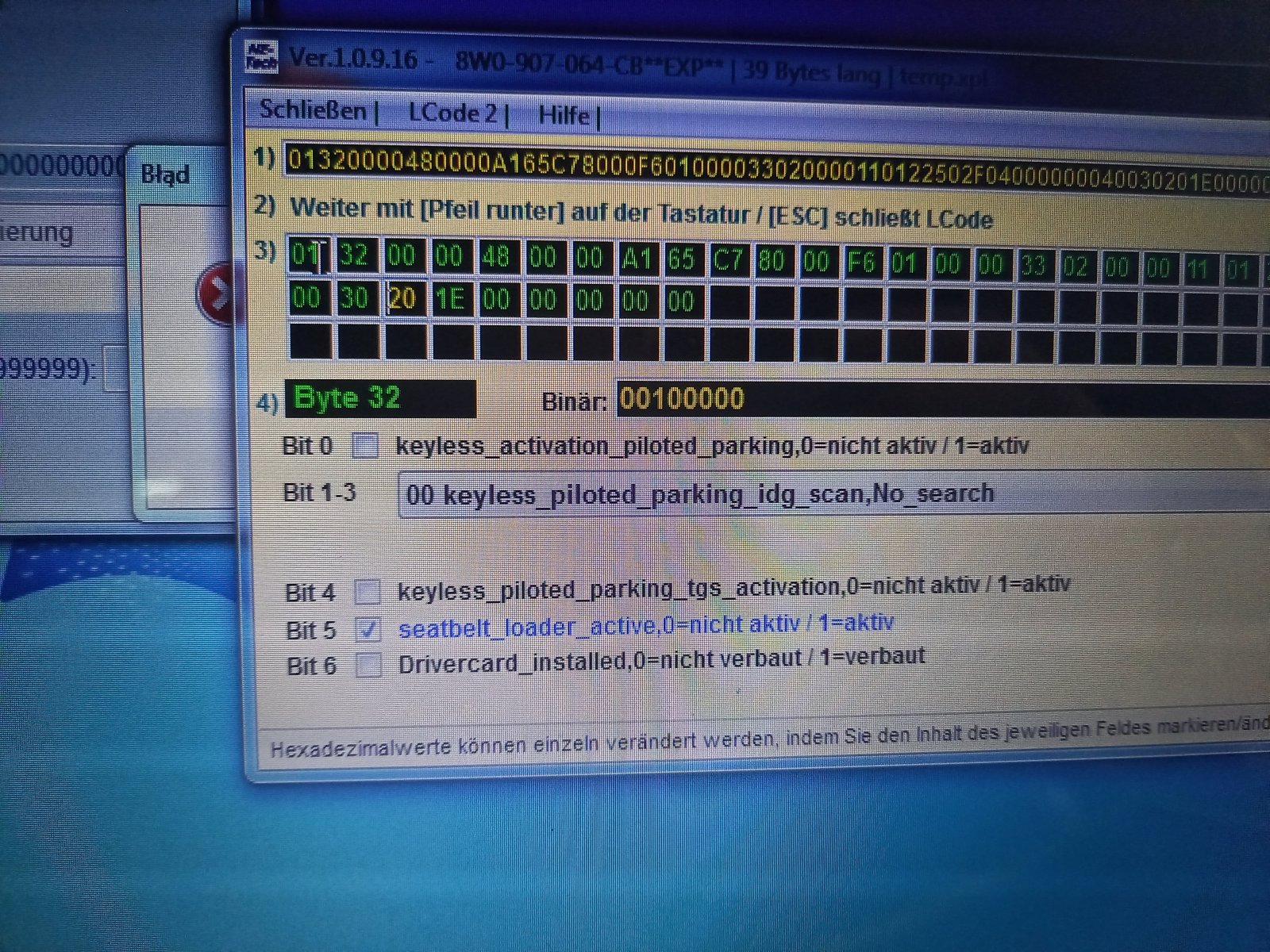

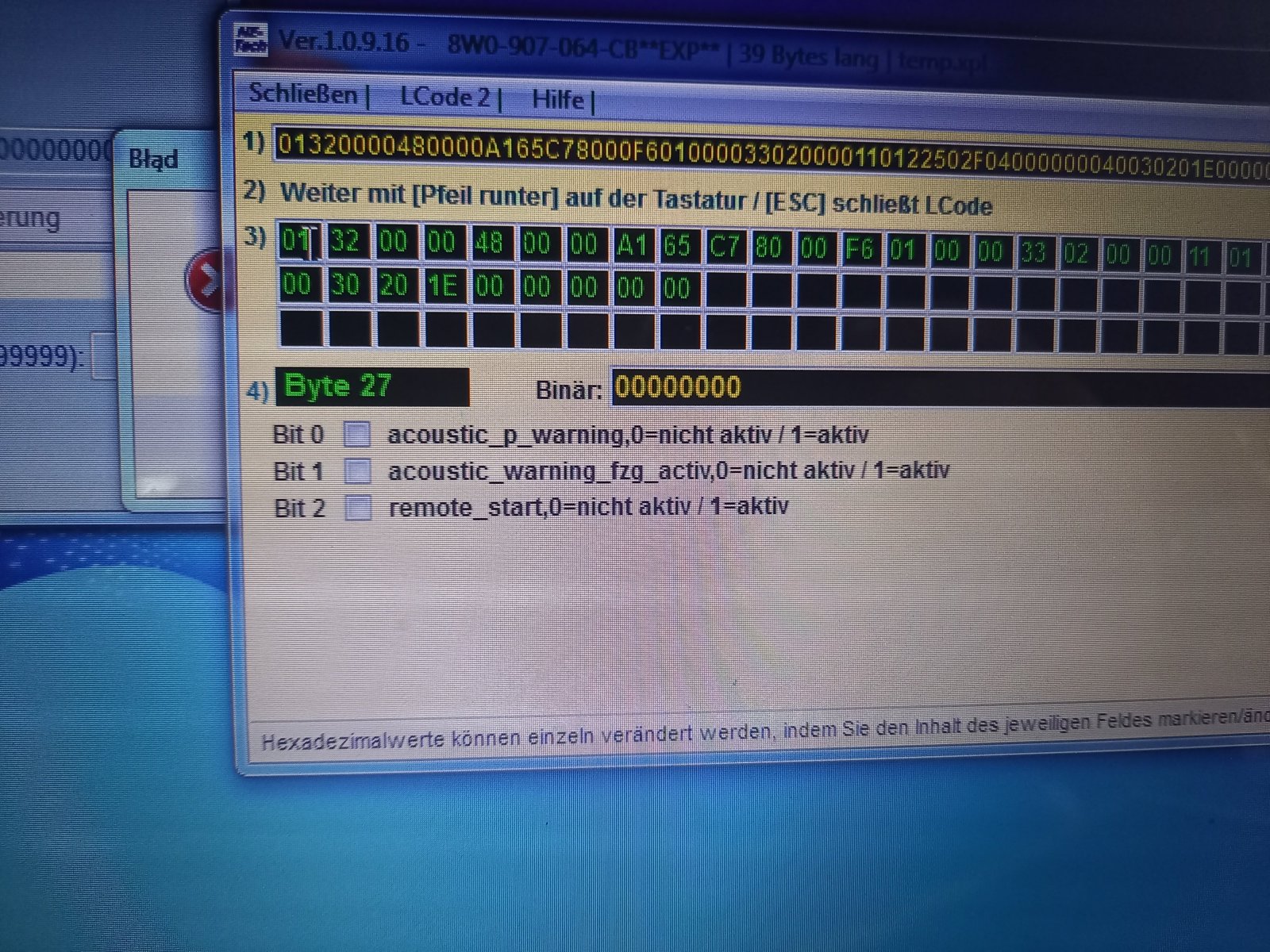

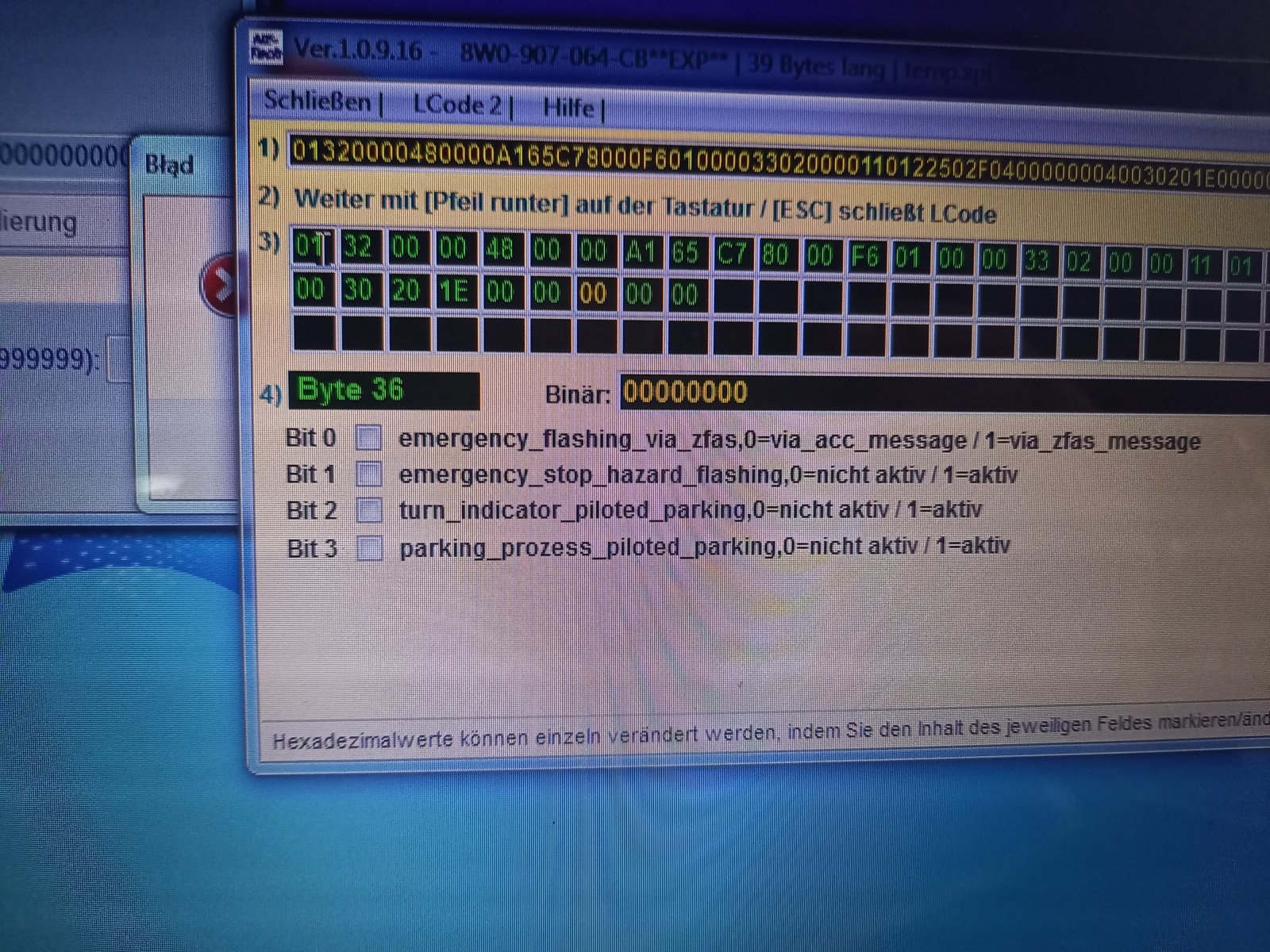

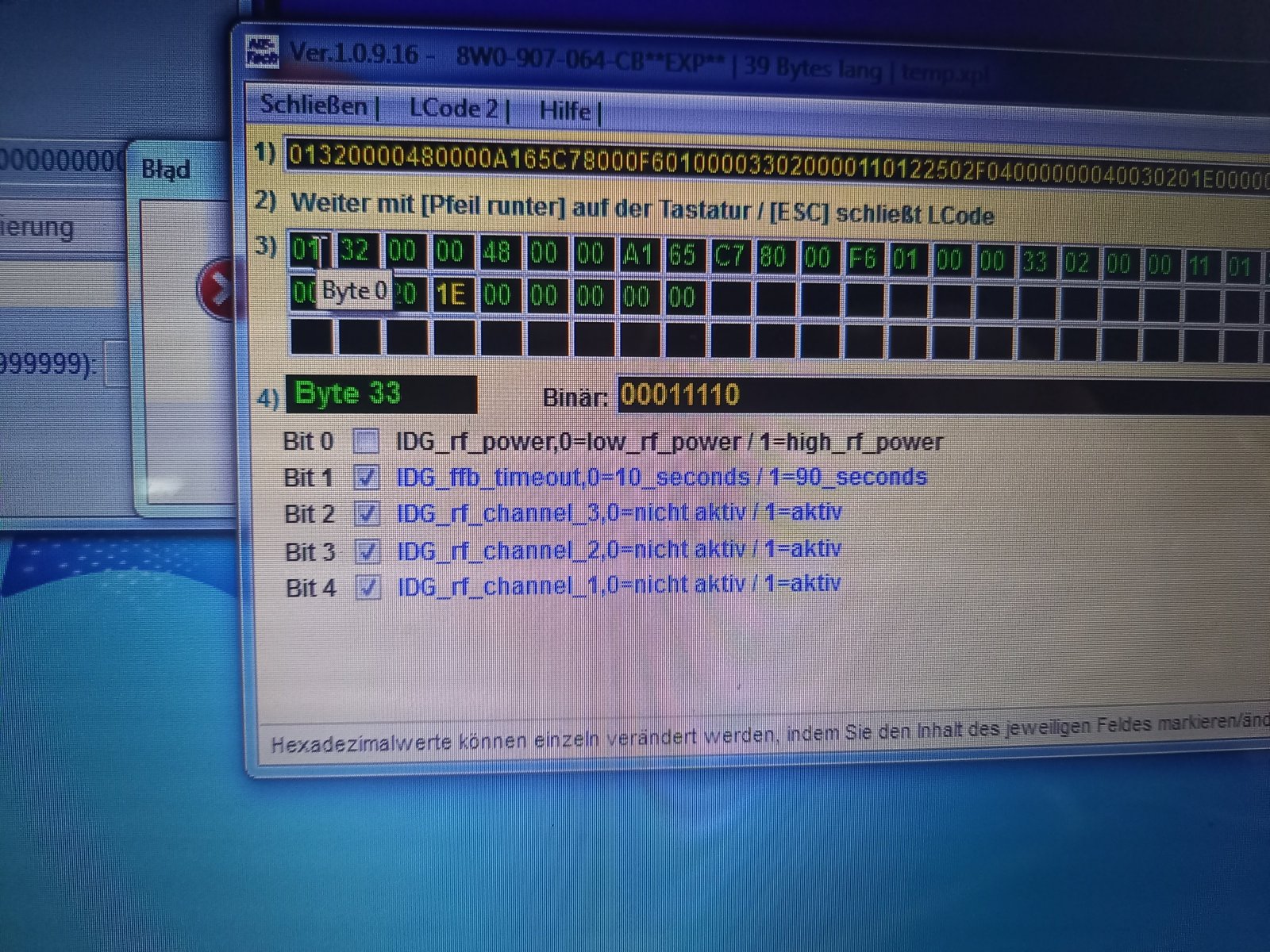

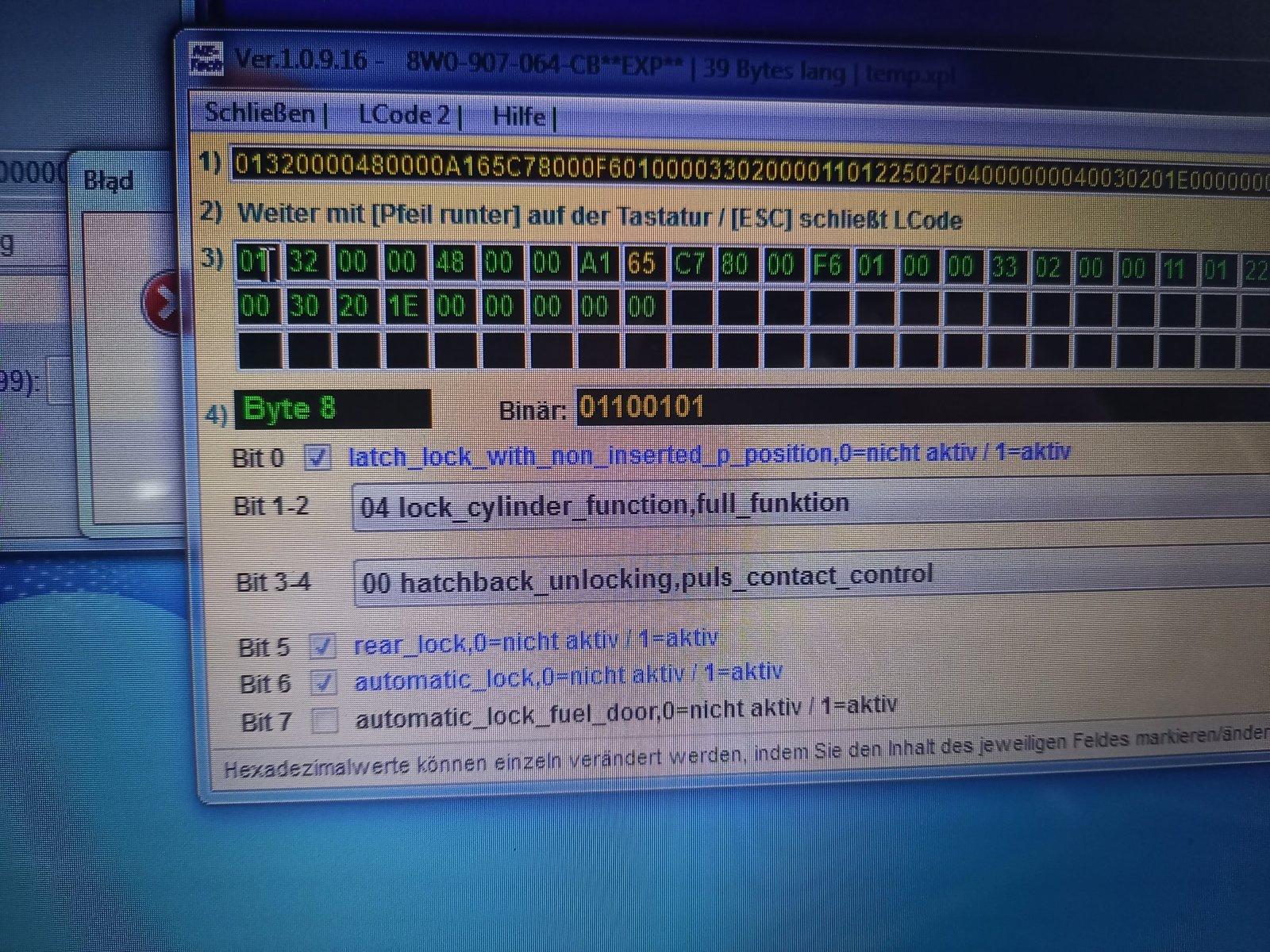

Fotki z modułu 46

**pawelpawel111** · 10 Września 2021

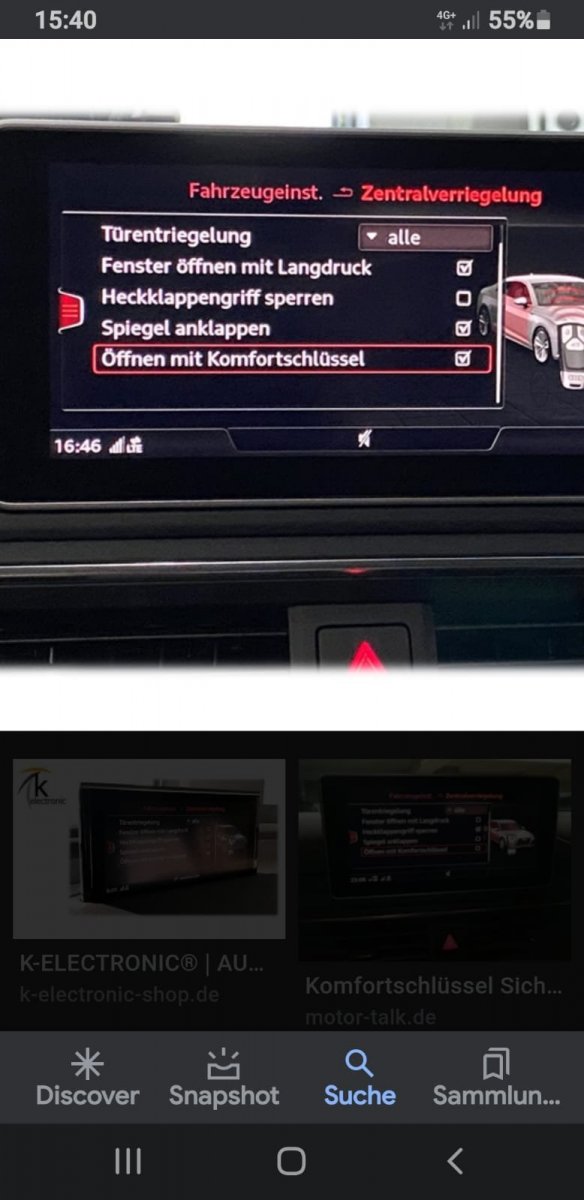

W mmi brakuje mi jednej pozycji. Tej ostatniej na zdjęciu. Pozycja druga z fotki jest u mnie zaznaczona ale nie wiem do czego ona się dokładnie odnosi.

**Muskel1** · 10 Września 2021

Fenster öffnen mit Langdruck- otwarcie szyb długim trzymaniem przycisku (pilota)

Öffnen mit Komfortschlüssel dotyczy funkcji otwierania keyless entry, czyli po dotyku klamki.

**pawelpawel111** · 10 Września 2021

No ale z pilotów nic się nie otwiera. A szyby sa skalibrowane. W pomocniku kodowań nic nie widzę.W adaptacjach wszystko jest na ON.

**pawelpawel111** · 10 Września 2021

Po włożeniu kluczyka do drzwi ,przekręceniu i przytrzymaniu szyby się domykaja albo otwierają.Tylko z pilotów funkcja nie działa.

**Muskel1** · 10 Września 2021

Jesteś pewny że końcowe pozycje szyb są przyuczone?

**pawelpawel111** · 10 Września 2021

Jeżeli tylko lekko naciśne zamykanie szyby to sama jedzie do góry do końca.Z otwieraniem to samo. Obie szyby identycznie.

**Muskel1** · 10 Września 2021

Czyli wygląda na to, że są przyuczone ale możesz jeszcze raz dla pewności przyuczyć.

Zaloguj się

BCM 09 A4 B9

Rekomendowane odpowiedzi

pawelpawel111

Muskel1

pawelpawel111

pawelpawel111

Muskel1

Muskel1

Muskel1

pawelpawel111

Muskel1

pawelpawel111

Muskel1

pawelpawel111

pawelpawel111

pawelpawel111

Muskel1

pawelpawel111

pawelpawel111

Muskel1

pawelpawel111

Muskel1

Jeśli chcesz dodać odpowiedź, zaloguj się lub zarejestruj nowe konto

Zarejestruj nowe konto

Zaloguj się

Ostatnio przeglądający 0 użytkowników

Tematy

Ogłoszenia

Cała aktywność
